Miele CM6 - Front Panel Removal; Display;Control Electronic Removal

Technical Information
45
CM6

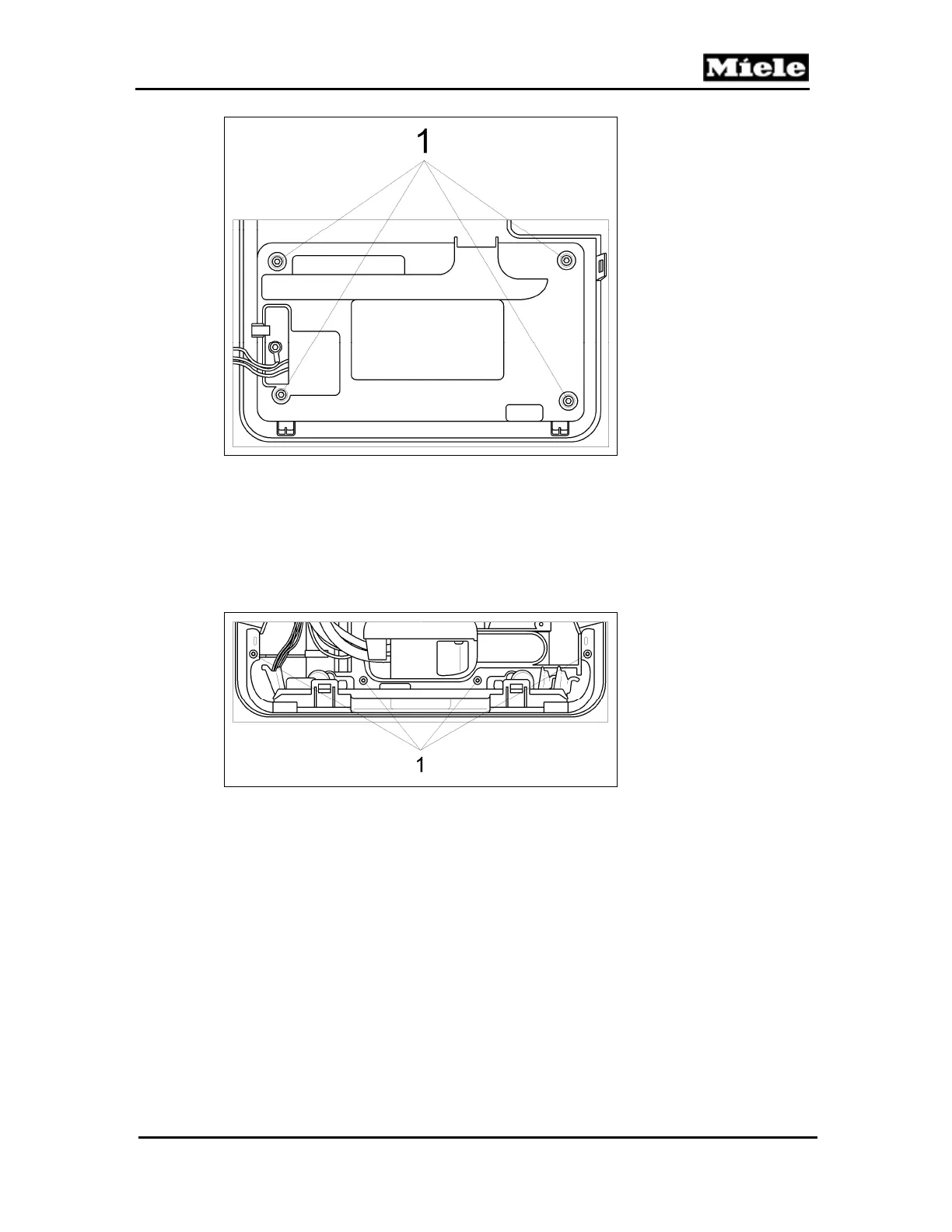

Figure 001-28: Cup Warmer Screws
3. Separate the cup warmer from the top cover.
4.8 Front Panel Removal
1. Remove the top cover; see Section 001-4.5.
2. Remove the 4 T10 screws securing the inside of the front panel (Figure 001-29,
Item 1).
Figure 001-29: Front Panel Screws
3. Lift the front panel up and disconnect the wiring harness from the display/control
electronic.
4. Take off the front panel.
4.9 EPB Display/Control Electronic (N1-2) Removal
1. Remove the top cover; see Section 001-4.5
2. Remove the front panel; see Section 001-4.8.
3. Release and remove the display/control electronic cover (Figure 001-30, Item 1).
