Technical Information
41
KF 18xx/19xx

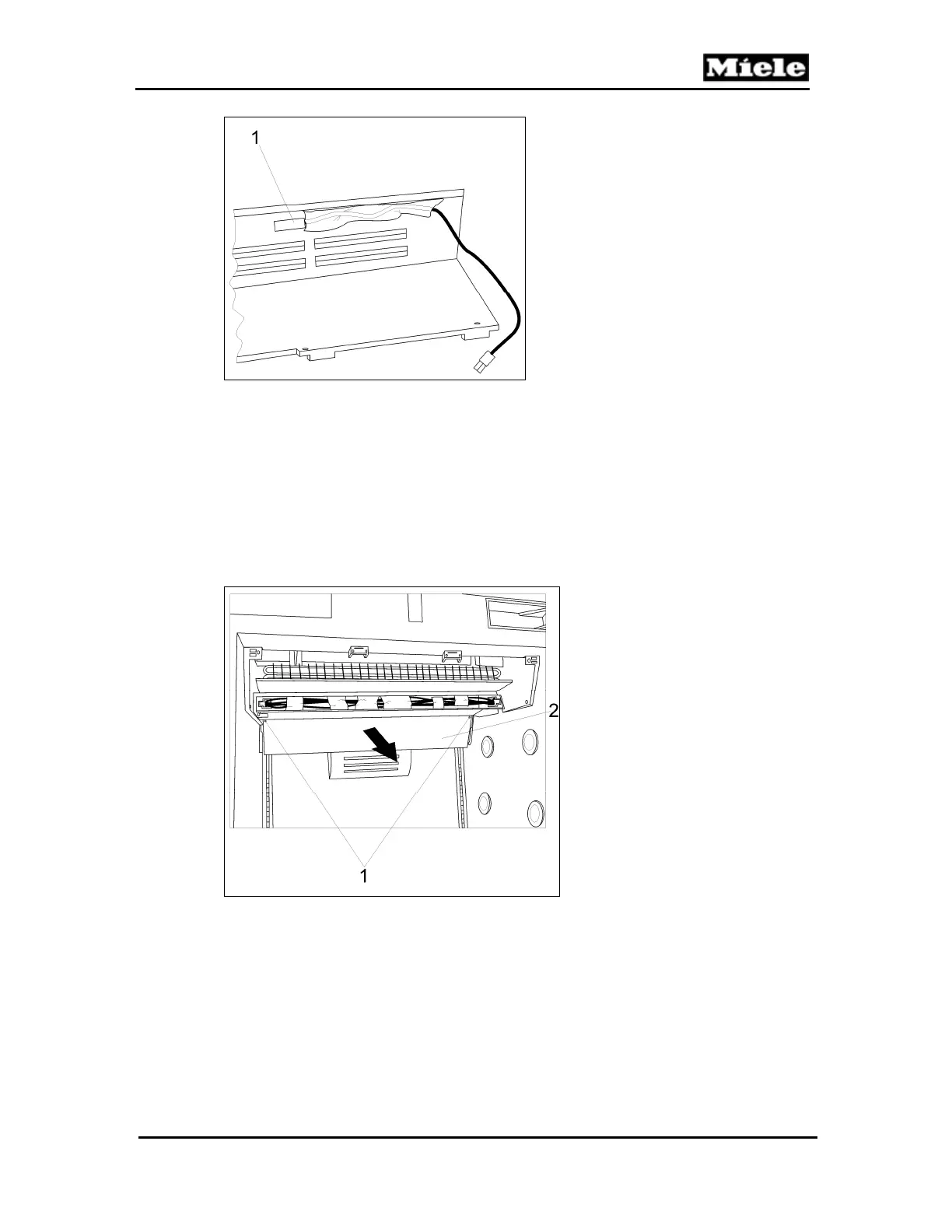

Figure 030-22: NTC R30/1 Removal
4.8 Removing the Refrigerator Lighting Assembly
1. Disconnect the appliance from the power supply.
2. Remove the refrigerator evaporator cover. See Section 030-4.6.
3. Disconnect the NTC connection.
4. Remove the Styrofoam insulation.
5. Remove the screws securing the cover. See Figure 030-23, Item 1.
6. Remove the cover. See Figure 030-23, Item 2.
7. Disconnect the lighting assembly connection.
Figure 030-23: Lighting Assembly Cover and Screws
8. Remove the screws securing the retainers. See Figure 030-24, Item 1.
