Technical Information

KF 18xx/19xx

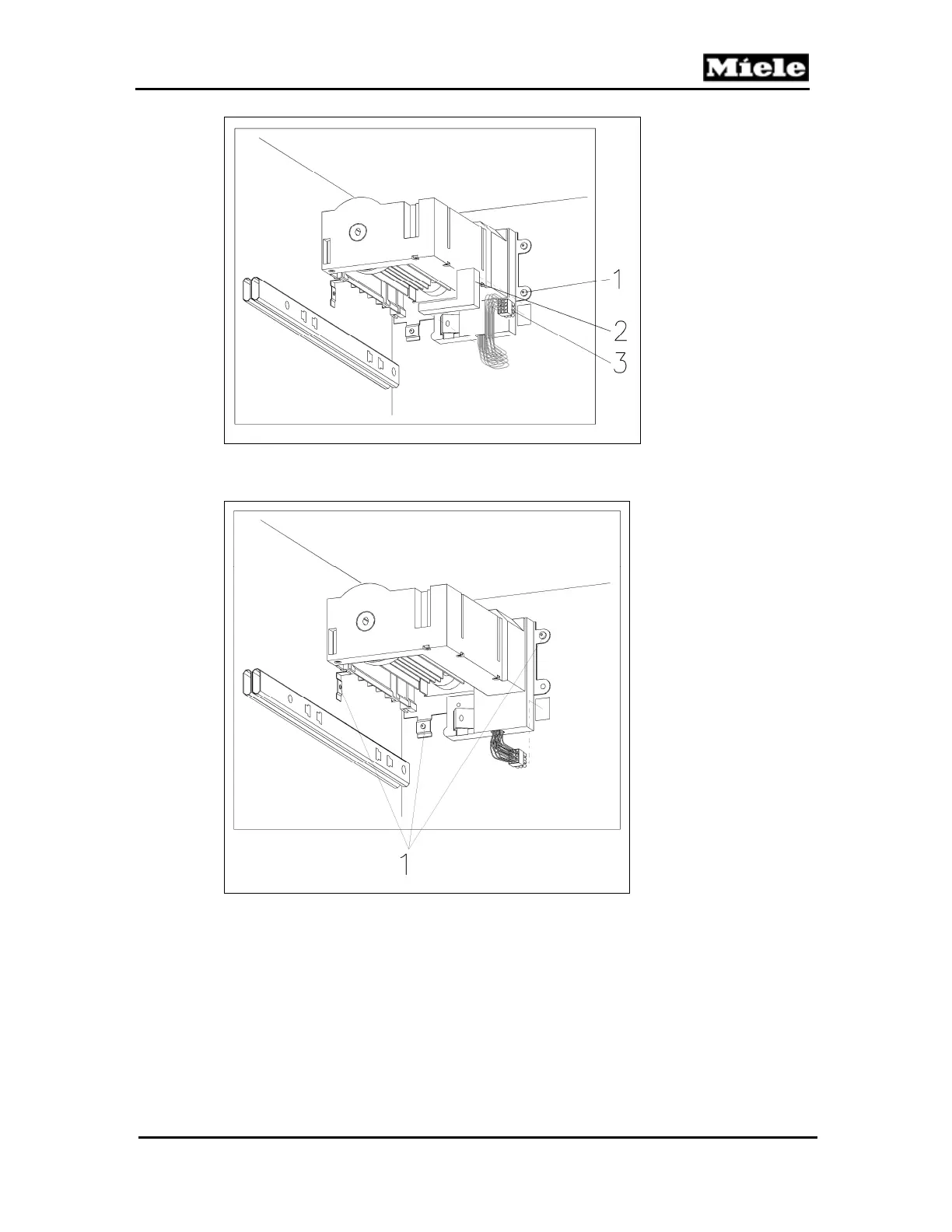

Figure 032-9: Icemaker Wiring Harness

11. Remove the icemaker retaining screws. See Figure 032-10, Item 1.

Figure 032-10: Icemaker Retaining Screws

12. Take out the icemaker.

4.3 Disconnecting the Water Line

1. Shut off the water supply before disconnecting the water line. The

water connection is located at the front of the appliance behind the lower

black toekick. See Figures 032-11 and 032-12.

Table of Contents2
