KF 18xx/19xx

4.18 Air Flap Control Check

1. Unclip the cover caps. See Figure 030-39, Item 1.

2. Remove the retaining screws. See Figure 030-39, Item 2.

3. Take off the housing.

4. Activate the air flap in service mode and check positioning with a mirror.

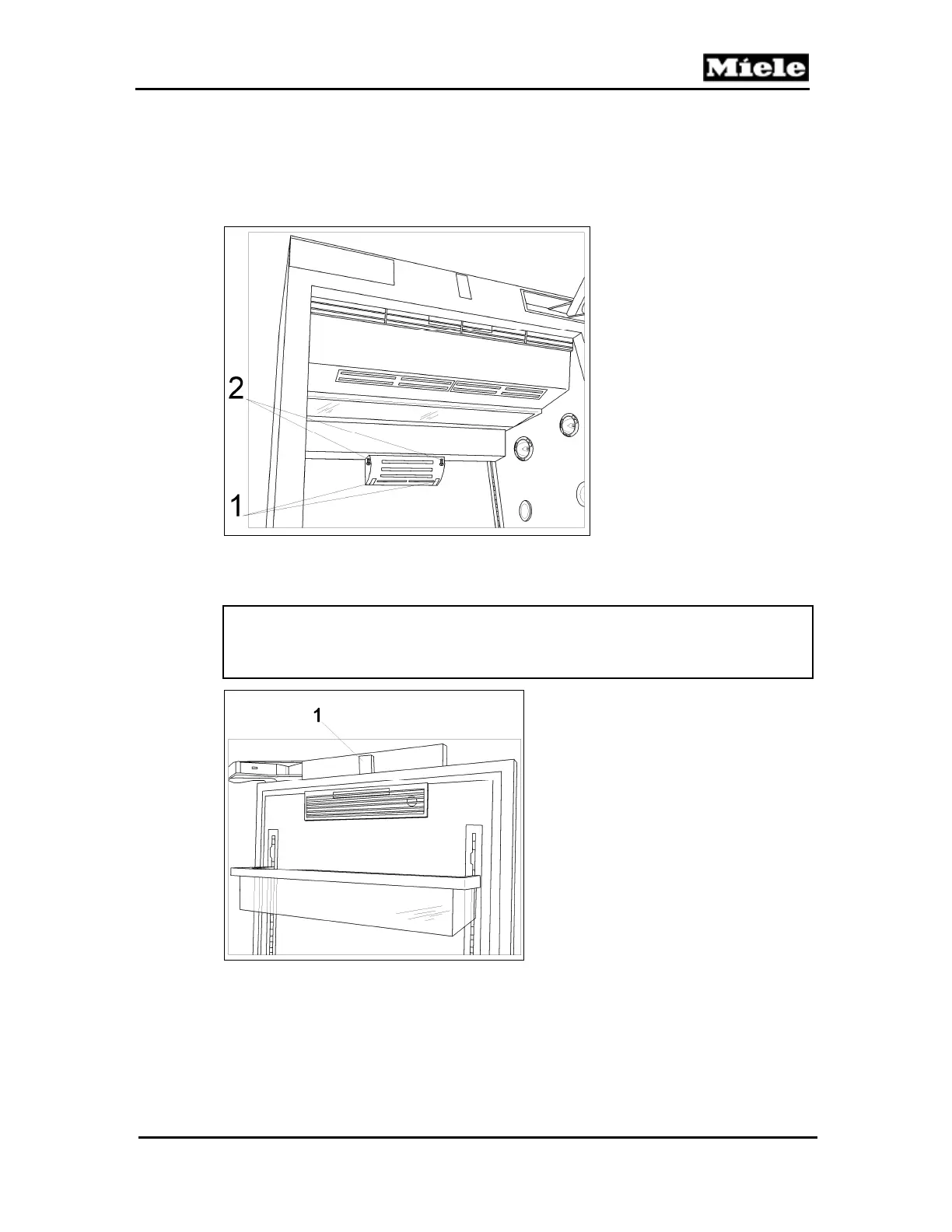

Figure 030-39: Cover Caps and Retaining Screws of Air Flap Housing

4.19 Refrigerator Door Switch (S4/1) Removal

Note:

The magnet to activate the reed switch is located on the appliance door,

behind a cover. See Figure 030-40, Item 1.

Figure 030-40: Reed Switch Magnet

1. Disconnect the appliance from the power supply.

2. Lever off the cover with the lid opener. See Figure 030-41, Item 1.

3. Carefully remove the reed switch module. See Figure 030-41, Item 2.
