Technical Information
47
KF 18xx/19xx

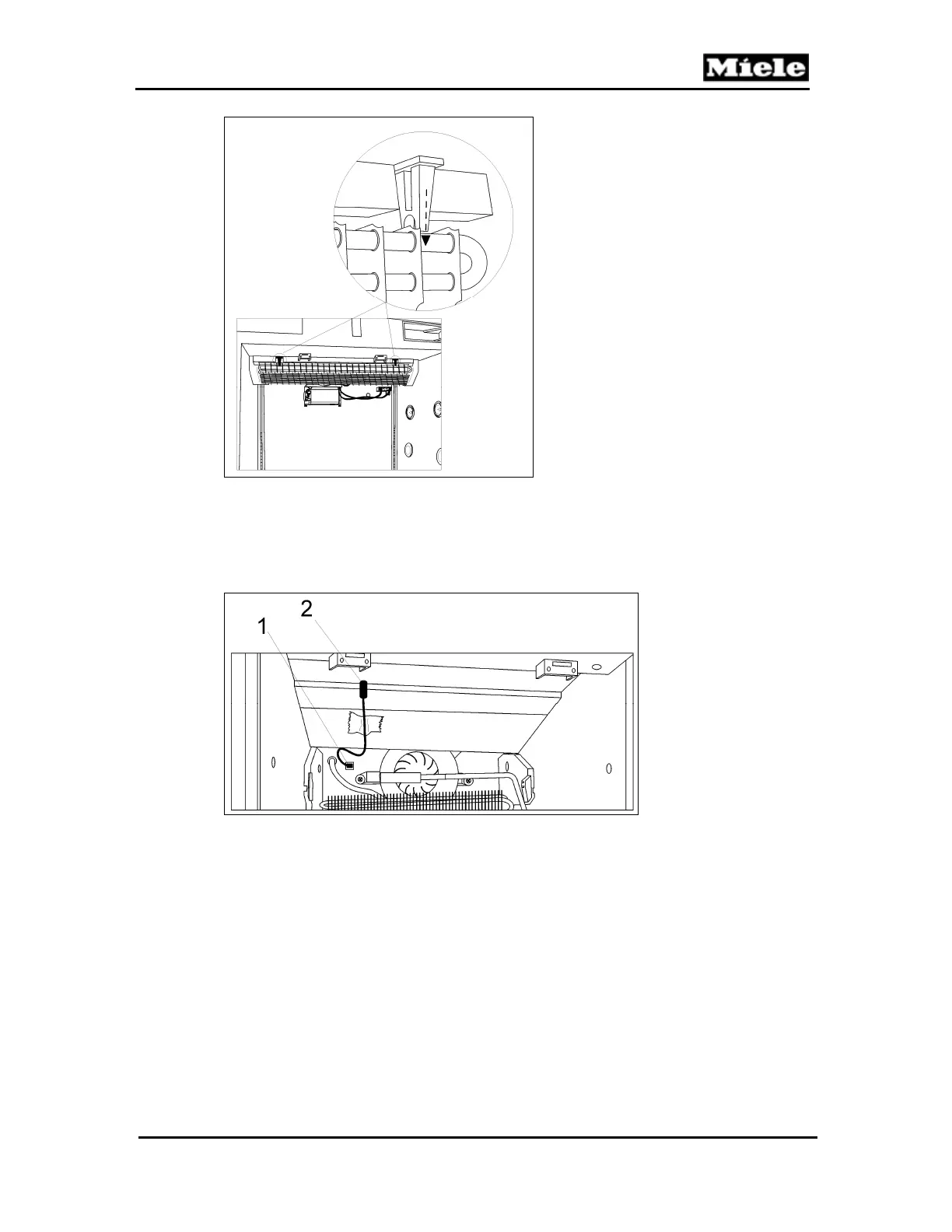

Figure 030-32: Retainers Holding Evaporator in Place
6. Disconnect the evaporator NTC electrical connection. See Figure 030-33,
Item 1.
7. Remove the evaporator NTC from the insulation plate. See Figure 030-
33, Item 2.
Figure 030-33: Evaporator NTC and Electrical Connection
4.14 Removing Refrigerator Evaporator Fan M2/4
1. Disconnect the appliance from the power supply.
2. Remove the refrigerator evaporator cover; see Section 030-4.6.
3. Remove the refrigerator lighting assembly. See Section 030-4.8.
4. Remove the drain channel/defrost heater plate. See Section 030-4.11.
5. Remove the two bottom fan retaining screws. See Figure 030-34, Item 1.
