Technical Information
43
KF 18xx/19xx

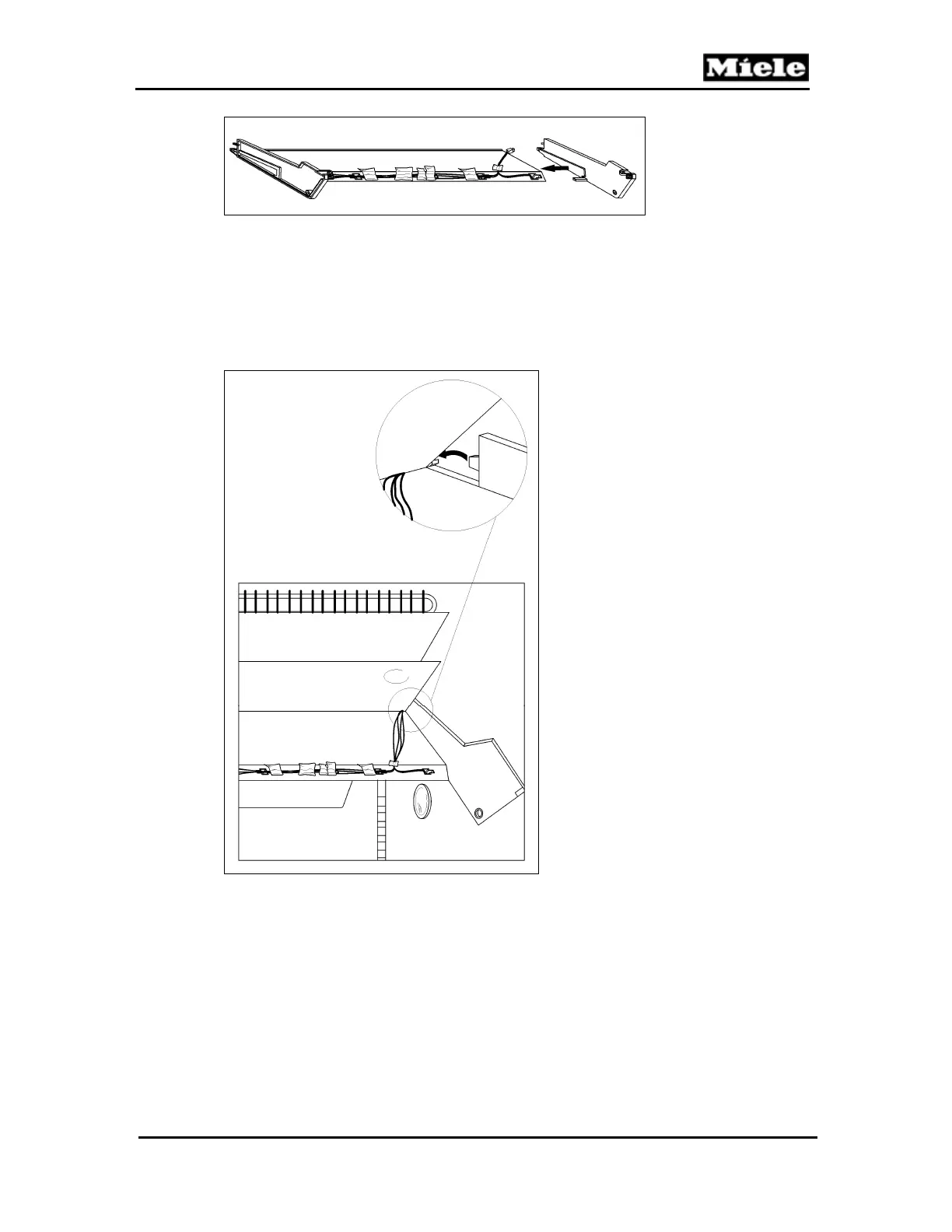

Figure 030-26: Lighting Assembly and Retainers
2. Insert the lighting assembly partway, leaving enough space for the
insulation to be inserted. See Figure 030-27.
3. Insert the Styrofoam insulation.
4. Fully insert the lighting assembly.
5. For further assembly, follow the removal instructions in reverse order; see
Section 030-4.8.
Figure 030-27: Inserting the Lighting Assembly
4.10 Removing the Refrigerator Lighting Assembly Temperature
Monitors (1F1, 2F1)
1. Disconnect the appliance from the power supply.
2. Remove the refrigerator evaporator cover; see Section 030-4.6.
3. Remove the refrigerator lighting assembly. See Section 030-4.8.
4. Remove the appropriate temperature monitor. See Figure 030-28, Item 1.
