Technical Information
91
KF 18xx/19xx

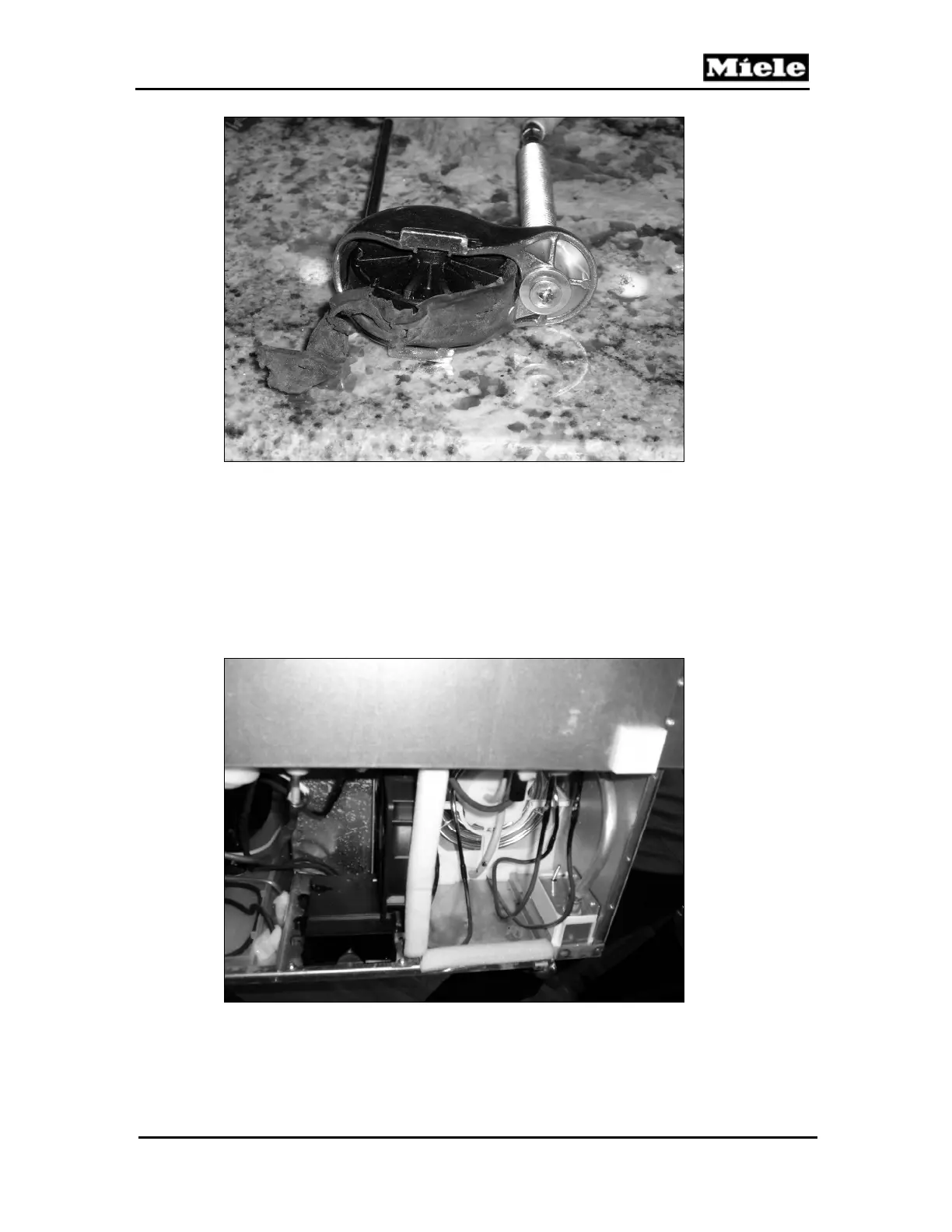

6. To install the new wheel, simply route the flexible cable (without the metal
tube – it is not listed on the ETD either?) up through the bottom of the
refrigerator, and screw the new wheel assembly into place. Reinstall the
E-clips securing the 8mm hex adjustment to the bracket at the front of the
unit. Turn the 8mm hex adjustment to make sure that the new wheel
lowers and rises.
7. If you need to replace the LEFT rear wheel, simply remove the upper and
lower back covers to gain access to the mechanism. Follow the same
procedure as for the RIGHT rear wheel.
8. It took us approximately 1 hour to replace both RIGHT and LEFT wheels
in a customer’s home. Good luck!
