Mikro DPM380 - Flow Map for the Programming Mode

14

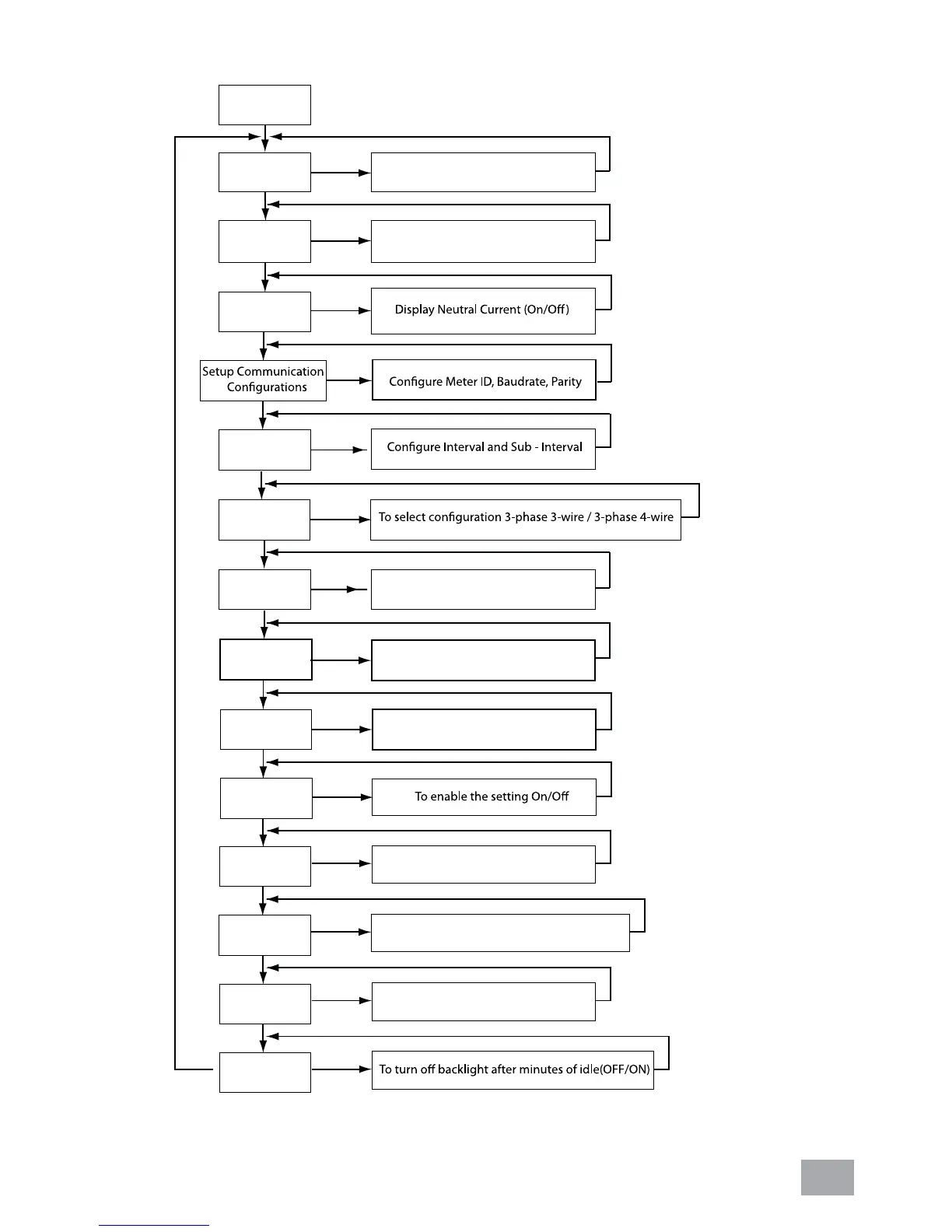

Figure 8 : Menu map for programming mode
PROG Mode
CT Ratio
Setting (A)
To change value range 5 - 9999A
for primary and 5A for secondary
PT Ratio
Setting (V)
To change value range 100 - 33kV for
primary and 100 -120V for secondary
Neutral Current
Setting (Ln)
Reset All
Energy Regsiter
Reset (Yes/No)
Reset Demand
Register
Reset (Yes/No)
Scroll Display
Setting
To scroll display in idle mode (ON/OFF)
Demand
Setting
Remote Set
Reset
Max/Min
Reset (Yes/No)
System Setting
Scroll Delay
Time
To set interval time for scroll display (1-10secs)
Reset Hour-
On Register
Reset (Yes/No)
Backlight
Setting
