NOTE: Default value for the communication ID is 0001,
baudrate is 38400 bps and parity set to none.
6.5. SETUP COMMUNICATION CONFIGURATIONS

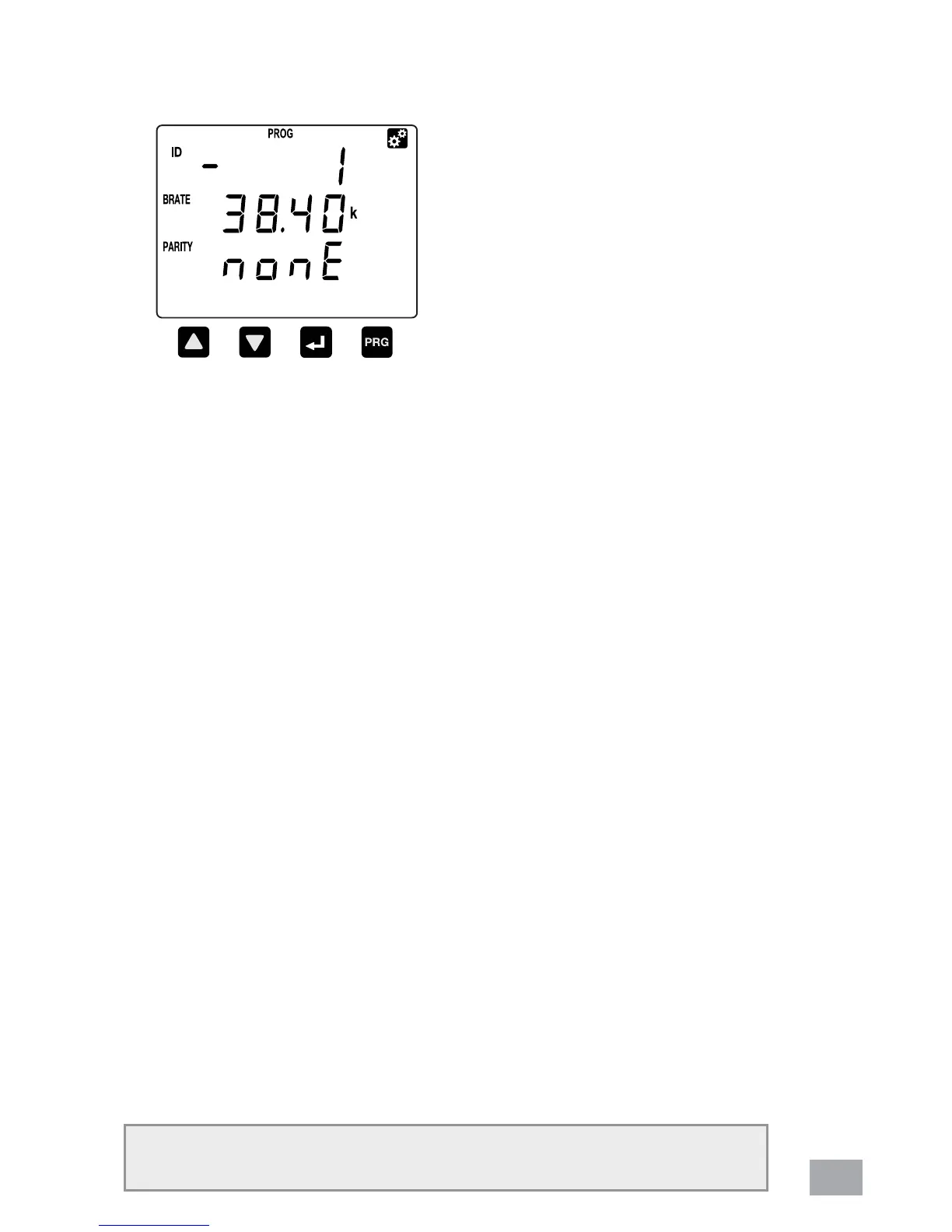

a. Scroll until ”ID BRATE PARITY“ is displayed using the
UP or DOWN button.
b. Press the NEXT button. The “PROG” and “-” symbol next
to “ID” will blink. Use the UP or DOWN button to change
the device ID.
c. Next, press the NEXT button and “-”symbol next to
“BRATE” will blink to change baudrate. Repeat step (b)
to change.
d. Press NEXT button to change parity and “-” symbol next
to “PARITY” will blink. Repeat step (b) to change.
e. Then press the NEXT button to confi rm new setting. The
“PROG” will stop blinking.
f. To proceed next setting press DOWN button. To exit
programming mode, press the PROG button. The user
will be prompted to confi rm the saving of settings if
change is made. Refer section 6.16.
