OM-272476 Page 42
1
9
13
6
15
7
16
10
5
3
8
18
14
4
2
272 803-A
. Hardware is common and
not available unless listed.
12
11
17

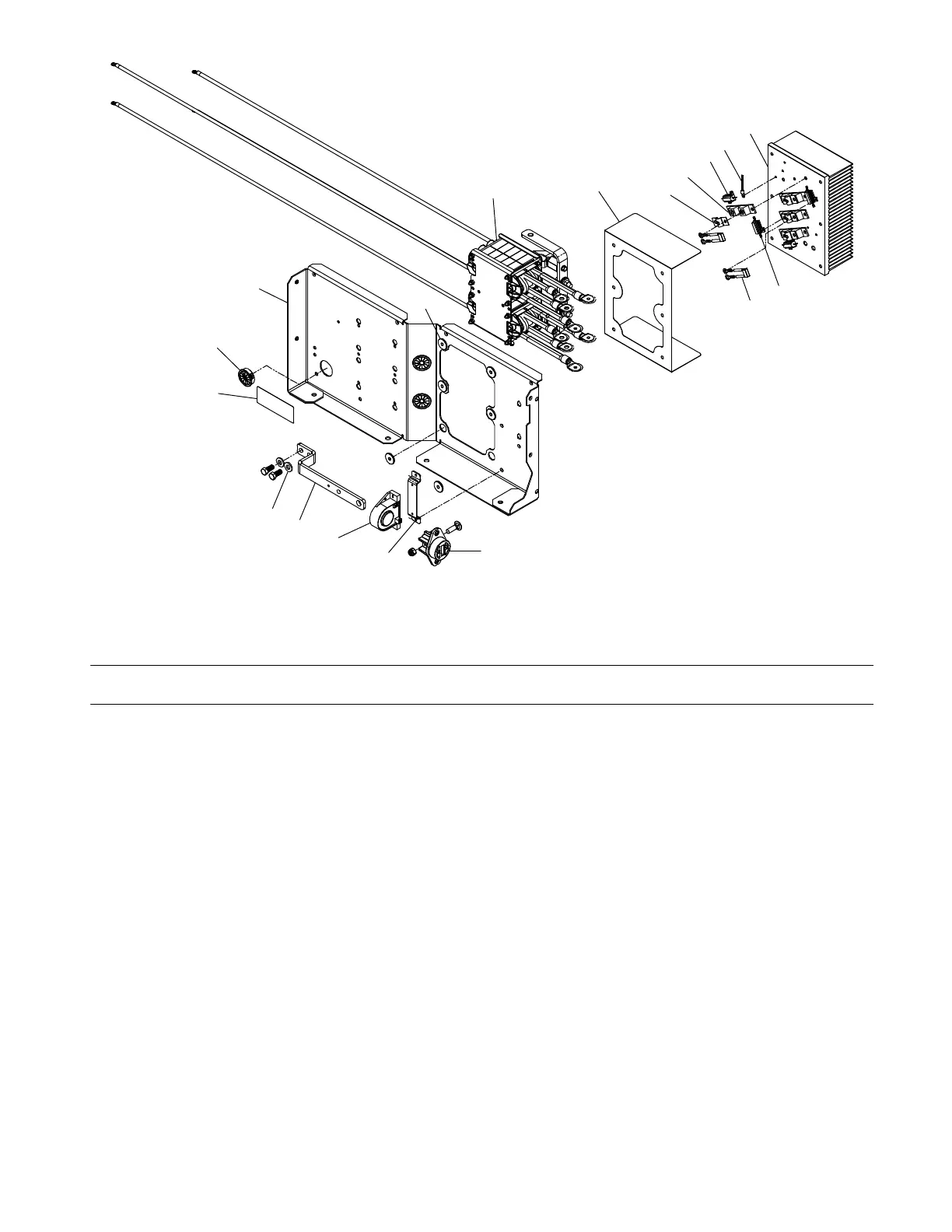

Figure 12-4. Wind Tunnel, LH
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 12-4. Wind Tunnel, LH
Quantity
1 +263569 Windtunnel, Lh 1.. ............. .. ..................................................
2 245520 Bushing, Snap−In Nyl 1.062 Id X 1.500 Mtg Hole Cent 3.. .............. .. ...............
3 272700 Label, Warning Electric Shock/Exploding Parts 1.. .............. .. ......................
4 183387 Washer, Cone .380idx .860odx.109T Stl Pld 4000lbs 2.. .............. .. .................
5 263571 Bus Bar, Diode 4.. .............. .. ..................................................
6 HD1 168829 Transducer, Current 1000A Module Max Open Loop 1.. .... .... .. .................
7 264242 Bracket, Mtg Lem 1.. .............. .. ...............................................
8 263559 Terminal, Pwr Output Red 1.. .............. .. ........................................
9 196355 Insulator, Screw 6.. .............. .. .................................................
10 T1 269226 Xfmr Assy, Hf 1.. ..... ..... .. ...................................................
11 263556 Insulator, Heatsink 1.. .............. .. ...............................................
12 199840 Bus Bar, Diode 4.. .............. .. ..................................................
13 D1−D4 269909 Kit, Diode Power Module (Vishay) 4.. ... ... .. .................................
14 R1/C15,R2/C16 266955 Resistor/Capacitor Assy 2.. .. ..........................................
15 RT2 173632 Thermistor, Ntc 30K Ohm @ 25 Deg C 12.00 in. Lead 1.. .... .... .. ................
16 263554 Heat Sink, Rect Output 1.. .............. .. ...........................................
17 R3 270758 Resistor W/Leads 1.. ..... ..... .. ...............................................
18 C18, C19 219191 Capacitor, Polyp Film 2.. .. .. .. ............................................
+ When ordering a component originally displaying a precautionary label, the label should also be ordered.
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
