Miller Dimension 650 - Wind Tunnel RH Parts

OM-272476 Page 41
2
3
9
4
6
10
5
7
12
1
8
11
269 852-A
. Hardware is common and
not available unless listed.

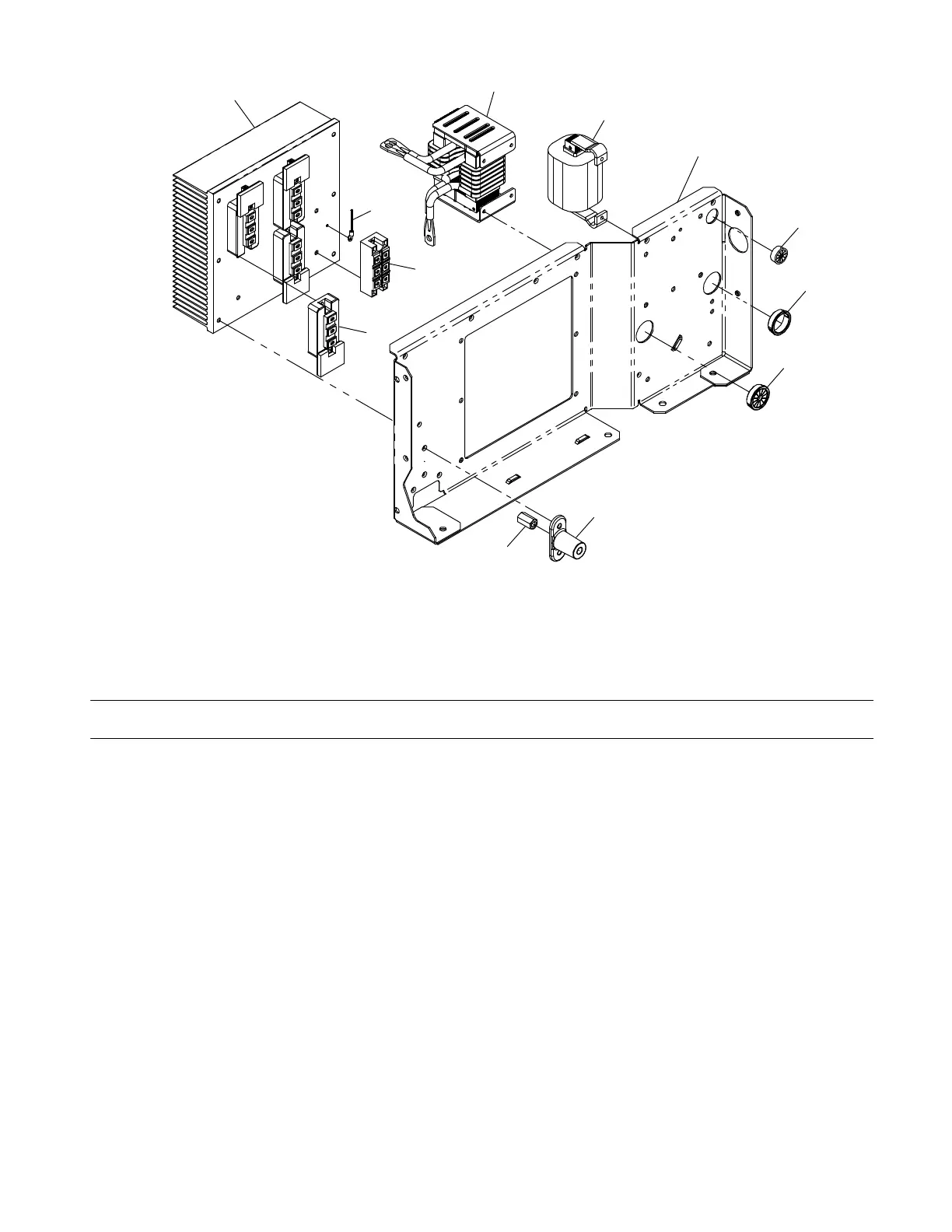

Figure 12-3. Wind Tunnel, RH
Description
Part
No.
Dia.
Mkgs.
Item
No.
Figure 12-3. Wind Tunnel, RH
Quantity
1 263555 Heat Sink, Power Module 1.. .............. .. .........................................
2 RT1 199798 Thermistor, Ntc 30K Ohm @ 25 Deg C 18.00in. 2500V 1.. .... .... .. ...............
3 Z1 263583 Inductor, Output 1.. ..... ..... .. .................................................
4 L1 272366 Inductor, Input 1.. ..... ..... .. ..................................................
5 263578 Windtunnel, Rh 1.. .............. .. .................................................
6 153403 Bushing, Snap-in Nyl .750 Id X 1.000 Mtg Hole Cent 2.. .............. .. .................
7 170647 Bushing, Snap-in Nyl 1.312 Id X 1.500 Mtg Hole 1.. .............. .. .....................
8 245520 Bushing, Snap-in Nyl 1.062 Id X 1.500 Mtg Hole Cent 1.. .............. .. ................
9 264199 Stand-off, Insul Bus Bar 1.. .............. .. ..........................................
10 268532 Nut, 375-16 .63Hex 1.13H Stl Pld Clr Coupling 1.. .............. .. ......................
11 PM1−PM4 263595 Kit, Transistor IGBT Module (Vishay) (2 Modules) 2.. .. . .. ....................
273362 Plugs, W/Leads (Gate) 2................... .. ...........................................
12 SR1 184260 Kit, Diode Power Module 1.. .... .... .. .........................................
To maintain the factory original performance of your equipment, use only Manufacturer’s Suggested
Replacement Parts. Model and serial number required when ordering parts from your local distributor.
