4-7. Typical Lens Adjustment Procedure
OM-269681 Page 1
 Lens assembly displays pr
settings when turned On. R
tained settings are not sho
in example.
 In the Grind mode the lens i
fixed shade No. 3. No lens
justments are possible.
Adjusting Lens Assembly:
 Turn lens On. Display scre
appears.
 Select mode (Weld, Cut, Gri
X-Mode).
 Select shade by pressing L
and DKR buttons.
 Select Delay by pressing Sh
and Long buttons.
 Select Sensitivity by press
Less and More Buttons.
 Begin work.
F
Lens assembly displays
prior settings when
turned on. Retained set-
tings are not shown in
example.
F
In the Grind mode the
lens is a fixed shade No.
3. No lens adjustments
are possible.

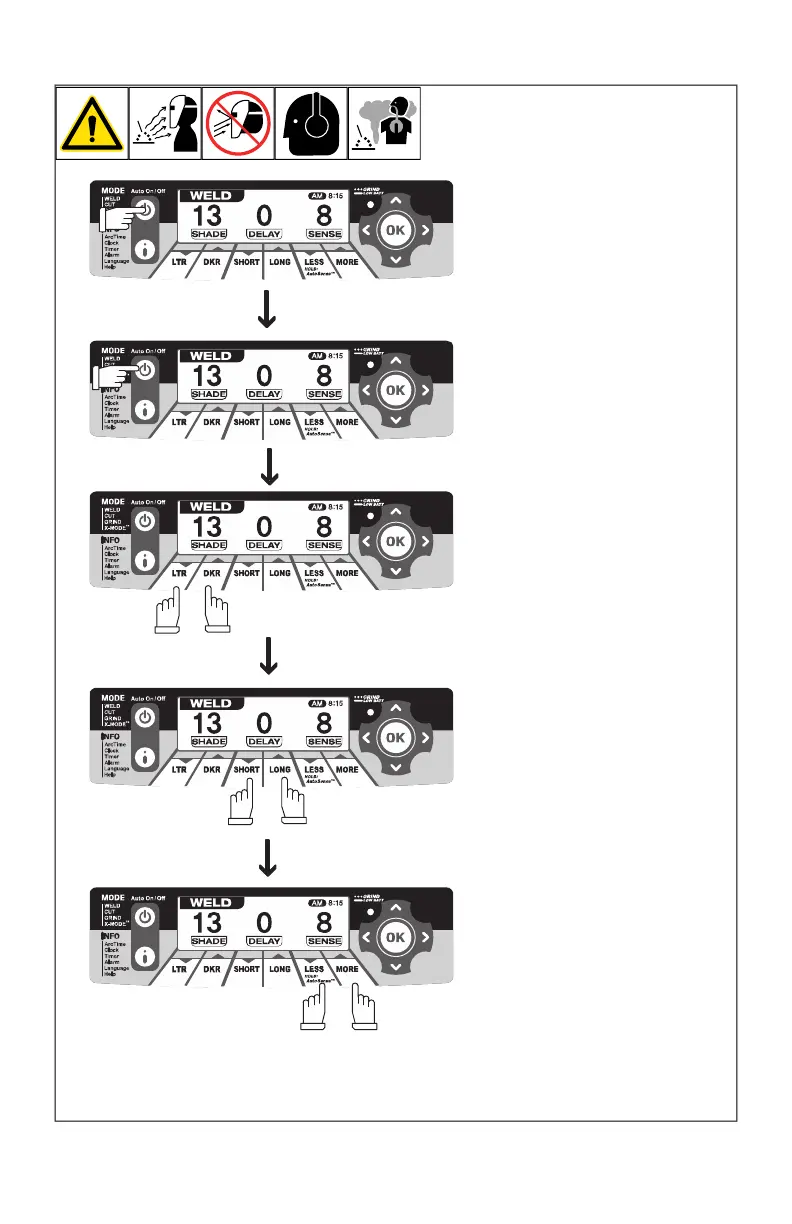

Adjusting Lens Assembly
l Turn lens on. Display
screen appears.
l Select mode (Weld, Cut,
Grind, X-Mode).
l Select shade by pressing
LTR and DKR buttons.
l Select Delay by pressing
Short and Long buttons.
l Select Sensitivity by
pressing Less and More
Buttons.
l Begin work.
