SECTION 4 – OPERATING INSTRUCTIONS
4-1. Helmet Controls
OM-269681 Page 1
The auto-darkening lens
turns on (darkens) automati-
cally when welding begins
and turns off when welding
stops.
1 Auto On/Off Button
(See Section NO TAG)
Mode Control Button
(Section NO TAG)
2 Grind Mode/Low
Battery Light (Section
NO TAG)
3 Lens/Info Adjustment
Buttons (See Sections
NO TAG Through
NO TAG)

Use adjustment buttons
to change shade, delay,
and sensitivity settings
when lens is in Mode
function. Use adjust-
ment buttons to change
arc time, clock, timer,
alarm, language, and
help settings when lens
is in Info function.
4 Info Control Button
(See Section NO TAG)

The lens assembly
saves the shade, sensi-
tivity, and delay settings.
1
3
4
2

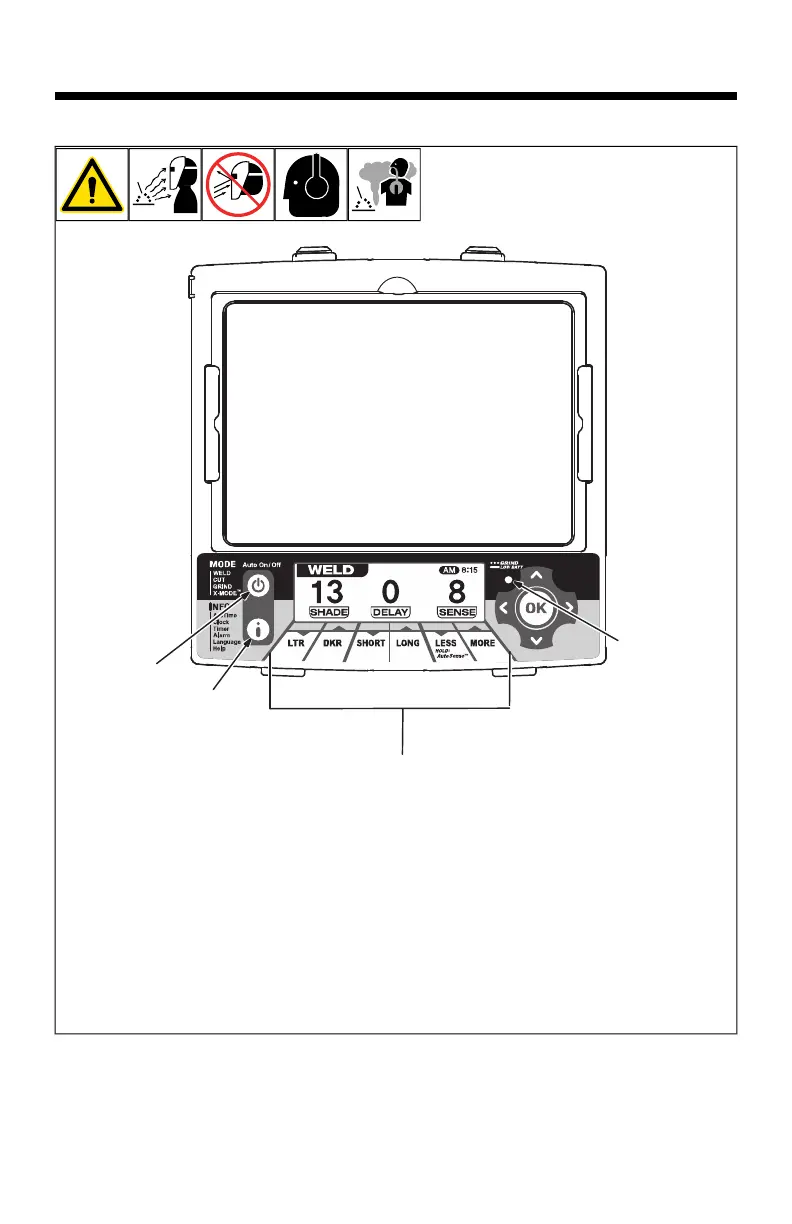

The auto-darkening lens turns on (darkens)
automatically when welding begins and
turns off when welding stops.
1 Auto On/Off (Mode) Button (Section 4-2)
2 Grind Mode / Low Battery Light (Section
4-2)
3 Lens/Info Adjustment Buttons (See Sec-
tions 4-4 Through 4-5)
F
Use adjustment buttons to change
shade, delay, and sensitivity settings
when lens is in Mode function. Use ad-
justment buttons to change arc time,
clock, timer, alarm, language, and help
settings when lens is in Info function.
4 Info Control Button (See Section 4-8)
F
The lens assembly saves the shade,
sensitivity, and delay settings.
