SECTION 5 – ADJUSTING HEADGEAR

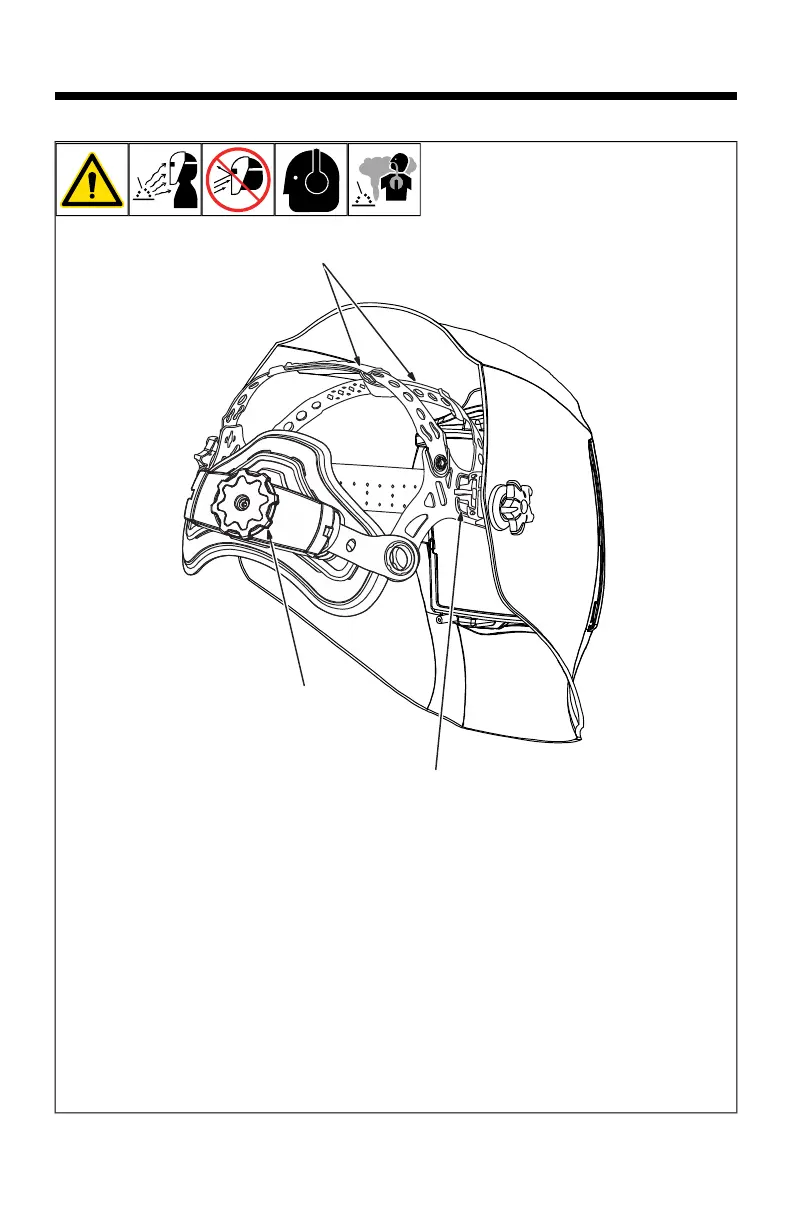

5-1. Adjusting Headgear
OM-269681 Page 1

There are four headgear
adjustments: headgear
top, tightness, angle,
and distance.
1 Headgear Top
Adjusts headgear for proper
depth on the head to ensure
correct balance and stability.
2 Headgear Tightness
To adjust, turn the adjusting
knob located on the back of
the headgear left or right to
desired tightness.
3 Angle Adjustment (Not
Shown)
Seven slots on the right side
of the headband provide ad-
justment for the forward tilt of
the helmet. To adjust, lift and
reposition the control arm to
the desired position.
4 Distance Adjustment
Adjusts the distance be-
tween the face and the lens.
To adjust, press black tabs
on the top and bottom of the
pivot point and use other
hand to slide headgear for-
ward or backward. Release
tabs. (Both sides must be
equally positioned for proper
vision.)

Numbers on the adjust-
ment slides indicate set
position so both sides
can be adjusted equally.
1
2
4
F
There are four headgear adjustments:
headgear top, tightness, angle, and
distance.
1 Headgear Top
Adjusts headgear for proper depth on the
head to ensure correct balance and stability.
2 Headgear Tightness
To adjust, turn the adjusting knob located on
the back of the headgear left or right to de-
sired tightness.
3 Angle Adjustment (Not Shown)
Seven slots on the right side of the head-
band provide adjustment for the forward tilt
of the helmet. To adjust, lift and reposition
the control arm to the desired position.
4 Distance Adjustment
Adjusts the distance between the face and
the lens. To adjust, press black tabs on the
top and bottom of the pivot point and use
other hand to slide headgear forward or
backward. Release tabs. (Both sides must
be equally positioned for proper vision.)
F
Numbers on the adjustment slides indi-
cate set position so both sides can be
adjusted equally.
