Miller Multimatic 200 - Unit Specifications for Stick (SMAW); Environmental Specifications; Dimensions and Weight

. A complete Parts List is available at www.MillerWelds.com
OM-253392 Page 12
4-4. Unit Specifications For Stick (SMAW)
. Do not use information in unit specifications table to determine electrical service requirements. See Sections 5-10, 5-12, and 5-13 for information
on connecting input power.
. This equipment will deliver rated output at an ambient air temperature up to 1045F (405C).
Input
Voltage
Rated Welding
Output
Amperage
Range
Maximum Open-
Circuit Voltage
DC
Amperes Input at Rated
Load Output, 50/60 Hz,
Single-Phase
120 VAC
100 A @ 24 Volts DC, 35%
Duty Cycle
70 A @ 22.8 Volts DC, 100%
Duty Cycle*
20 − 100
90
23.8
16.5*
230 VAC
150 A @ 26 Volts DC, 30%
Duty Cycle
100 A @ 24 Volts DC, 100%
Duty Cycle*
20 − 150 90
20.8
12.7*
* CSA Rating
4-5. Environmental Specifications
A. Temperature Specifications
Operating Temperature Range* Storage/Transportation Temperature Range
14 to 104F (-10 to 40C)
*Output is derated at temperatures above 104F (40C).
-4 to 131F (-20 to 55C)
Temp_2016-07
17 in.
(432 mm)

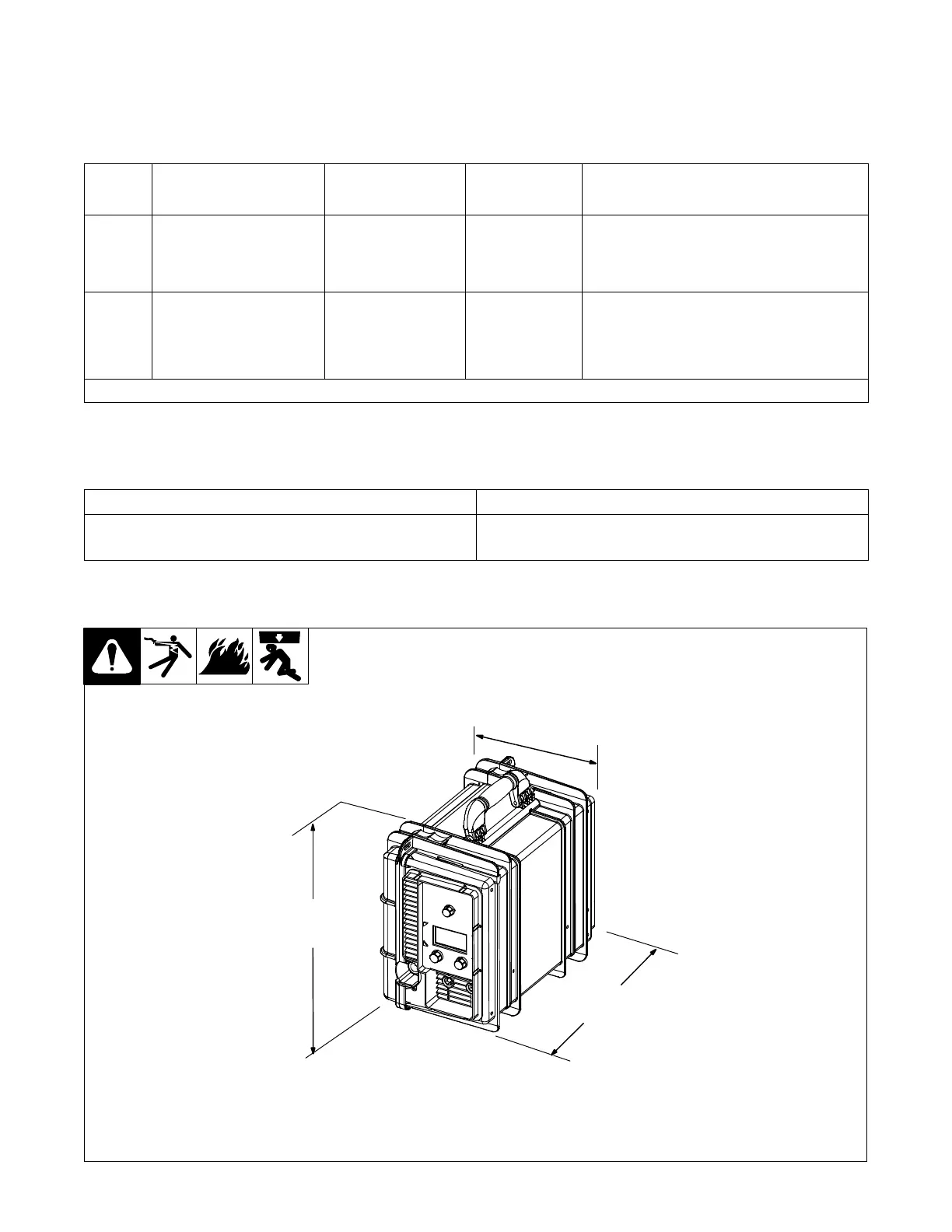

4-6. Dimensions And Weight
253 921-B
9-3/4 in.
(248 mm)
14-1/2 in.
(368 mm)
29 lb (13.2 kg)
Weight
