OM-253392 Page 36

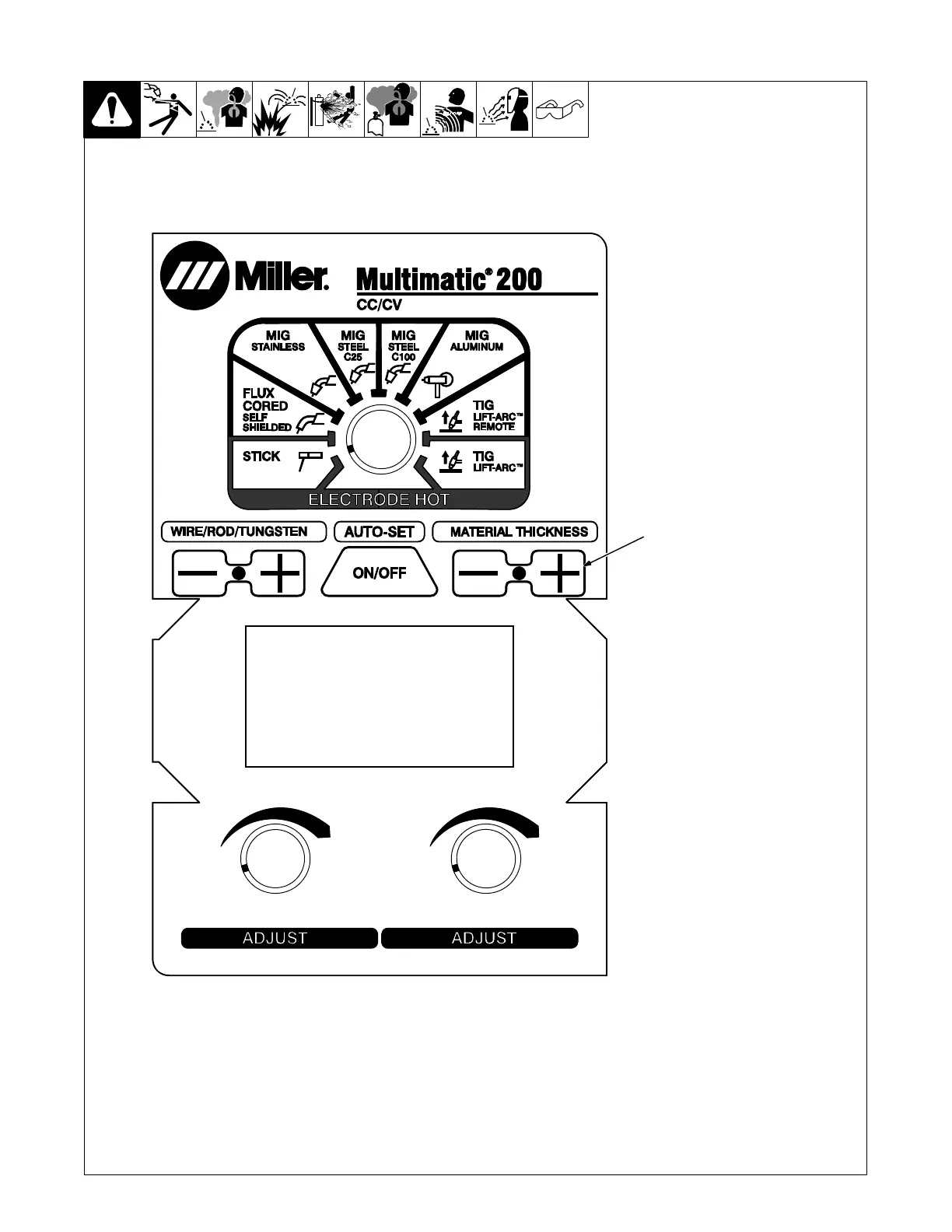

6-12. Viewing Error Logs (Menu 9 Of 10)
1 Material Thickness Plus (+)
Button
Follow instructions in Section 6-3 to
enter the setup menu.
Press Material Thickness Plus (+)
button eight times after entering setup
to enter the Process Logs screen.
Error Logs screen displays unit
over-temperature errors, shorted out-
put errors, shorted trigger errors, input
voltage errors, and input current er-
rors.
Cycle through menu items using the
Material Thickness Plus (+) button or
cycle unit power to save settings and
exit menu.
. Cycle unit power before welding
to complete initialization process.
Ref. 249 632-F
