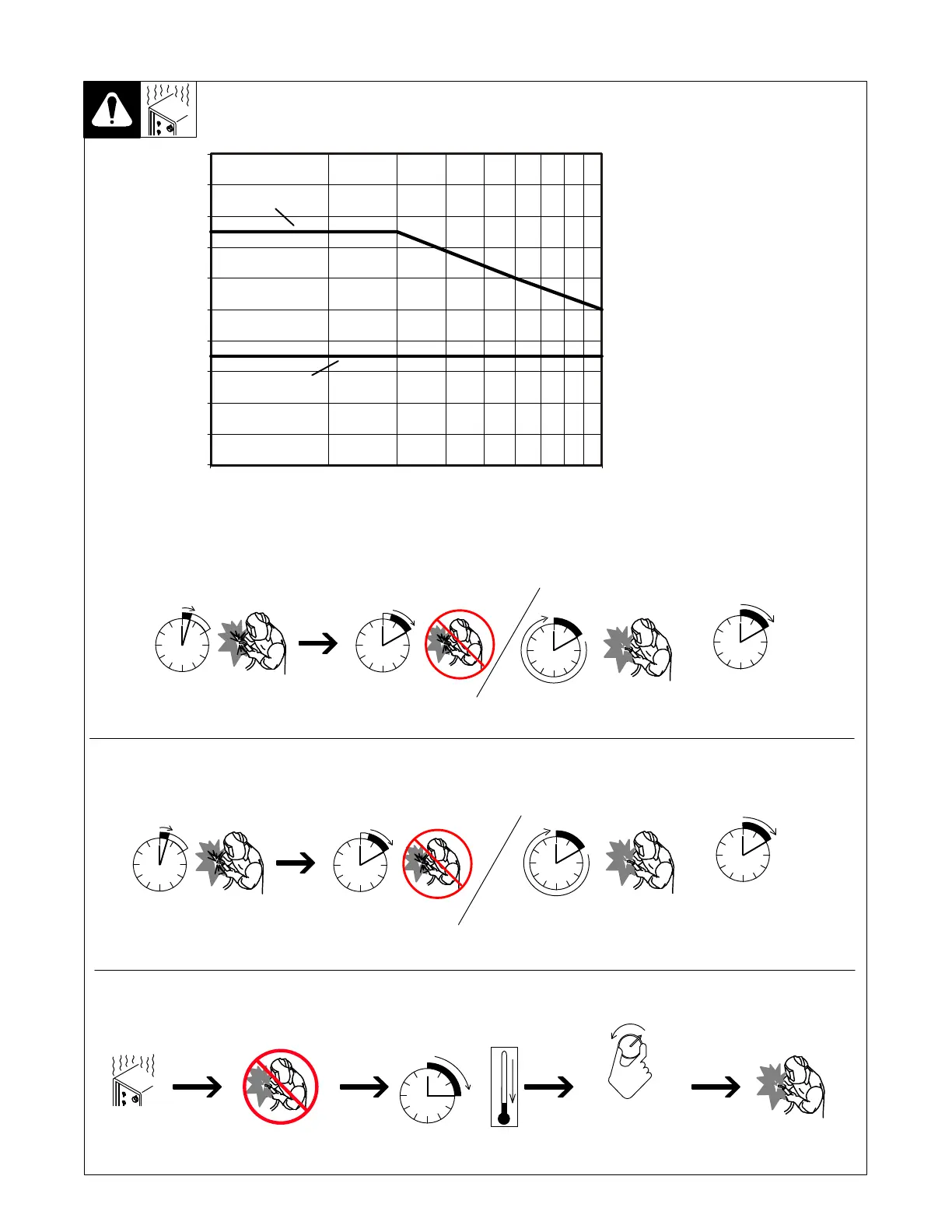

4-8. Duty Cycle And Overheating For TIG
Duty Cycle is percentage of 10
minutes that unit can weld at rated
load without overheating.
If unit overheats, output stops. Wait
fifteen minutes for unit to cool.
Reduce amperage or duty cycle
before starting to weld again.
NOTICE − Exceeding duty cycle
can damage unit and void warranty.
3 Minutes Welding 7 Minutes Resting
3 Minutes Welding 7 Minutes Resting
Overheating
0
15
A or V
OR
Reduce Duty Cycle
Minutes
duty1 4/95 − Ref. Duty Cycle Charts
30% Duty Cycle At 150A
Continuous
Welding
120V Input
100% Duty Cycle At 75A
230V Input
30% Duty Cycle At 150A
Continuous
Welding
100% Duty Cycle At 100A
10 100
30
50
0
20
40
60
80
100
120
140
160
180
200
% Duty Cycle
Output Amperes
230V & 120V 20A
120V 15A
