SECTION 6 − OPERATION

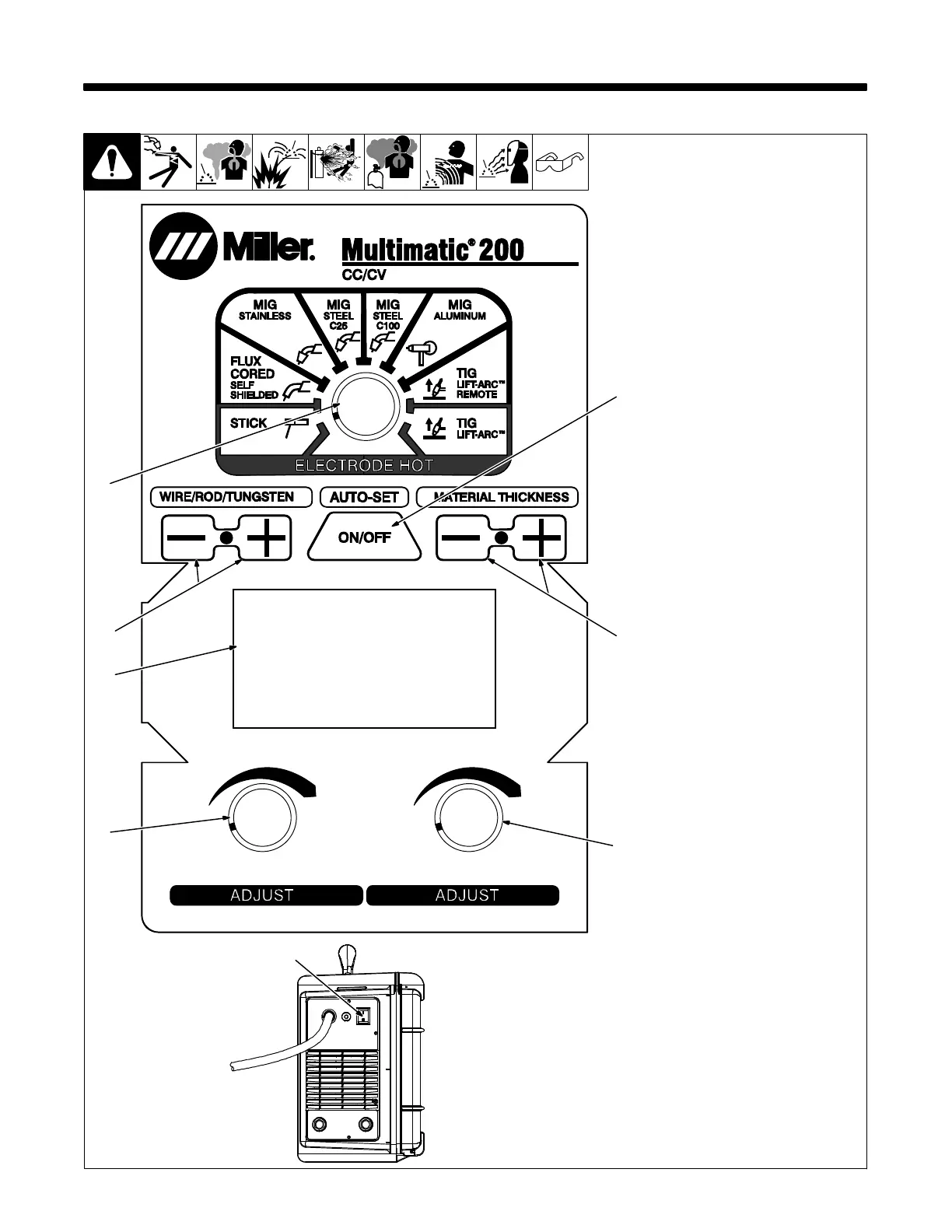

6-1. Controls
1 Process Select Knob
Turn knob to select the desired
welding process.
2 Auto-Set Button
Press button to turn Auto-Set On or
Off.
3 Wire/Rod/Tungsten Buttons
Press the Plus (+) or Minus (−)
button to select the size of wire, rod,
or tungsten for the selected
process.
. When MIG Aluminum process
is selected, Wire/Rod/Tung-
sten buttons are used to select
type of spool gun being used.
4 Material Thickness Buttons
Press the Plus (+) or Minus (−)
button to select material thickness
for the selected process.
5 Display
6 Adjustment Knob
7 Power Switch
Use switch to turn unit On or Off.
Ref. 249 632-F / 253 923-B
6
1
2
3
4
5
6
7
Rear
View
