. A complete Parts List is available at www.MillerWelds.com
OM-253392 Page 26

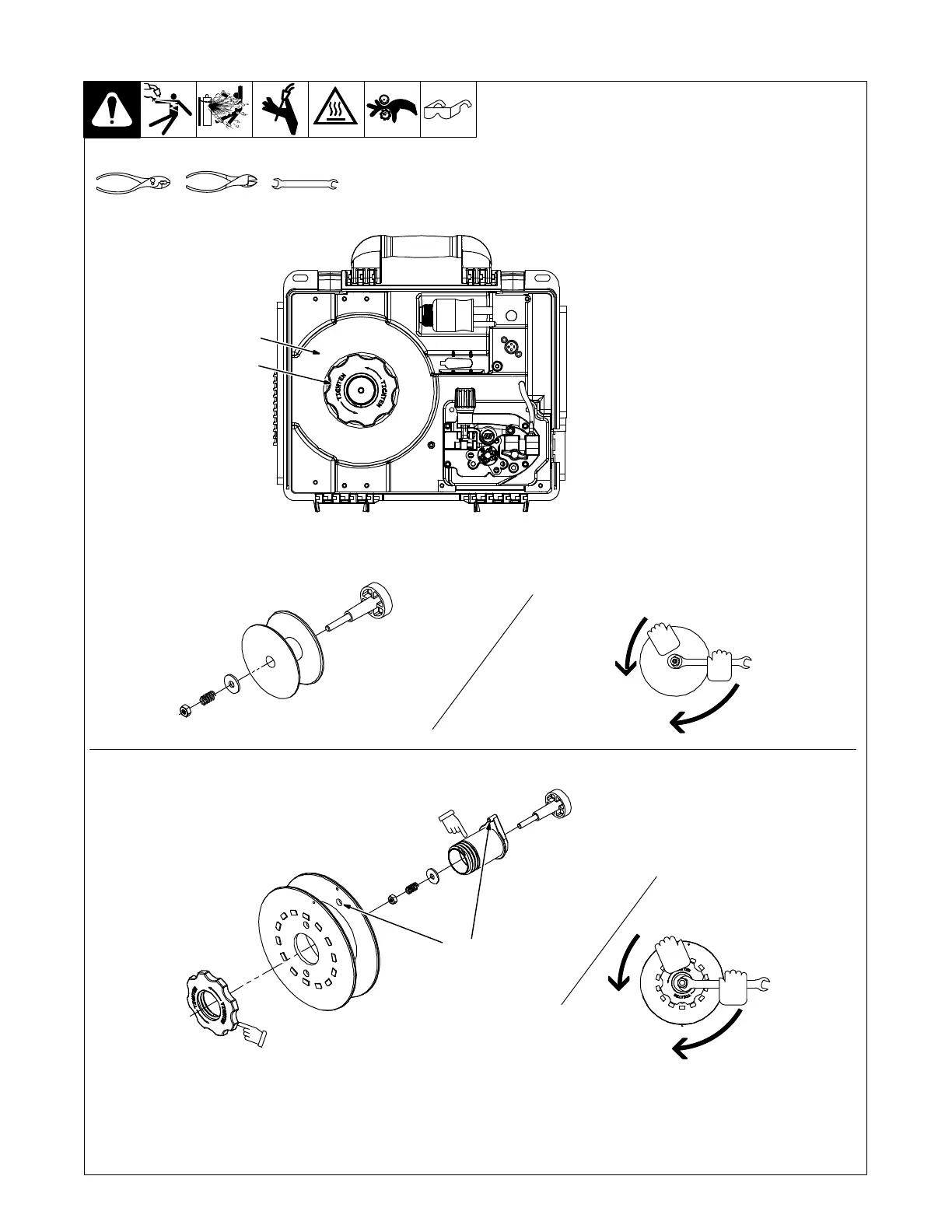

5-14. Installing Wire Spool And Adjusting Hub Tension
1 Wire Spool
2 Retaining Nut (For 8 in. [203
mm] Spool Only)
When a slight force is needed
to turn spool, tension is set.
1/2 in.
Tools Needed:
Ref. 254 253-C / 803 012 / 803 013 -B / Ref. 802 444-C
Installing 8 in. (203 mm) Wire Spool
Installing 4 in. (102 mm) Wire Spool
When a slight force is needed
to turn spool, tension is set.
Retaining ring used with 8 in.
(203 mm) spool only.
Adapter used with 8 in.
(203 mm) spool only.
Align locking hole in
spool with locking
pin on spool hub.
2
1
