Installation
10

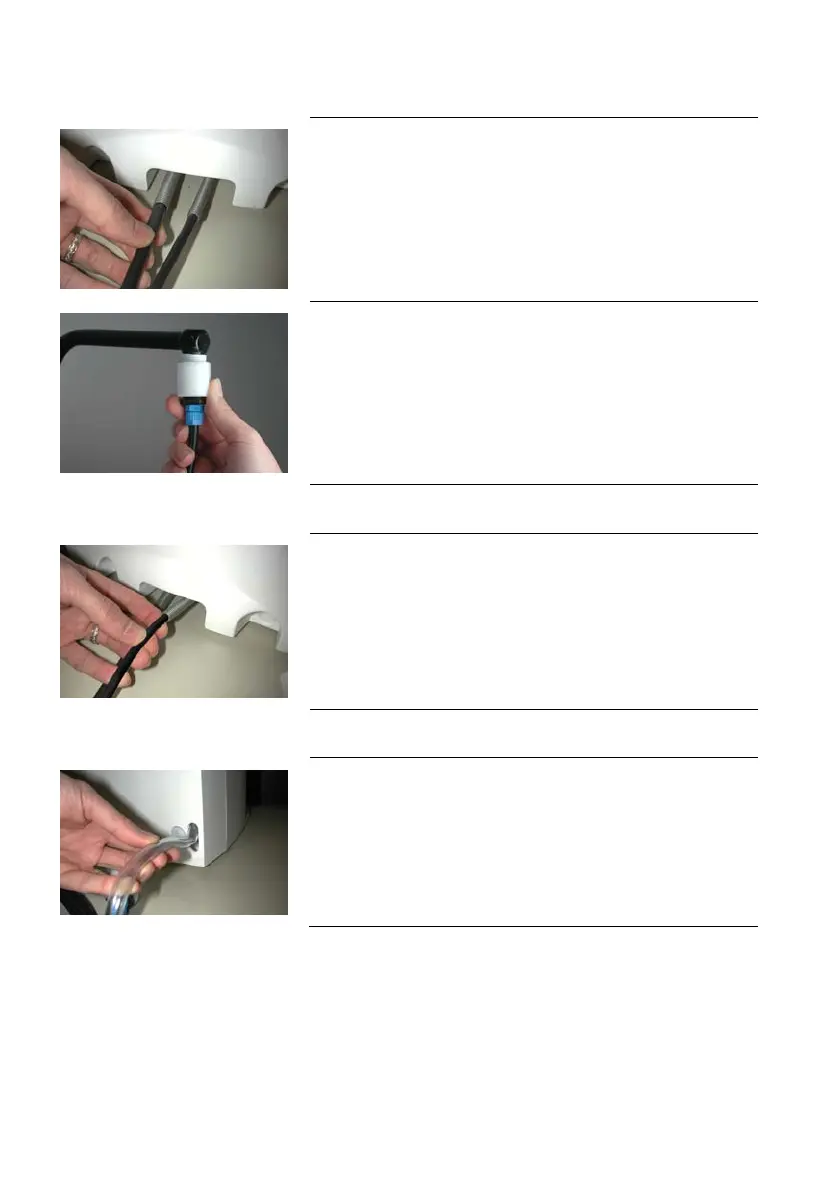

Feedwater Tubing
B
• Locate the Feedwater Tubing exiting from the bottom middle of the
system (B).
A 1/2 inch Female GAZ fitting with a screen filter is attached at the
end of this tubing.
Unroll it until the fitting reaches the Feedwater source.
• Apply white tape on the thread of the 1/2 inch Male GAZ valve or
fitting of the Feedwater source.
C
• Connect the fitting to the valve (C).
Reject Tubing
D
• Locate the Reject Tubing exiting from the bottom middle of the
system (D). Unroll it.
• Secure the tubing into a sink or drain.
Overflow Tubing
E
• Locate the Overflow Tubing exiting from the bottom right of the
system (E). Unroll it.
• Secure the tubing into a sink or drain.
