Installation
22

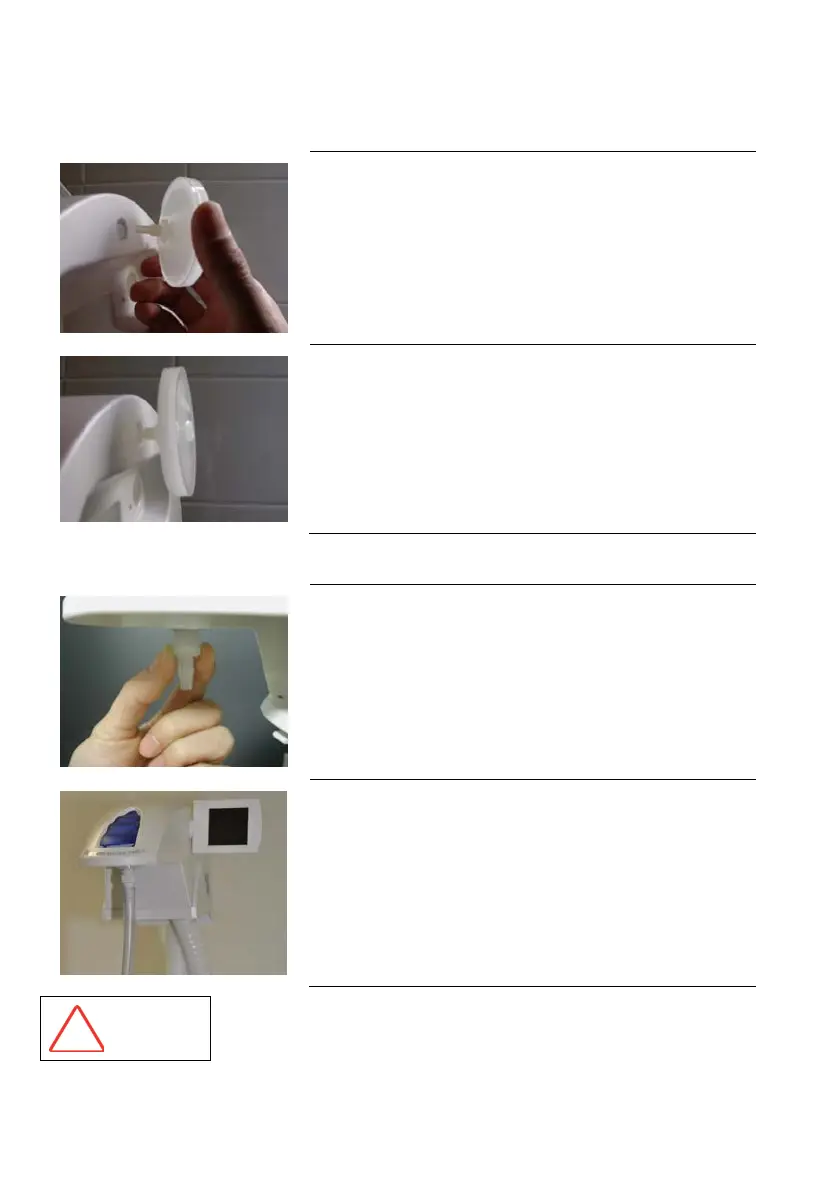

Installation of the Vent Filter
This procedure is for Direct-Q 3 R, in case of Direct-Q 5 R and 8 R, refer to the User Manual of your Reservoir.
A
• Obtain the Vent Filter.
• Insert the Vent Filter firmly into the port (A, B).
B
Installation of the Tygon Tubing
C
• Locate the clear Tygon Tubing and the Barbed Fitting from the
Accessories Bag.
• Screw the Barbed Fitting onto the bottom end of the POU
Dispenser (C).
D
• Push one end of the Tygon Tubing onto the end of the Barbed
Fitting (D).
Place the other end of the Tygon Tubing in a sink.
ATTENTION
Do not use any white tape on the threads of the Barbed Fitting. An O-ring is
located inside the POU Dispenser to ensure water tightness between the threads
of the POU Dispenser and the Barbed Fitting.
