Installation
12

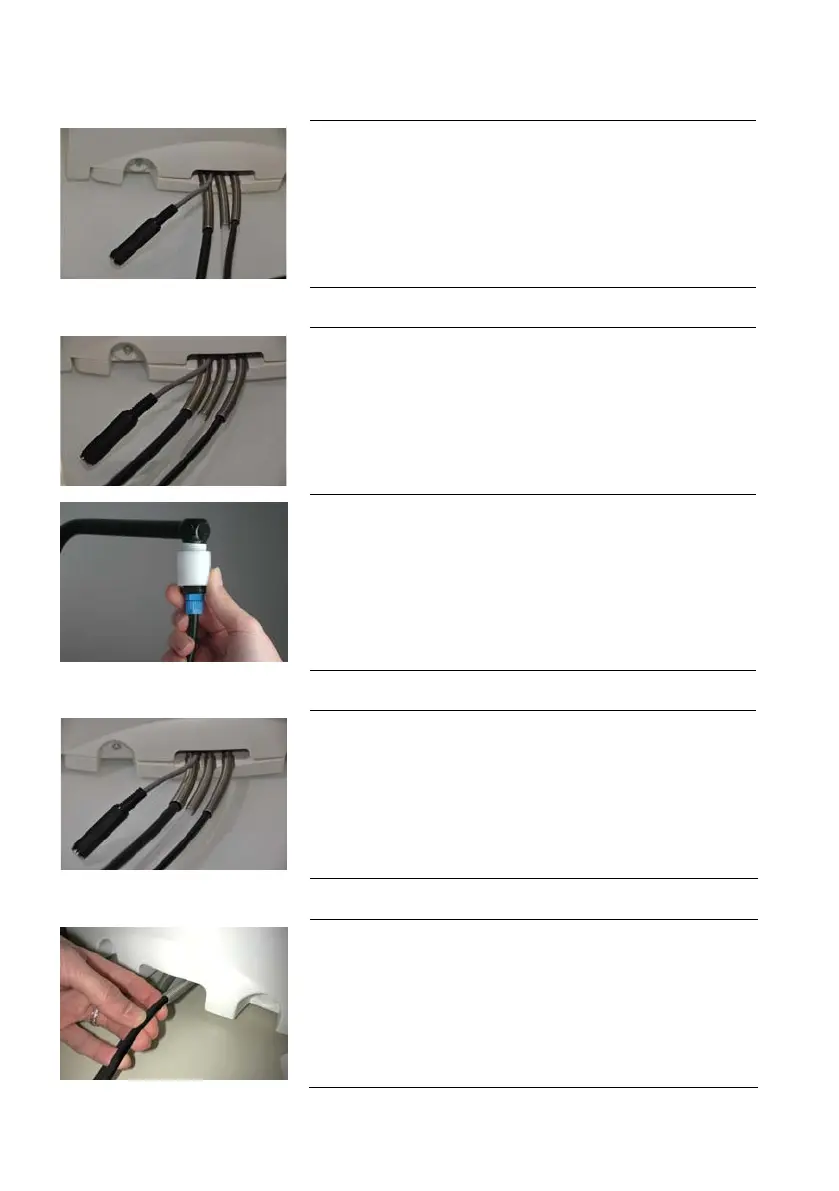

Connection of tubing for a Direct-Q 5 and 8 R
A
3
2
1
4
Rotate the Direct-Q R so you can see the back of the system (A).
1. Feedwater tubing
2. Reject tubing
3. Tubing to tank
4. Level Sensor from Reservoir
Feedwater Tubing
B
1
Locate the Feedwater Tubing exiting from the bottom middle of the
system (1).
A 1/2 inch Female GAZ fitting with a screen filter is attached at the
end of this tubing.
Unroll it until the fitting reaches the Feedwater source.
Apply white tape on the thread of the 1/2 inch Male GAZ valve or
fitting of the Feedwater source.
C
Connect the fitting to the valve (C).
Tubing to tank
D
3
Locate the permeate tubing shown (3).
Unroll it and place it to the drain
Reject Tubing
E
Locate the Reject Tubing exiting from the bottom middle of the
system (E). Unroll it.
Secure the tubing into a sink or drain.
