Installation

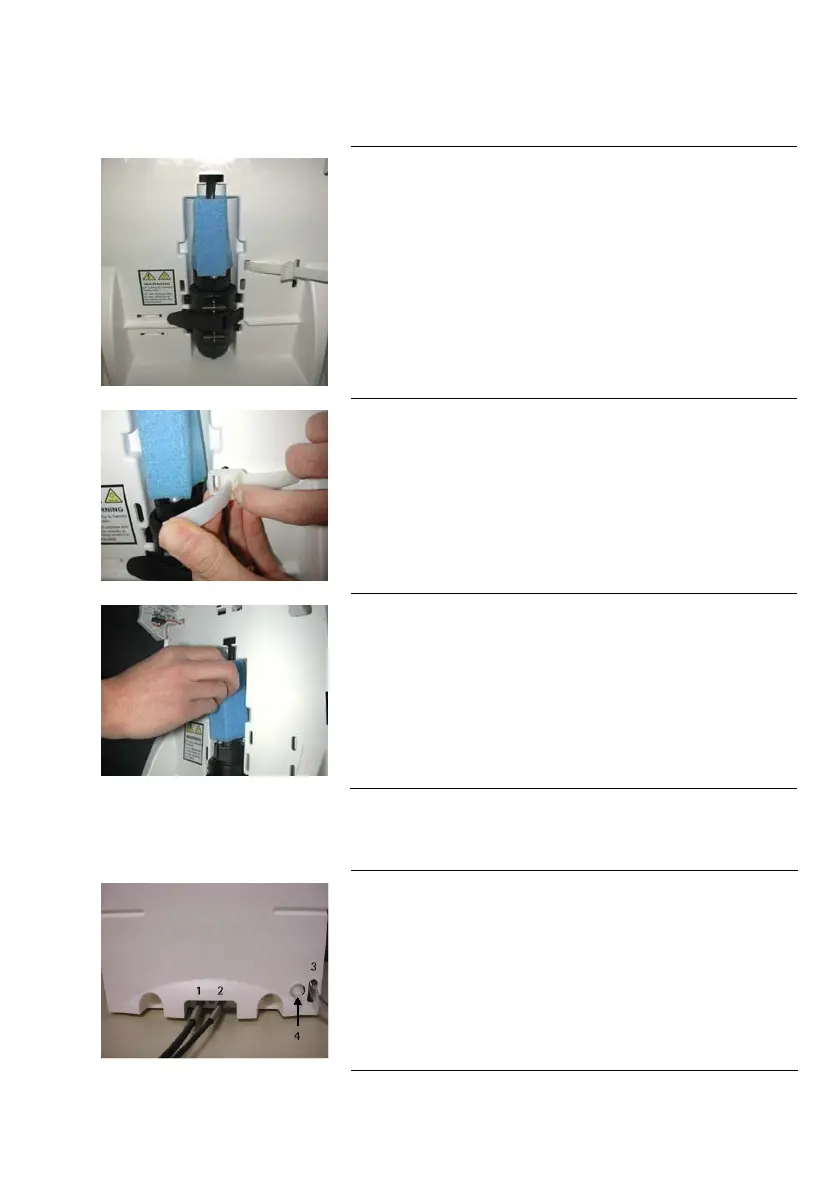

Preparation of the System
A
• Open the front cover.
Locate the tie wrap used to hold the Booster Pump in place during
shipping (A).
B
• Press on the tab of the tie wrap (B).
Remove and pull the tie wrap out.
C
• Locate the protective foam found at the UV lamp cable.
Remove it (C).
Connection of Tubing for a Direct-Q 3 R
(Go directly to section “Connection of tubing for a Direct-Q 5 and 8 R” )
A
• Rotate the Direct-Q 3 R so you can see the back of the system
(see photo A).
1. Feedwater tubing
2. Reject tubing
3. Overflow tubing
4. Tank outlet
