Installation
14
2

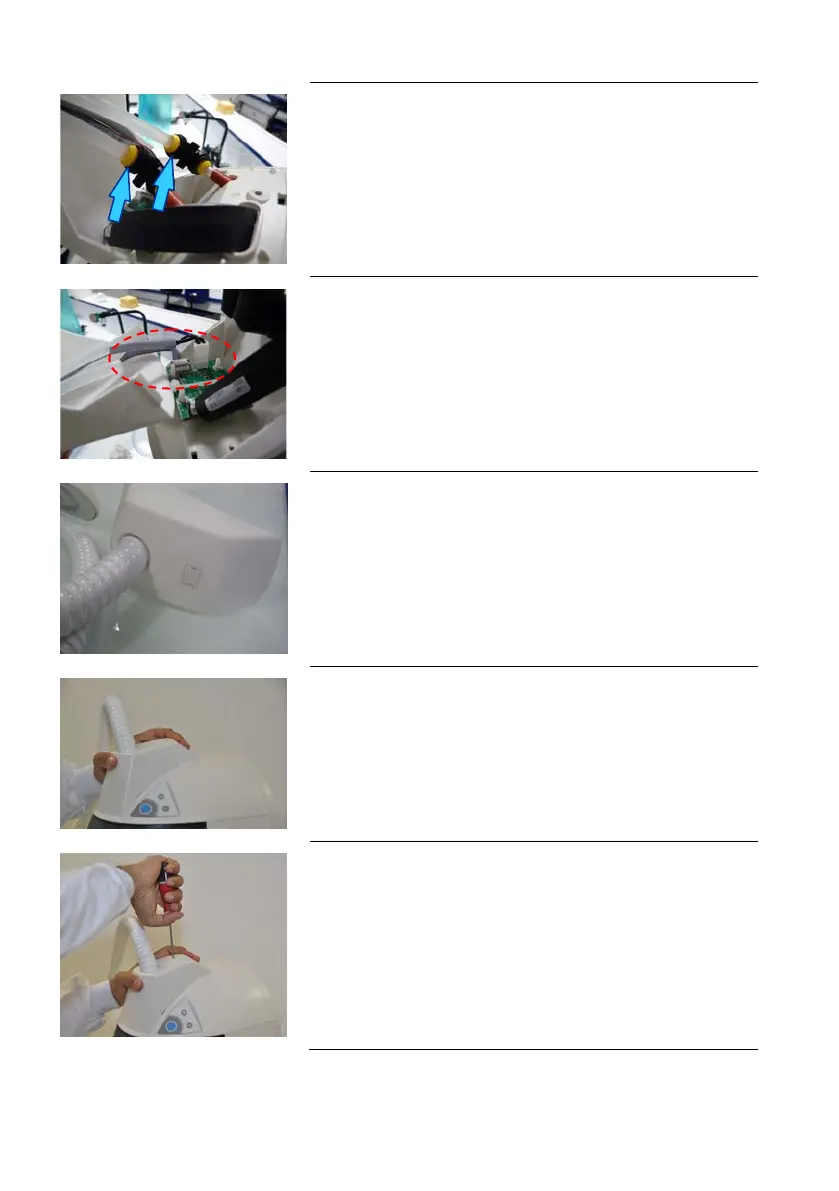

For system installed underbench pass the sleeve through the bench
hole.
• Cut the tie wrap attaching the tubing and cables
• Connect the tubing from the remote dispenser to the water system:
black tubing on black tubing, and transparent tubing on transparent
one.
3
• Connect the 2 electrical connectors (Molex + Picoflex) to the PC
Board.
4
• Make sure the system operates correctly before clipping the hide
panel cover. (It will not be possible to unclip it once clipped).
5
• Put the hide screw cover.
6
• Fix the hide panel cover with a screw.
