17

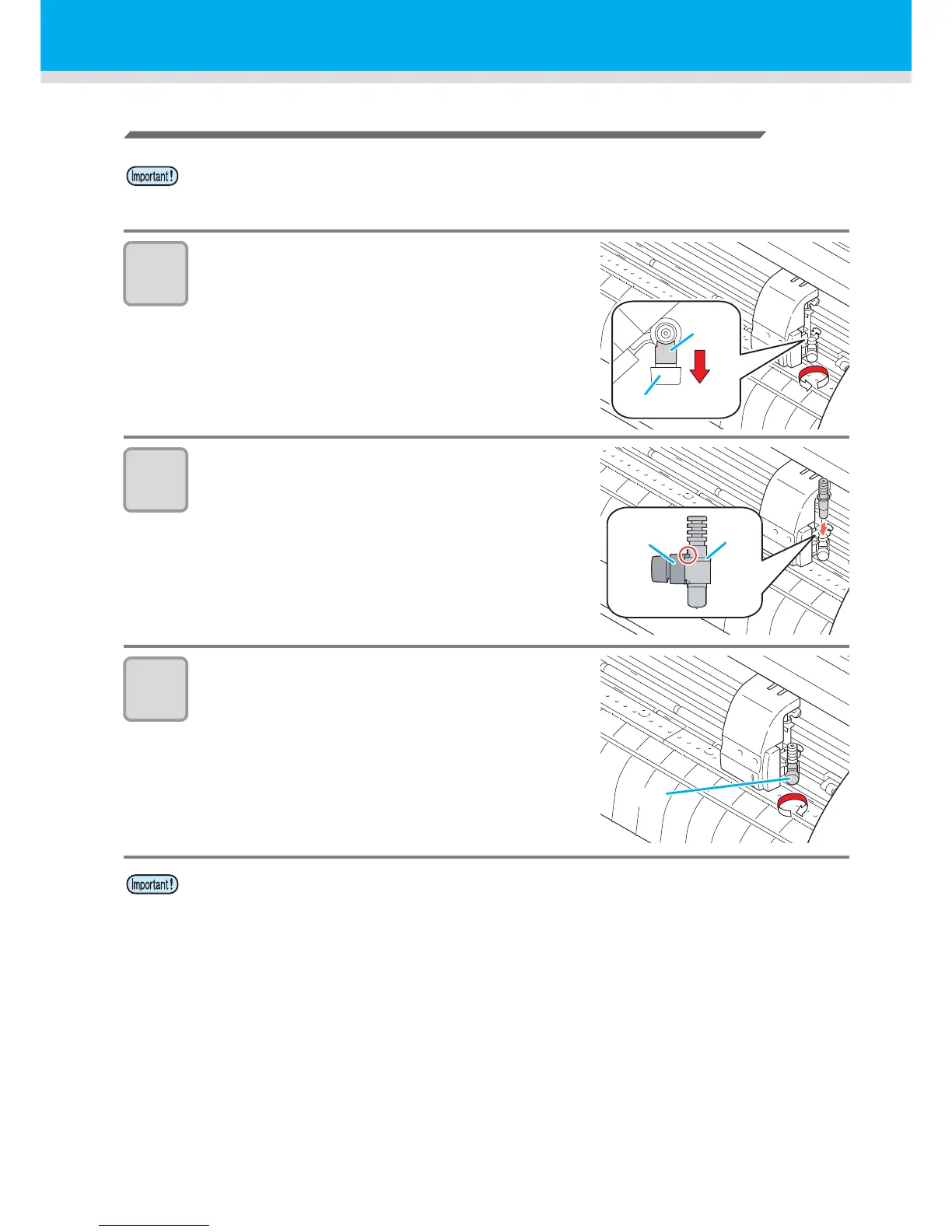

How to install the cutter
1
Rotate the knob to loosen the holder
presser.
2
Insert the cutter holder into the tool
holder.
Push the brim of the cutter holder against the tool
holder.
Press the brim of the cutter holder with the l holder
presser.
3
Fix the cutter holder.
Turn the knob of the tool holder clockwise, and surely
fix it.
Install the cutter to the tool holder of the carriage.Be sure to insert the cutter all the way in the
tool holder.
Fix the cutter firmly. If not, accurate and high-quality cutting (plotting) will not be achieved.
Holder
presser
Knob
Brim
Holder
presser
Knob
