MIMAKI CG-100SR2 User Manual

41

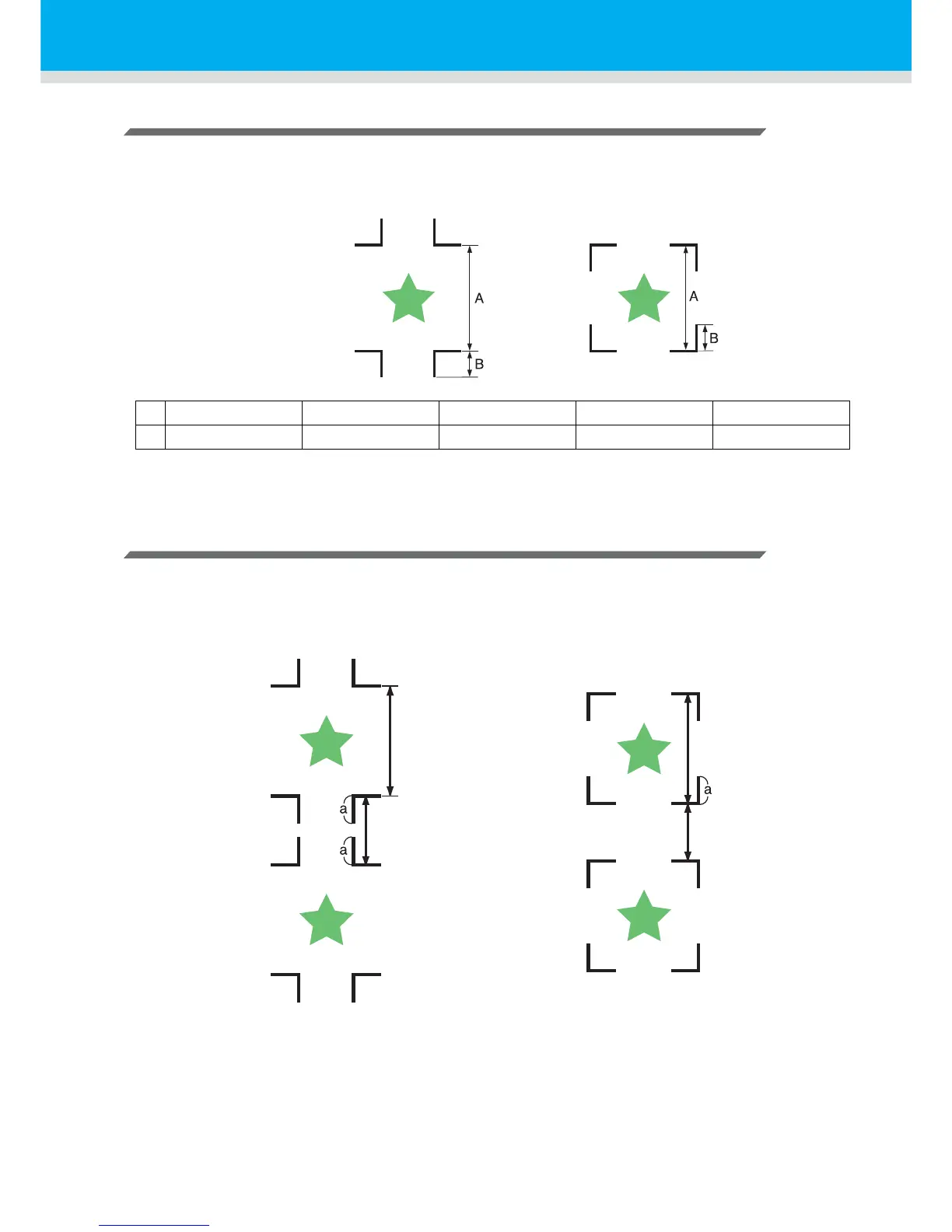

The size of, and the distance between, registration marks
The size (B) of a registration mark suited for the distance (A) between the marks is as shown below.
If the mark size (B) is too small relative to the distance (A), the marks may not be detected correctly.
Be sure to prepare the registration marks with an appropriate size.
(mm)
Distance between registration marks for copied designs
For Type 1 registration marks, the distance between the marks must be not shorter than two times the mark
length and not longer than 1000 mm. For Type 2 registration marks, the distance between the marks must
be not shorter than the mark length and not longer than 1000 mm.
A 200 max. 500 max. 1000 max. 2000 max. 2001 min.
B 4 min. 8 min. 15 min. 25 min. 35 to 40
Mark Form : Type 1 Mark Form : Type 2
Distance between
registration marks =
Between mark length (a) x2
and 1000 mm
50 to 3000 mm
Distance between
registration marks =
Between mark length
(a) and 1000 mm
