47

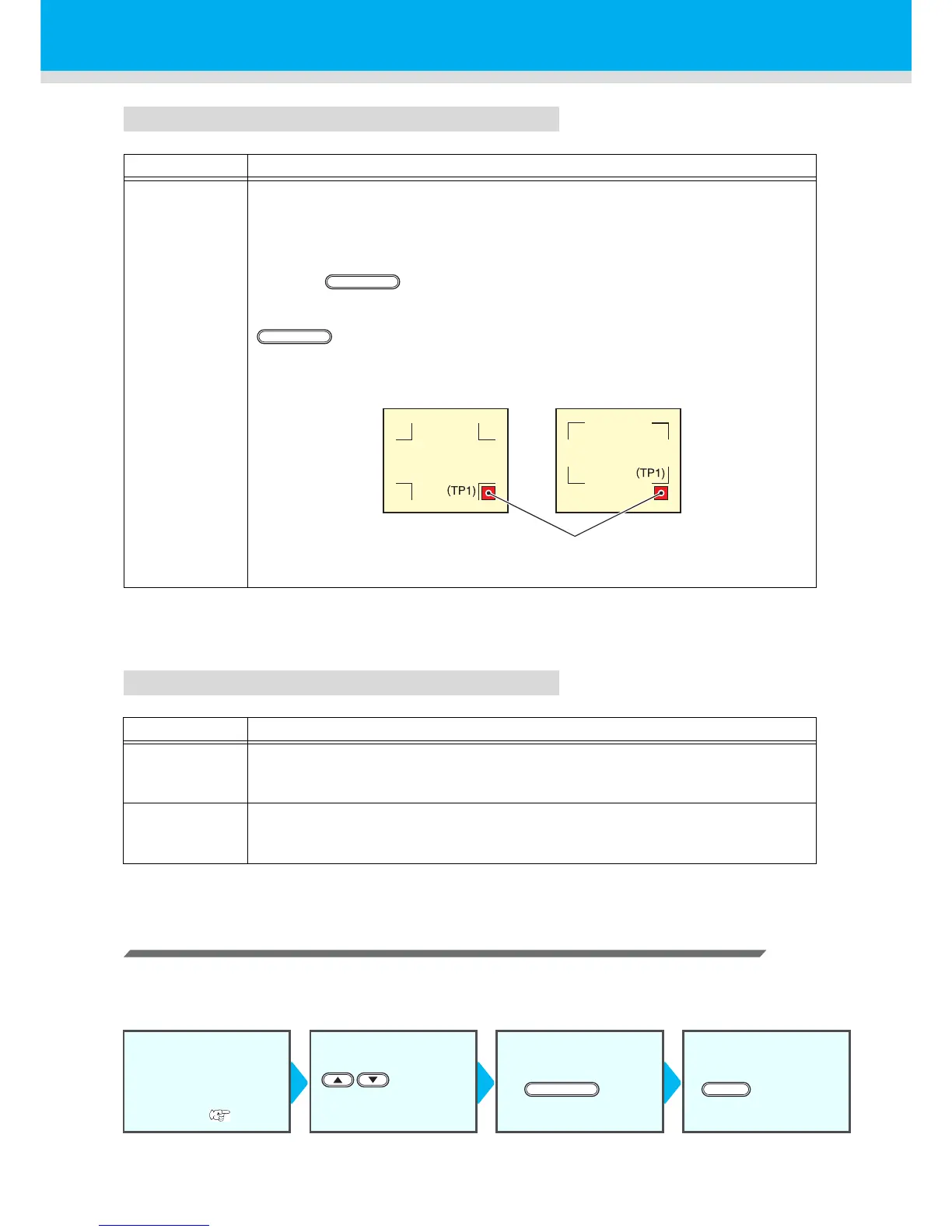

SKEW CHECK
DETECT MODE
Reset the Setting of Registration Mark Detection
In case the plotter detects the sheet that has no printing of registration marks and displays
[SEARCH START POS] you must set the registration mark detection to “OFF.”
Then, the registration mark detection becomes rendered ineffective.
Setting Description
0 ～ 99mm
Set the allowable range of the sheet feeding error when performing continuous
copy.
During continuous copying on a roll sheet, copies may be misaligned little by little
because of sheet skewing. If the error in the B-axis coordinate of the TP1 mark
has exceeded the allowable range, cutting operation is temporally stopped.
Press the key after correcting the sheet feeding error. Then the plotter
waits for mark detection.
Move the light pointer to the position shown below with jog keys and press the
key. Then the light pointer starts mark detection. If skew check is to be
omitted, set the value to “0” .
Setting Description
FAST
The position is determined by scanning the registration mark segment back and
forth once.
Time required for detection is short, however, the accuracy becomes lower a little.
PREC
After scanning the registration mark segment back and forth once, measures the
position without fail by scanning the segment included its outside again.
Time required for detection becomes slightly longer.
Follow the Steps 1
to 5 of "Set for
Detecting the
Registration
Marks"
( P.43)
Press the jog key
to select
“OFF.”
Press the
key.
Press the
key twice.
To Next Page
