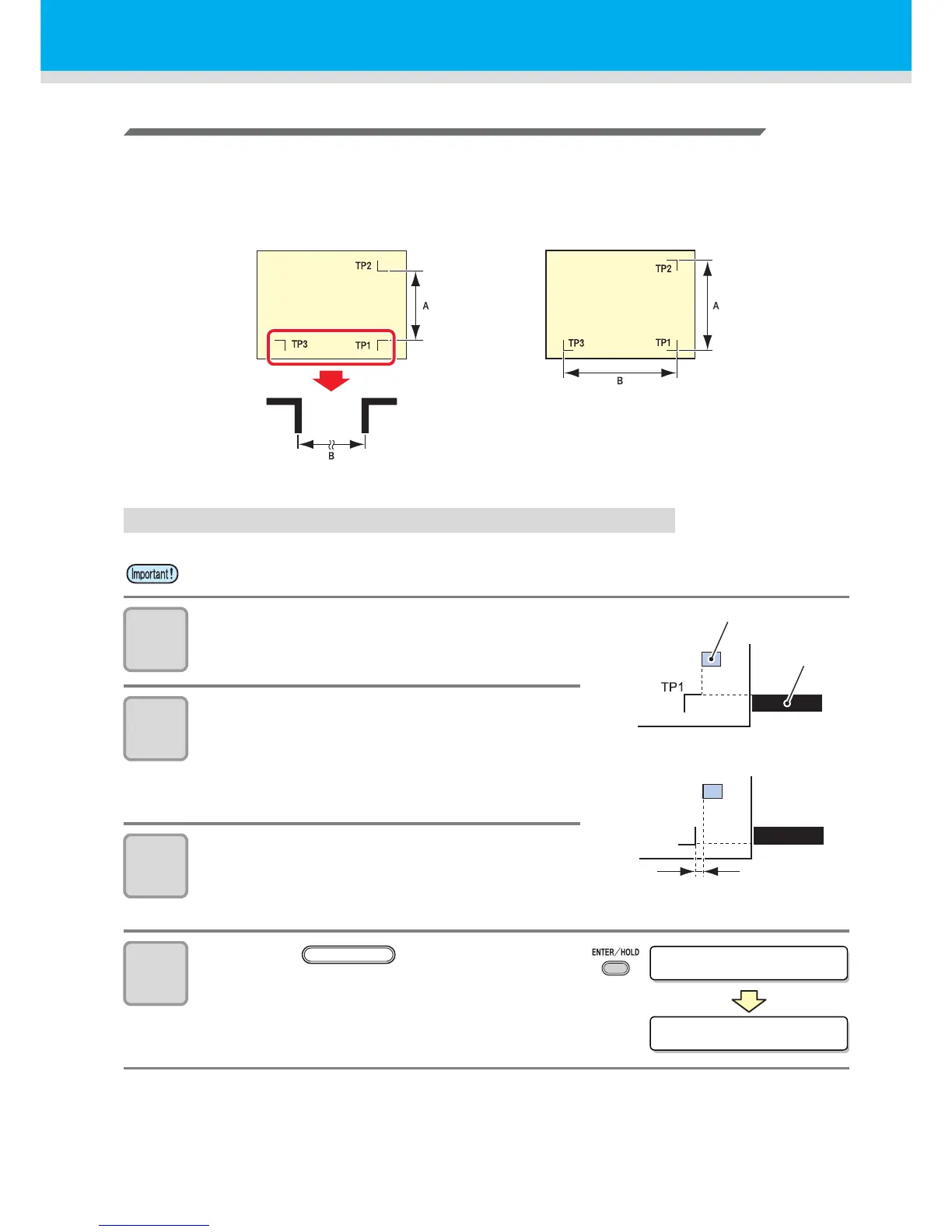

Full-automatic detection of marks
Use this function to correct the error in the detected length between registration marks as compared with
the printed length between registration marks. For this purpose, measure the length A and B on the data
beforehand.
Measure the length between the registration marks.
Detecting procedure ( [DIST.REVI.] Setting value is “BEFOR”)
1
Measure the lengths A and B on the
data to be output.
2
Place TP1 at a location shown at right.
• If it is impossible to place the registration
mark TP1 at the location shown in the
sketch, follow the procedure for “Semi-
automatic registration mark detection”.
3
You must take care to tighten the sheet,
and raise the clamp lever.
• Then the pinch rollers will retain the sheet.
4
Press the key.
• The scale compensation display appears
after detecting only the sheet width. (The
right figure shows the 4-point detection
display as an example.)
• Be sure to set the sheet in the rear.
Mark: Type 1 Mark: Type 2
5mm
Mark: Type 1
Mark: Type 2
Pinch roller
Cutting line
of plotter
ROL L < R > LEAF
A(1-2)=***.*
ENTER/HOLD
