Accutorr V Operating Instructions 0070-10-0699-02 4 - 7
User Maintenance Recorder Maintenance
4.6 Recorder Maintenance

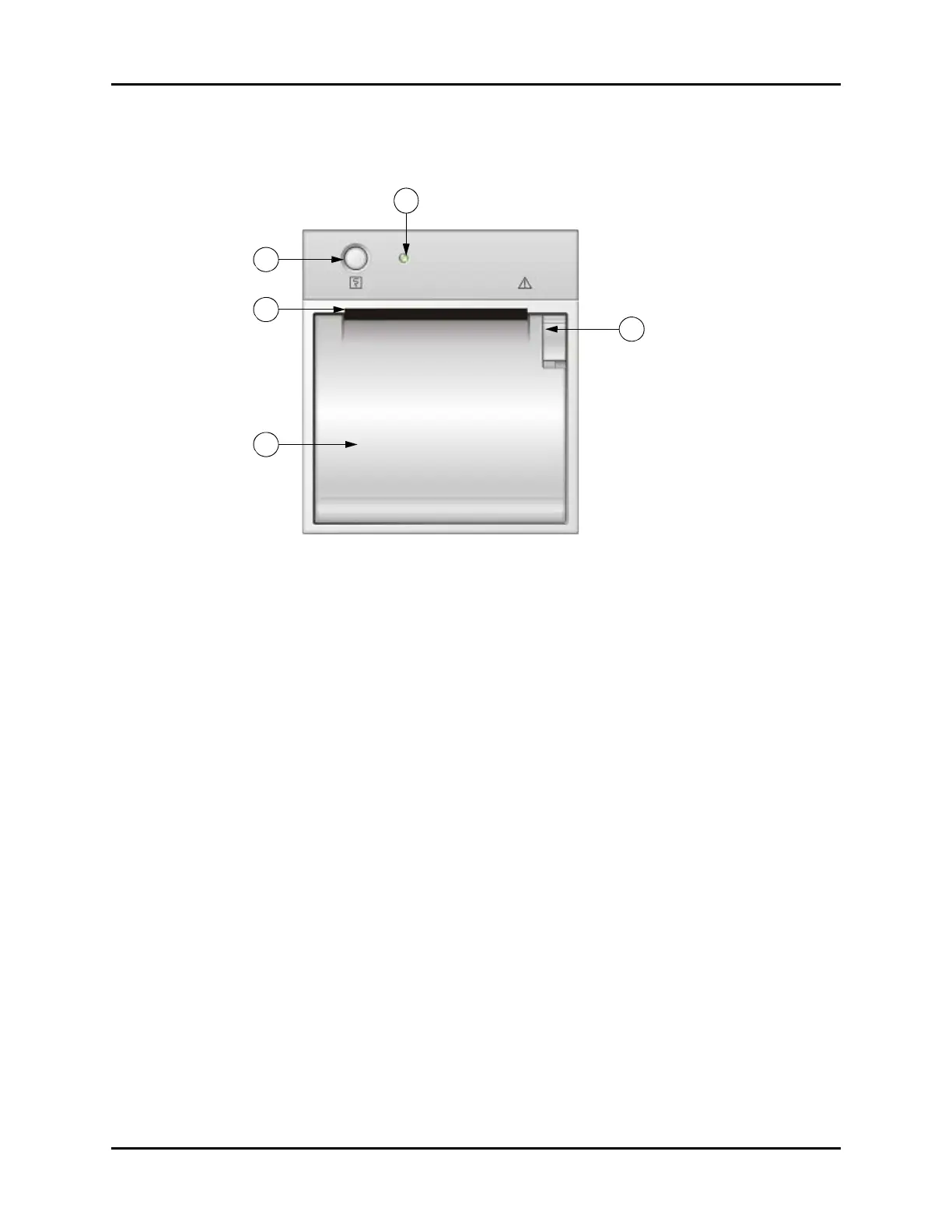

FIGURE 4-2 Accutorr V — Recorder Module
1. Print button
2. Paper outlet
3. Recorder door
Open this door to access the recorder paper.
4. Power indicator
5. Recorder door latch
Gently pull down on this latch to open the recorder door.
4.6.1 Recorder Paper Replacement
The instructions below describe the replacement of recorder paper. Use only recommended
recorder paper (P/N 0683-00-0505-02.) This ensures that the print quality is acceptable
and reduces printer head wear.
1. Open the recorder door, located on the left side panel, by pulling down on the recorder
door latch, located on the upper right side of the recorder door.
NOTE: If the recorder door does not open completely, carefully pull
the door until it is completely open.
2
3
4
5
1
To Next Page
