Operation Viewing and Deleting Stored Trend Data
3.9 Viewing and Deleting Stored Trend Data
The Accutorr V displays trend data for configured parameters. The displayed contents of a
full configuration include data in trend tables for all working parameters: systolic pressure,
diastolic pressure, mean pressure, SpO
2
, pulse rate, temperature, measurement time, patient
ID, and patient type.
3.9.1 Storing Measurements
The Accutorr V automatically stores measurements in trend memory. It stores a maximum of
1,200 rows of data. When the trend memory is full, the Accutorr V automatically deletes the
oldest data for the currently displayed patient.
The Accutorr V stores SpO
2
and monitor mode Temp values once every 30 seconds and
when an NIBP measurement is acquired. It stores NIBP and predictive mode temperature
values when the measurements are acquired.
Referring to the example trend display in FIGURE 3-12, the TEMP module was in PREDICTIVE
mode, and the temperature measurement was stored with the current SpO
2
and PR
measurements when it was acquired. A minute later the NIBP module acquired and stored a
blood pressure measurement with the current SpO
2
and PR measurements. The SpO
2
module
stored measurements every 30 seconds and when temperature and blood pressure
measurements were acquired.
3.9.2 Viewing Stored/Trend Data
The LCD screen displays trend data by default as shown in FIGURE 3-12. If it is not
displayed, press (11) to change the screen to display trend data.

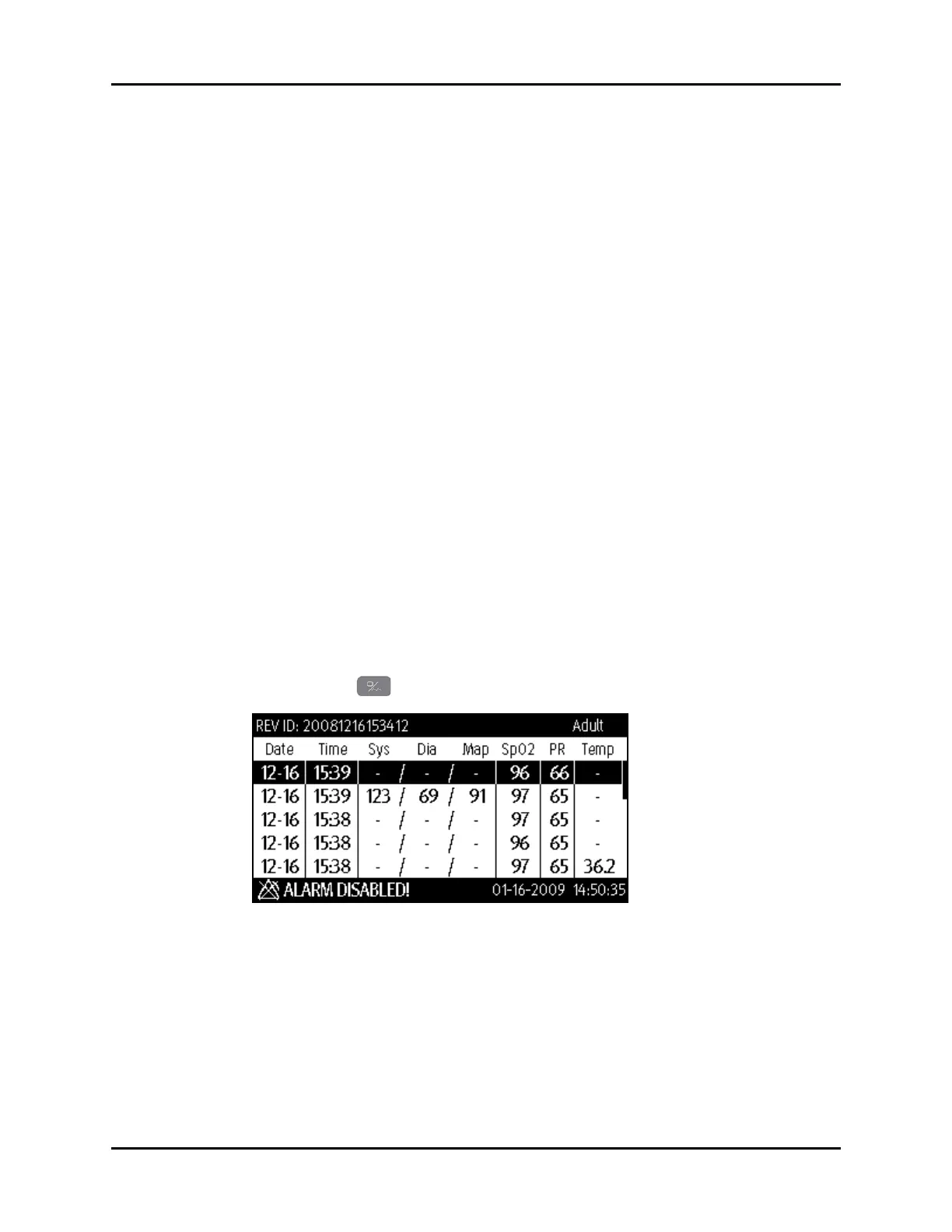

FIGURE 3-12 Example Trend Display
NOTE: If measured data is not saved, the LCD does not show trend
data.
If a measurement is invalid or not available, the LCD Display (17) shows a “–” in its place. If
an NIBP measurement was interrupted, “XXX” shows under Sys, Dia, and Map.
