Mindray DC-70 Service Manual

Structure and Assembly/Disassembly 9-7

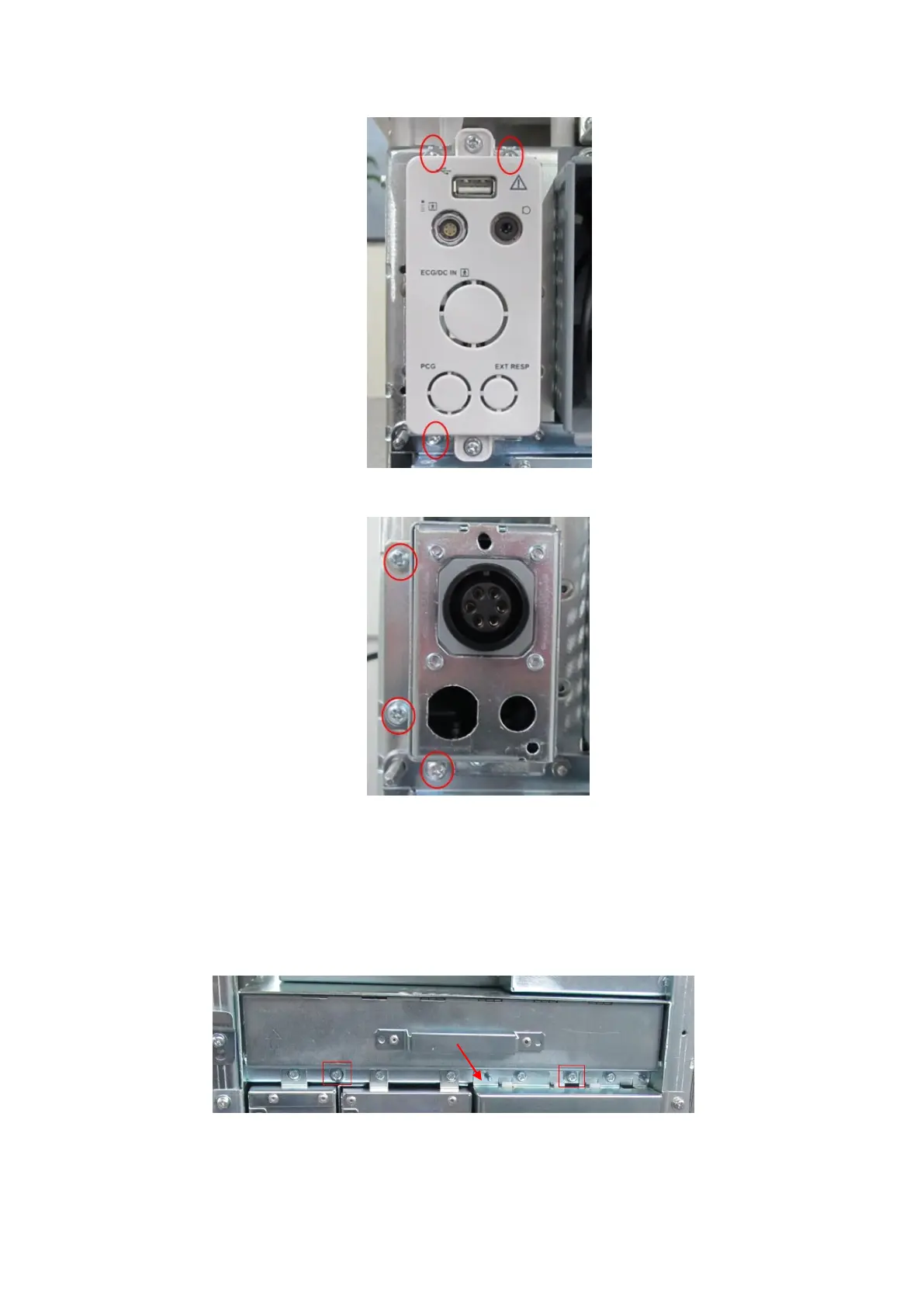

4. Unscrew three M4 X 8 screws fixing ECG assembly, and pull ECG assembly out.
9.3.4 Outlet Fan
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Follow step 1 in Chapter 9.3.2 to remove left side panel.
2. Unscrew two M4 X 8 screws fixing the frame of the fan. Hold the metal handle to pull the fan
assembly out.
3. Unscrew 12 screws fixing the fan.

Mindray DC-70 Specifications

General

Power Supply	100-240V AC, 50/60Hz
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array, Volume
Connectivity	USB, Ethernet, VGA
Advanced Features	3D/4D Imaging
Applications	Abdominal, Obstetrics, Gynecology, Cardiac, Small Parts, Vascular, Musculoskeletal, Urology
Weight	Approx. 85 kg
Operating System	Windows-based
