Mindray DC-70 Service Manual

3-8 System Installation

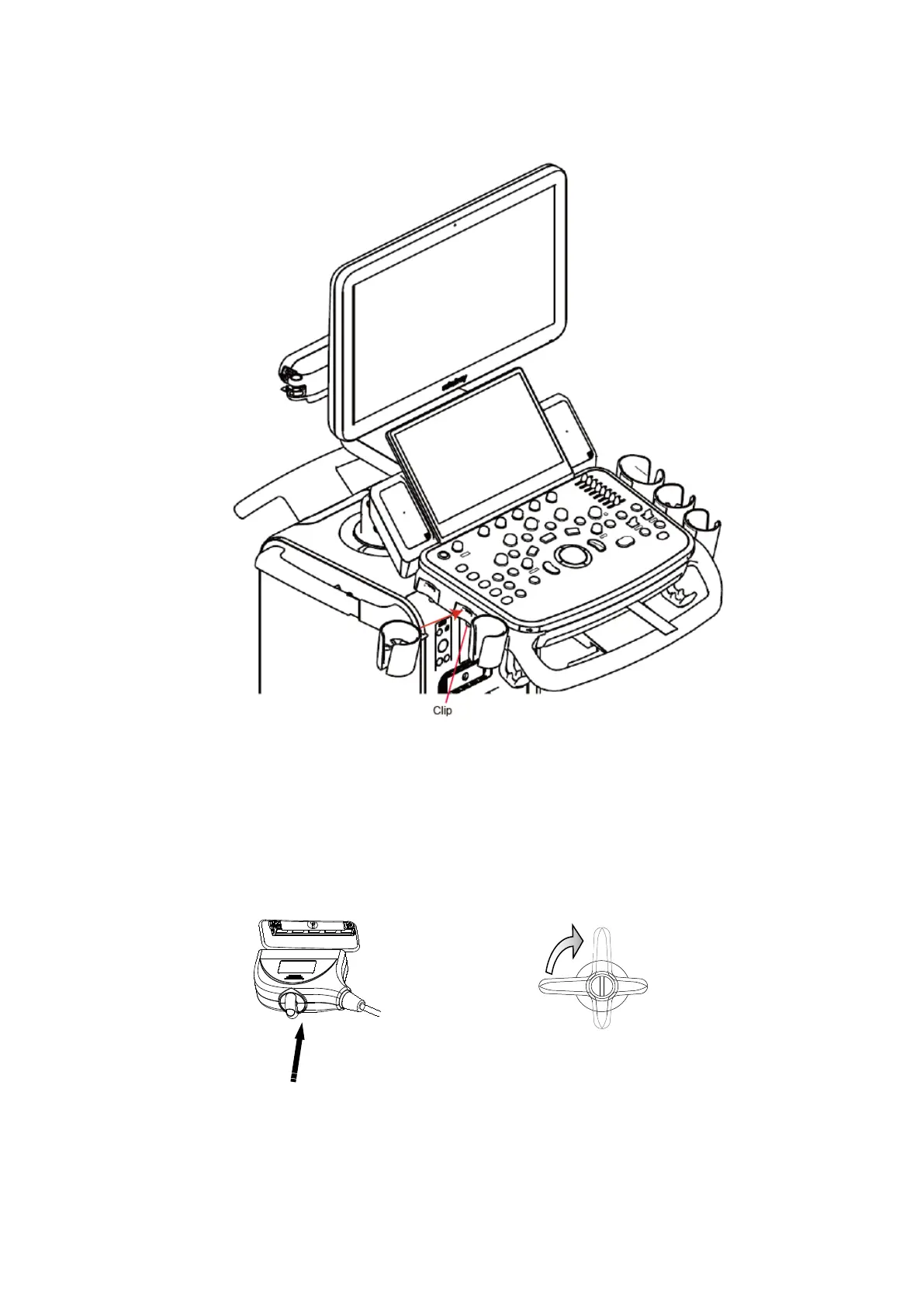

 Uninstalling
Press the clip in the direction of the arrow to get out the holder.
3.3.5 Connecting the Transducer
Four sockets (A, B, C, D) are configured on the system; every socket can be connected with all
types of supported transducers.
1. Keep the cable end of the transducer to the right side of the system, and insert the connector
into the socket of the system, and then press in fully. (Shown as the left figure)
2. Turn the lock handle 90° clockwise to lock it securely. (Shown as the right figure)
Lock

Mindray DC-70 Specifications

General

Power Supply	100-240V AC, 50/60Hz
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array, Volume
Connectivity	USB, Ethernet, VGA
Advanced Features	3D/4D Imaging
Applications	Abdominal, Obstetrics, Gynecology, Cardiac, Small Parts, Vascular, Musculoskeletal, Urology
Weight	Approx. 85 kg
Operating System	Windows-based
