Mindray DC-70 Service Manual

Structure and Assembly/Disassembly 9-15

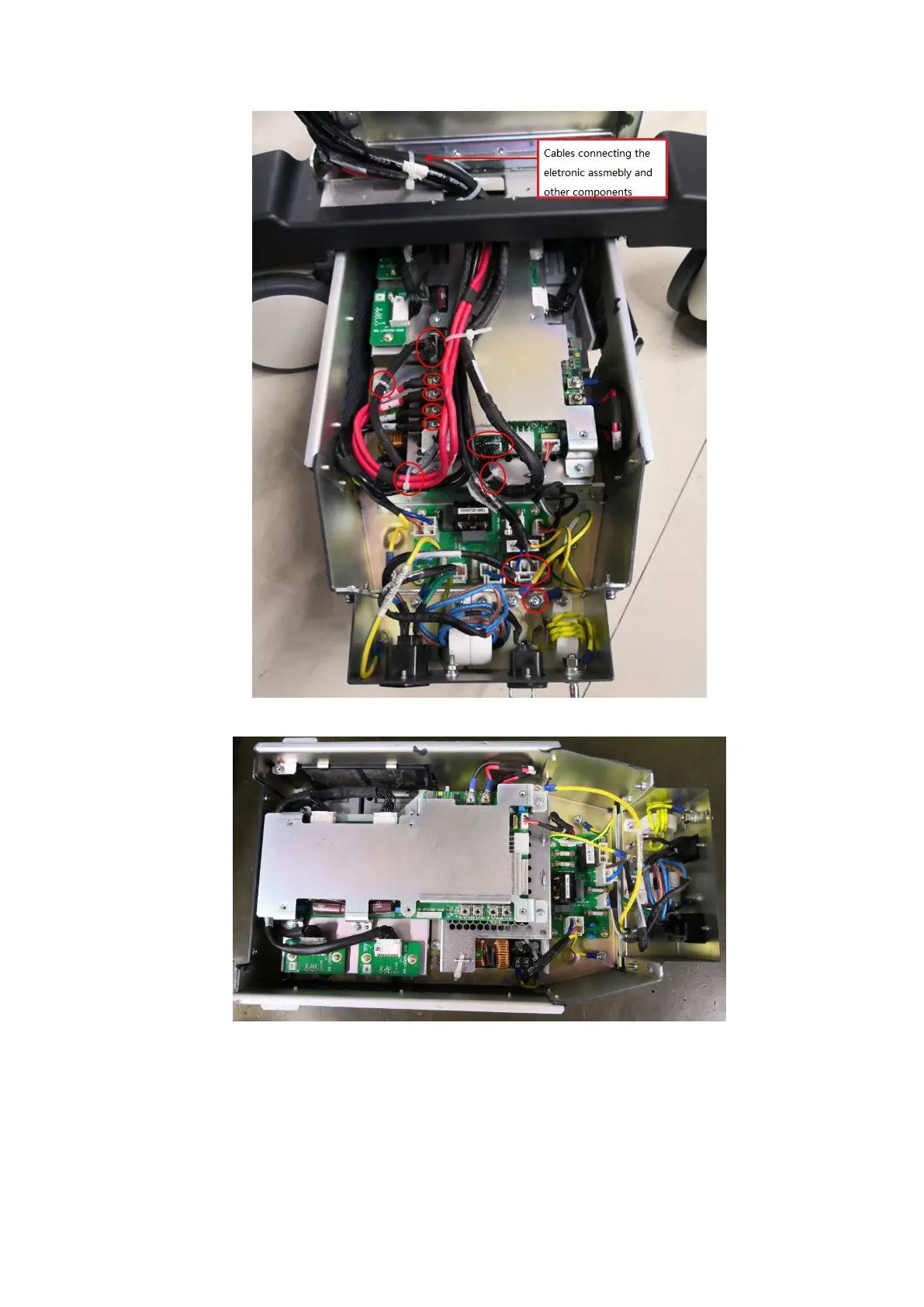

6. Remove the whole electronic assembly (including power supply assembly) from the system.
9.3.9 DC Box Assembly
The disassembly tool: cross-headed screwdriver (M3, M4), anti-electrostatic glove
1. Follow step 1 in Chapter 9.3.2 to remove the left side panel.
