Mindray DC-70 Service Manual

9-24 Structure and Assembly/Disassembly

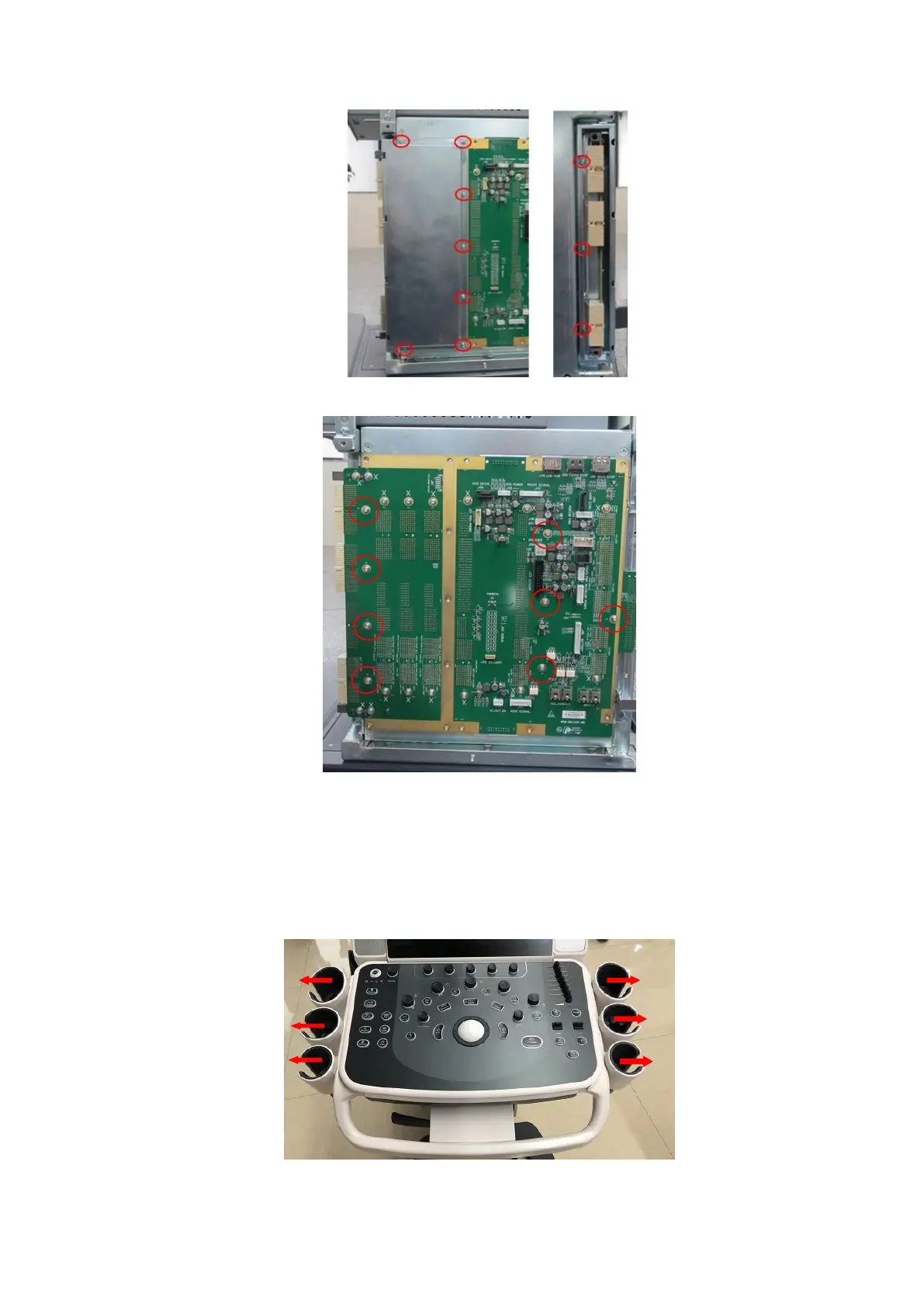

8. Unscrew eight M3 X 8 screws to pull the mother board out.
9.3.15 Control Panel Assembly
The disassembly tool: cross-headed screwdriver (M3, M4), diagonal cutting pliers, anti-electrostatic
glove.
1. Remove the holders on both sides. Press the clips inwards. Lift the holders to both sides to
remove them.

Mindray DC-70 Specifications

General

Power Supply	100-240V AC, 50/60Hz
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array, Volume
Connectivity	USB, Ethernet, VGA
Advanced Features	3D/4D Imaging
Applications	Abdominal, Obstetrics, Gynecology, Cardiac, Small Parts, Vascular, Musculoskeletal, Urology
Weight	Approx. 85 kg
Operating System	Windows-based
