Mindray DC-70 Service Manual

Name: Mindray DC-70
Brand: Mindray
Rating: 4 (1 reviews)

295 pages

To Next Page

To Previous Page

Structure and Assembly/Disassembly 9-25

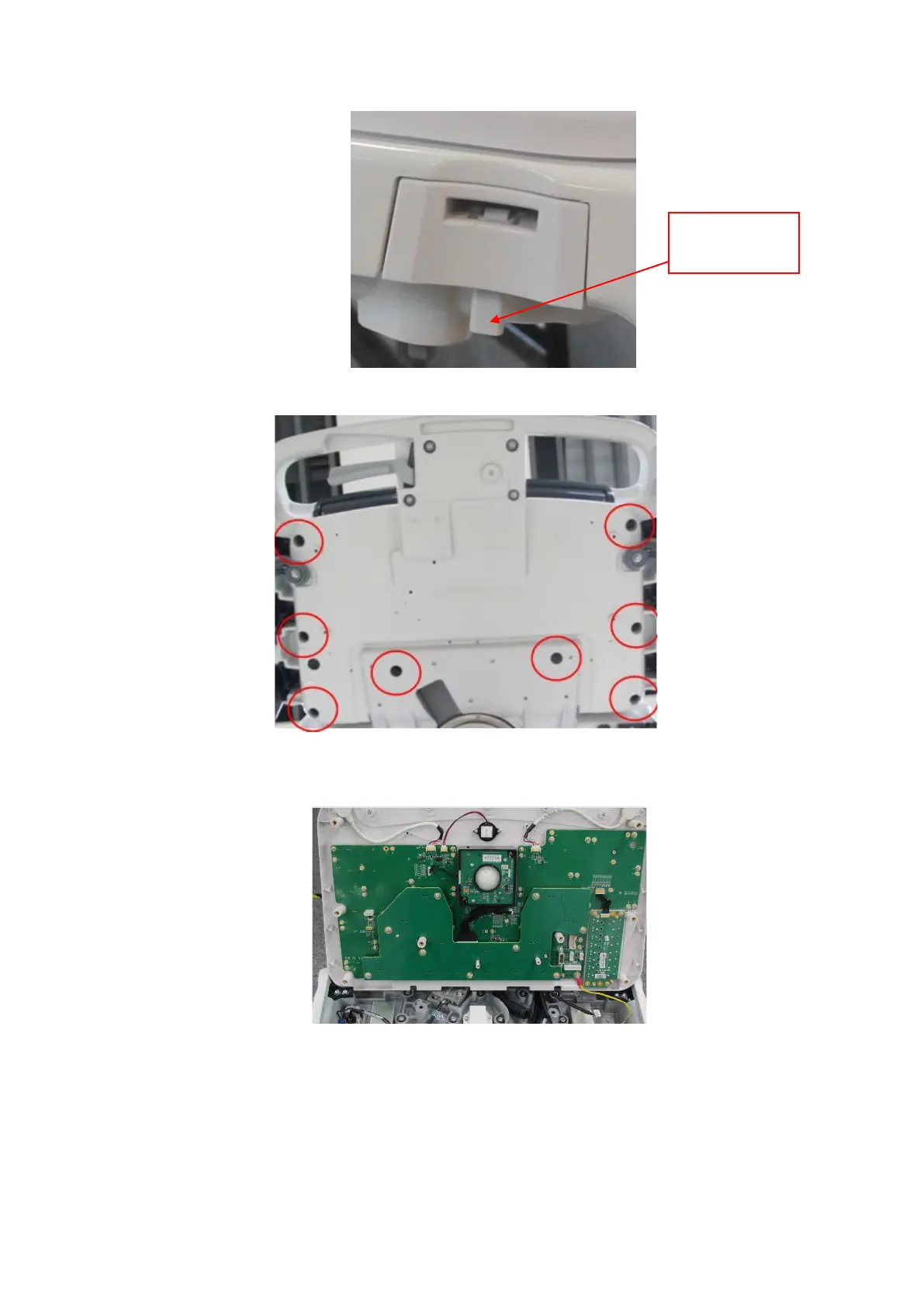

2. Unscrew eight M4 X 12 screws on the control panel assembly.

3. Lift the upper cover up around the margin. Disconnect all plugs on the upper cover. The control

panel and the main unit fall apart then.

4. Unscrew the M3 X 8 screw on the cast-aluminum base to remove the control panel assembly.

Press the clips

inwards

Questions and Answers:

Need help?

Do you have a question about the Mindray DC-70 and is the answer not in the manual?

General

Power Supply	100-240V AC, 50/60Hz
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array, Volume
Connectivity	USB, Ethernet, VGA
Advanced Features	3D/4D Imaging
Applications	Abdominal, Obstetrics, Gynecology, Cardiac, Small Parts, Vascular, Musculoskeletal, Urology
Weight	Approx. 85 kg
Operating System	Windows-based
