Mindray DC-70 Service Manual

9-34 Structure and Assembly/Disassembly

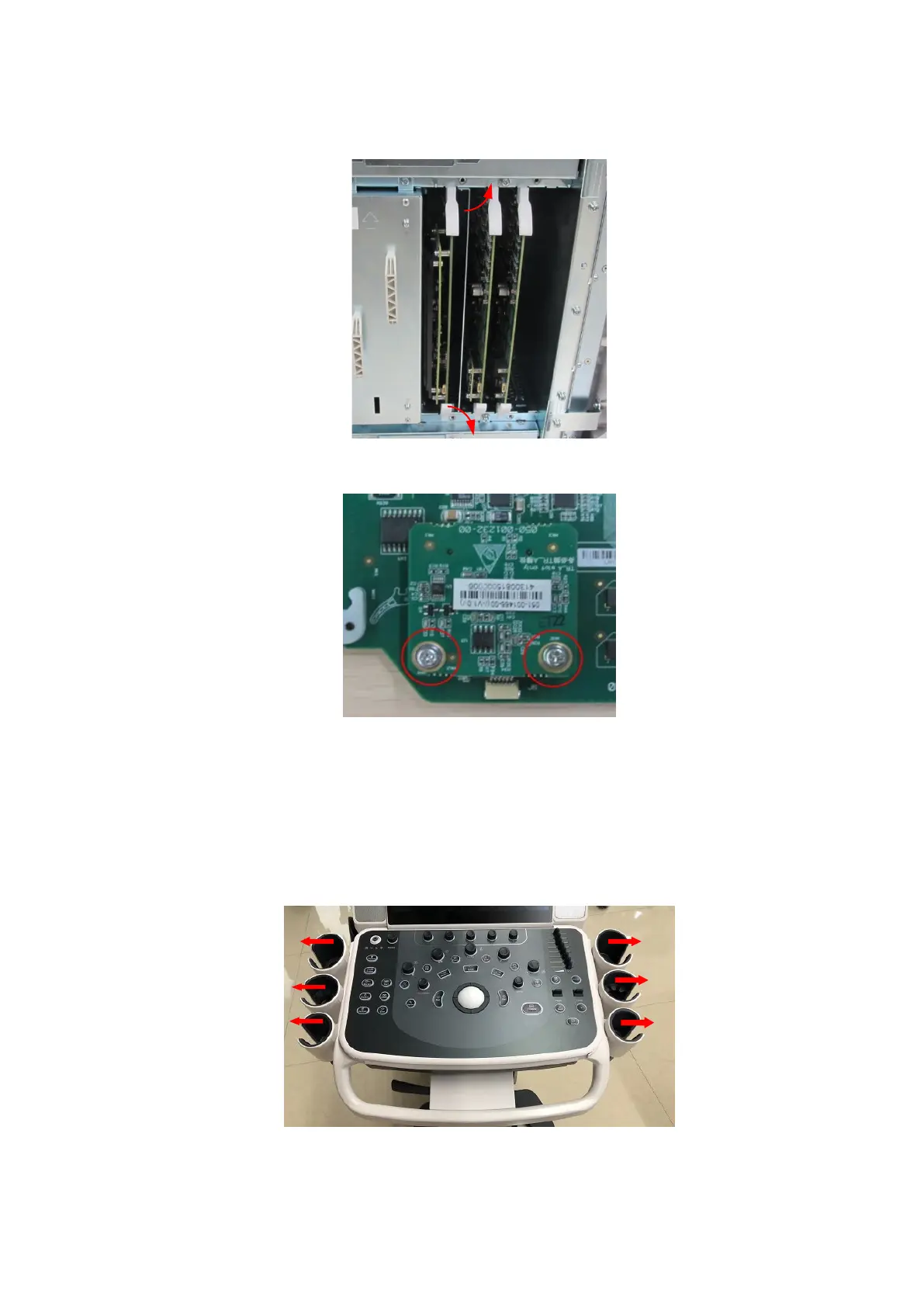

3. And remove TR board as shown in the figure below.
4. Unscrew two M3 X 8 screws to remove the material package of CW assembly.
9.3.21 Support Arm Assembly of the Control Panel
The disassembly tool: cross-headed screwdriver (M3, M4), sharp nose pliers, flat nose pliers.
1. Remove the holders on both sides. Press the clips inwards. Lift the holders to both sides to
remove them.

Mindray DC-70 Specifications

General

Power Supply	100-240V AC, 50/60Hz
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array, Volume
Connectivity	USB, Ethernet, VGA
Advanced Features	3D/4D Imaging
Applications	Abdominal, Obstetrics, Gynecology, Cardiac, Small Parts, Vascular, Musculoskeletal, Urology
Weight	Approx. 85 kg
Operating System	Windows-based
