Mindray DC-70 Service Manual

Structure and Assembly/Disassembly 9-13
9.3.8 Electronic Assembly on the Base
The disassembly tool: cross-headed screwdriver (M3, M4), inner hex wrench (M4), scissors

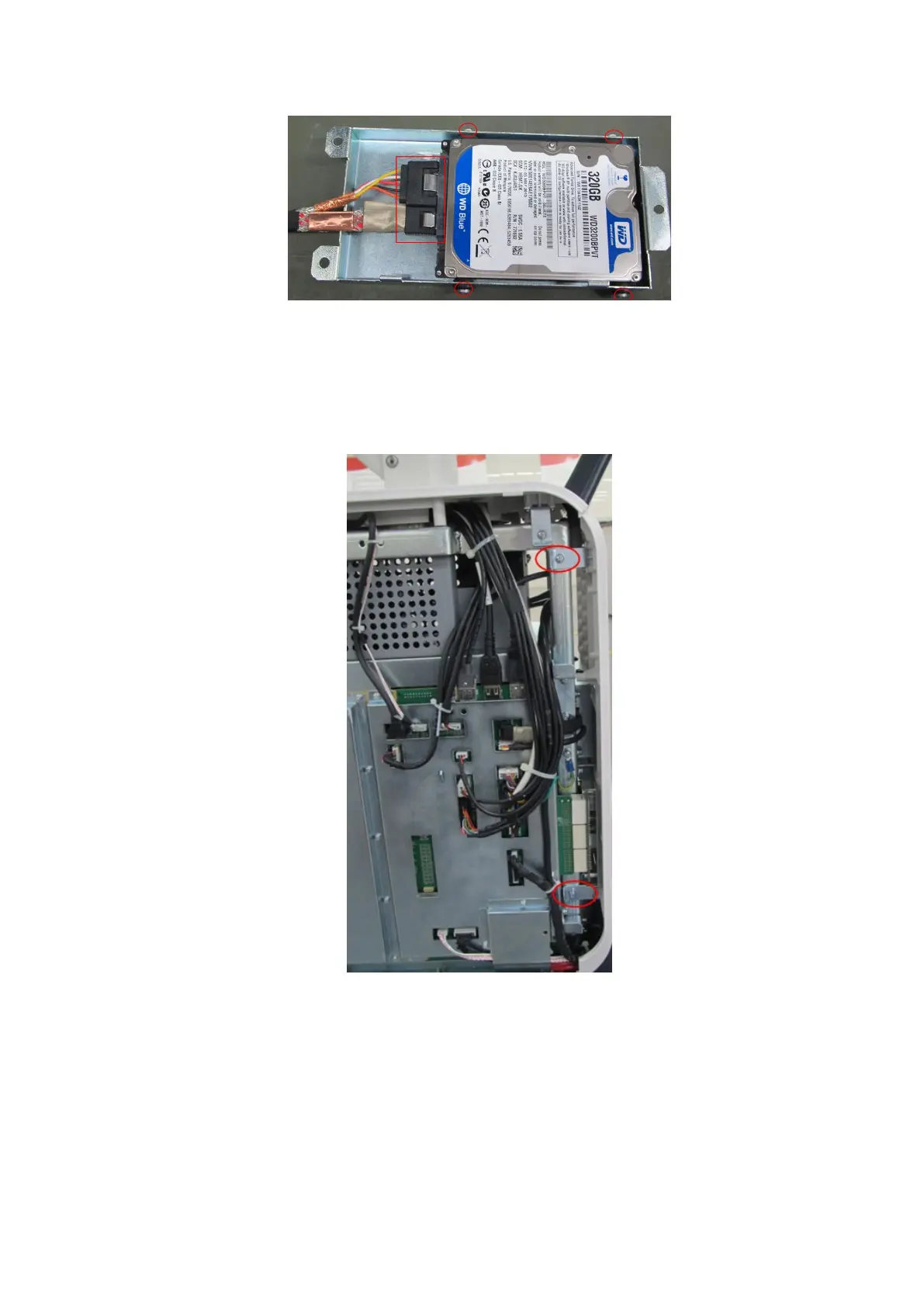

1. Follow step 1 and step 2 in Chapter 9.3.2 to remove left and right side panels.
2. Unscrew two M4 X 8 screws fixing the rear cover, and remove the rear cover.
3. Unscrew two M4 X 10 inner hex fixing bolts.

Mindray DC-70 Specifications

General

Power Supply	100-240V AC, 50/60Hz
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array, Volume
Connectivity	USB, Ethernet, VGA
Advanced Features	3D/4D Imaging
Applications	Abdominal, Obstetrics, Gynecology, Cardiac, Small Parts, Vascular, Musculoskeletal, Urology
Weight	Approx. 85 kg
Operating System	Windows-based
