Structure and Assembly/Disassembly 9-43

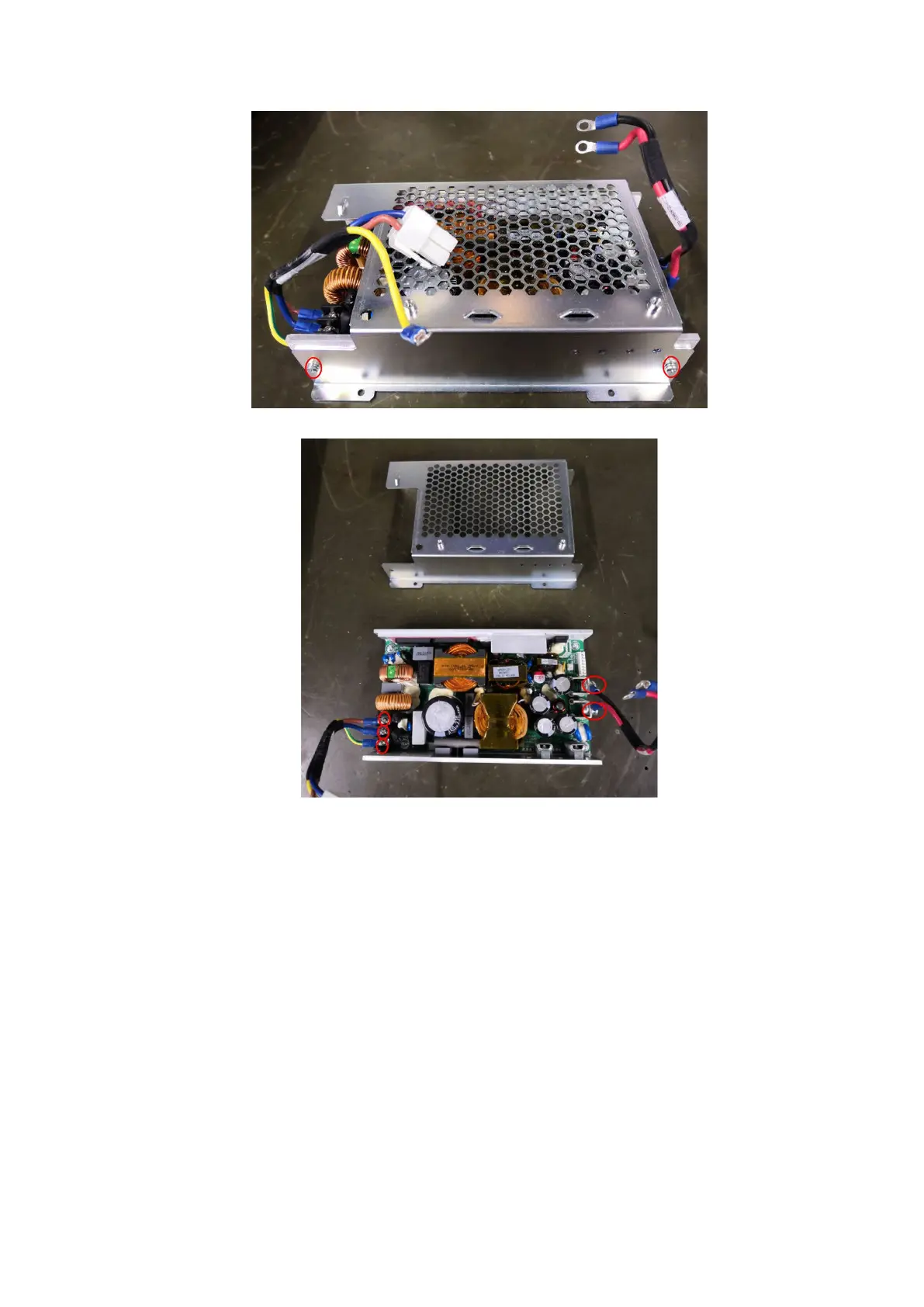

4. Unscrew the five M4 X 8 screws used to fix cables.

9.3.26 AC Connecting Board

1. Follow steps 1-6 in Chapter 9.3.8 to remove the electronic assembly (including power input

assembly).

2. Unscrew four M3 X 6 screws, disconnect four connecting plugs, and then remove AC

connecting board.
