9-10 Structure and Assembly/Disassembly

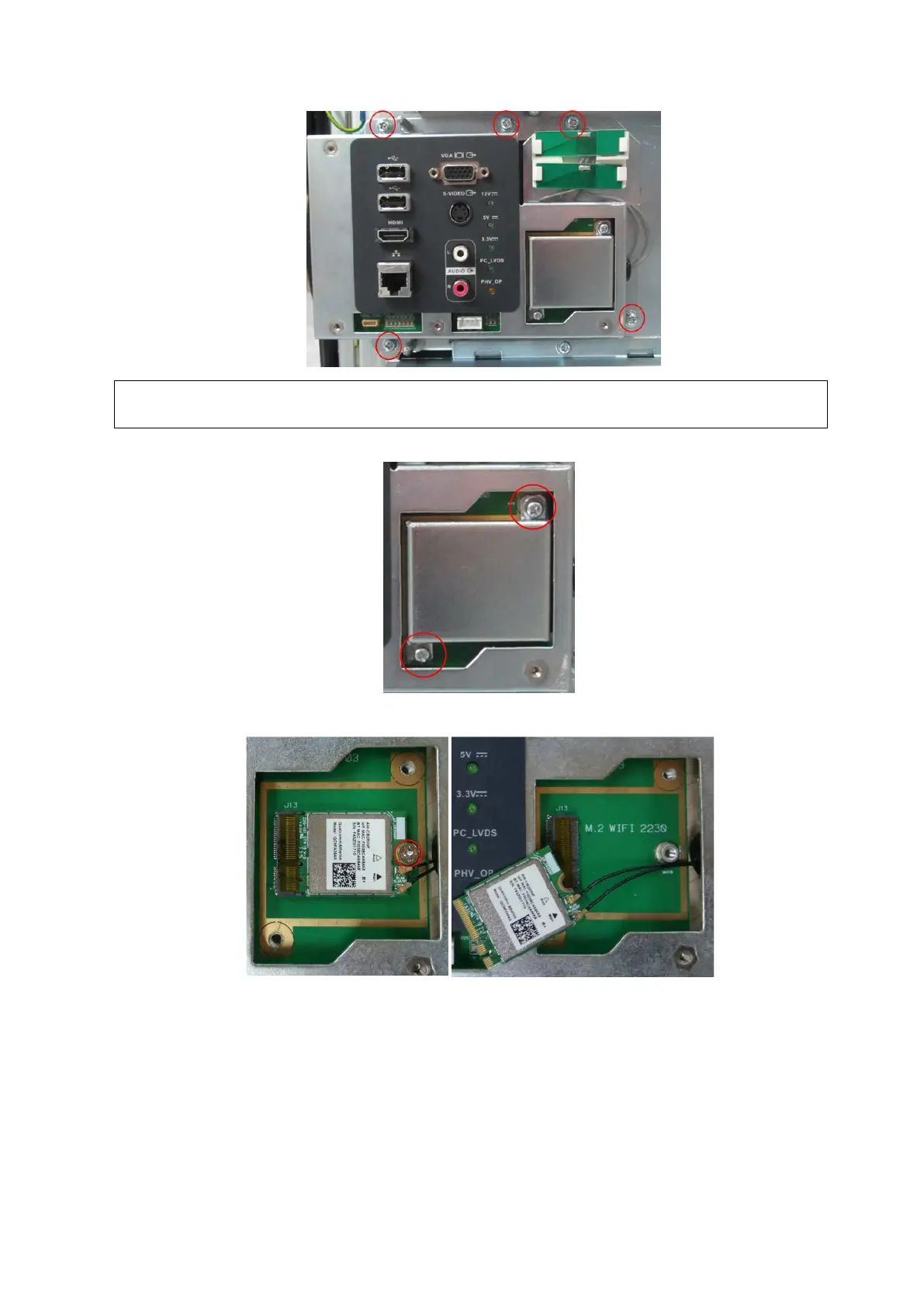

4. Unscrew two M3 X 8 screws on WIFI shield, and remove the shield.

5. Flick the elastic sheet up with two fingers, and remove WIFI board.

6. Pull two plugs out. Insert the plug into the black hole.

NOTE:

Aim the hole at the bolt in the process of installation. To avoid the damage to the

pins, snap the socket into place.
