Mindray DC-70 Service Manual

Name: Mindray DC-70
Brand: Mindray
Rating: 4 (1 reviews)

295 pages

To Next Page

To Previous Page

9-18 Structure and Assembly/Disassembly

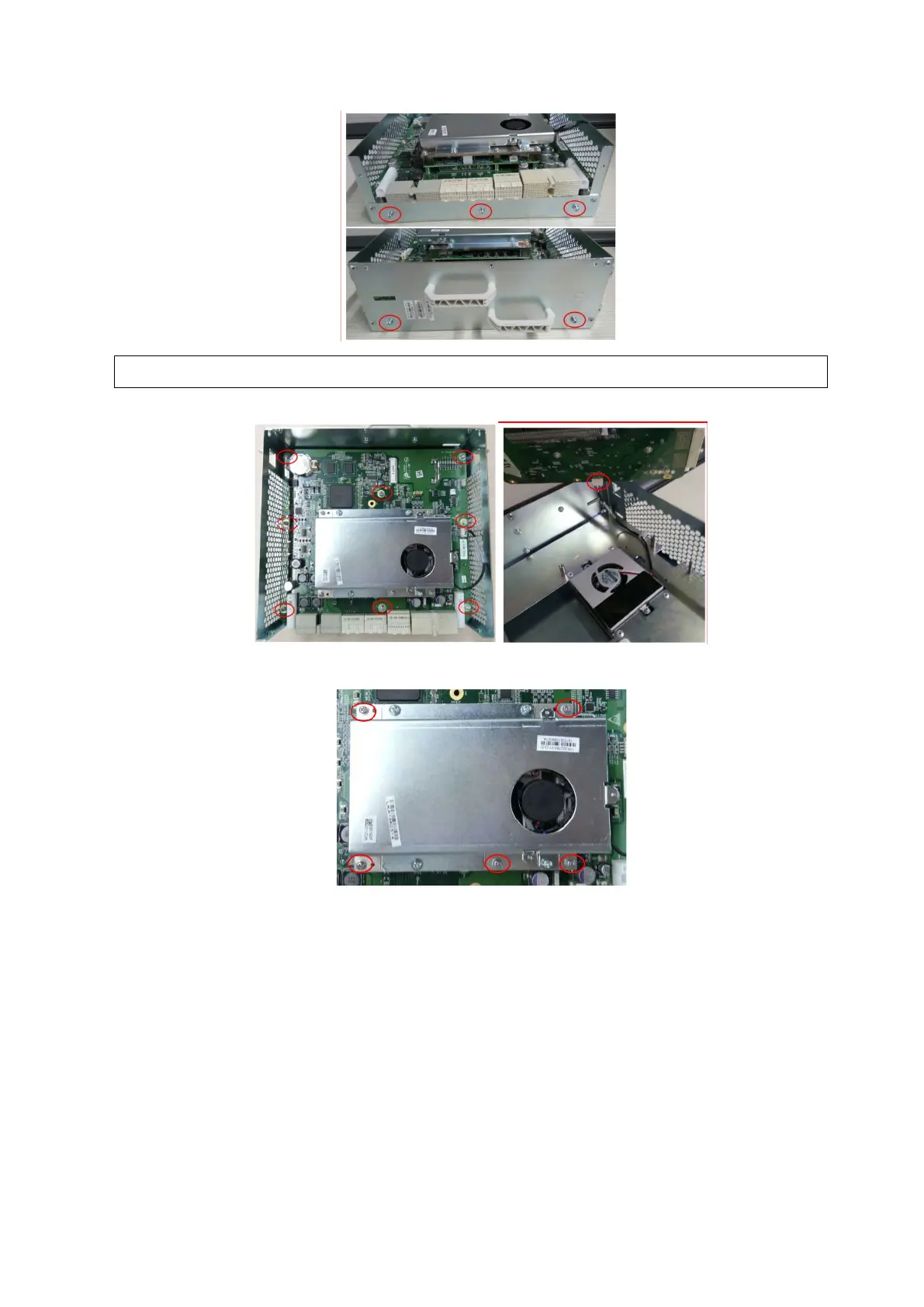

5. Unscrew eight M3 X 8 screws on metal bracket to remove digital board.

6. Unscrew five M2.5 X 20 screws on digital board to remove PC module assembly.

7. Unscrew two M3 X 6 screws on GPU to remove GPU module assembly.

NOTE:

Take notice of bolts’ place on two ends when installing.

Questions and Answers:

Need help?

Do you have a question about the Mindray DC-70 and is the answer not in the manual?

General

Power Supply	100-240V AC, 50/60Hz
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array, Volume
Connectivity	USB, Ethernet, VGA
Advanced Features	3D/4D Imaging
Applications	Abdominal, Obstetrics, Gynecology, Cardiac, Small Parts, Vascular, Musculoskeletal, Urology
Weight	Approx. 85 kg
Operating System	Windows-based
