Mindray DC-70 Service Manual

9-30 Structure and Assembly/Disassembly

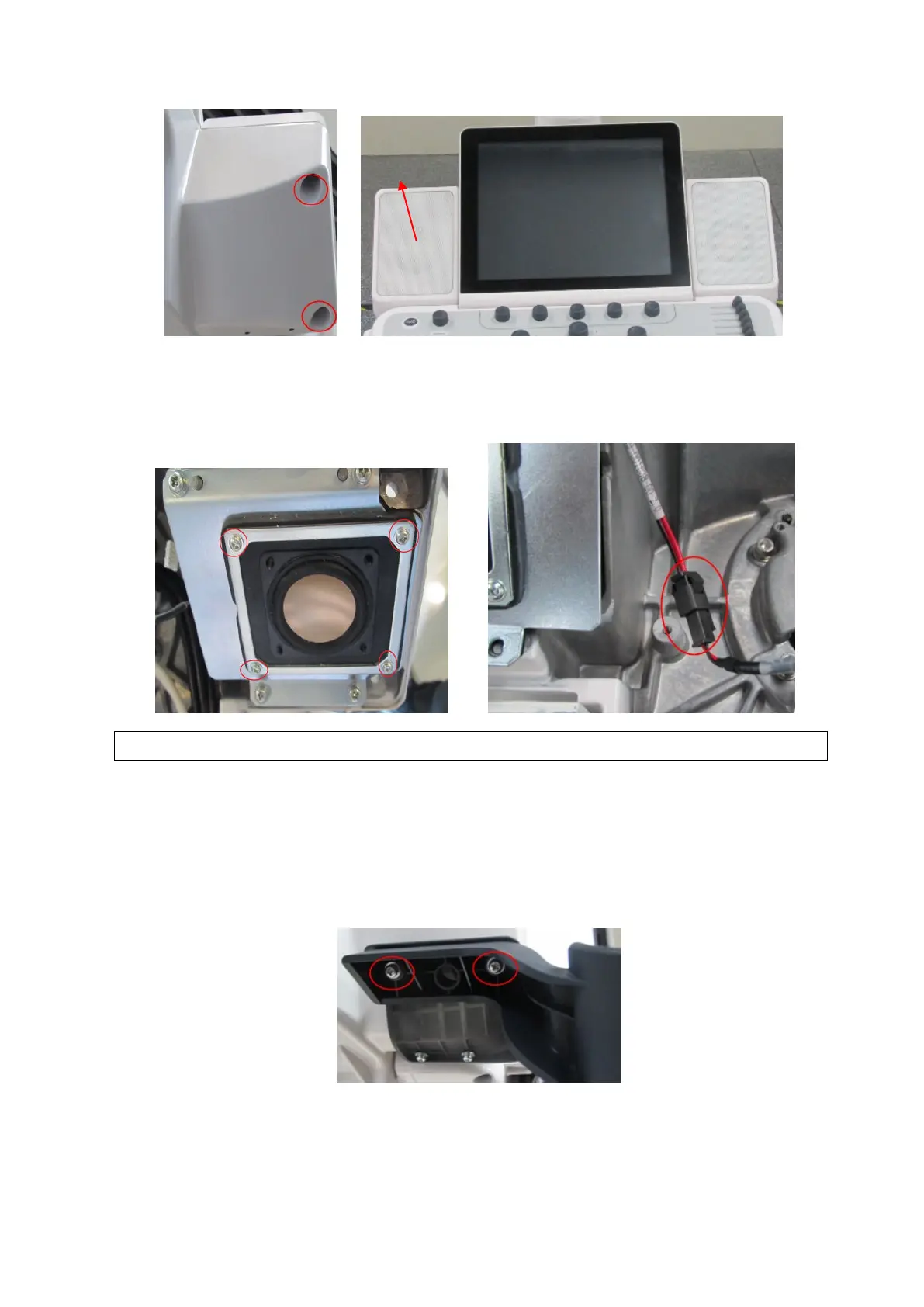

2. Unscrew four M3 X 8 SEMS screws from the speaker to remove it. Disconnect the cables
connecting the speaker to the main unit to remove the speaker assembly. Same procedures to
remove right assembly.
9.3.17 Intra-cavity Probe Holder and Disassembly of
Switching Part
The disassembly tool: cross-headed screwdriver (M3, M4).
1. Unscrew two screws M4 X 12 SEMS screws from intra-cavity probe holder to remove it.
2. Unscrew two screws M4 X 12 SEMS screws from switching part to remove it.
NOTE: To avoid incorrect installation, please take notice of the position of the speakers.

Mindray DC-70 Specifications

General

Power Supply	100-240V AC, 50/60Hz
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array, Volume
Connectivity	USB, Ethernet, VGA
Advanced Features	3D/4D Imaging
Applications	Abdominal, Obstetrics, Gynecology, Cardiac, Small Parts, Vascular, Musculoskeletal, Urology
Weight	Approx. 85 kg
Operating System	Windows-based
