Mindray DC-70 Service Manual

9-36 Structure and Assembly/Disassembly

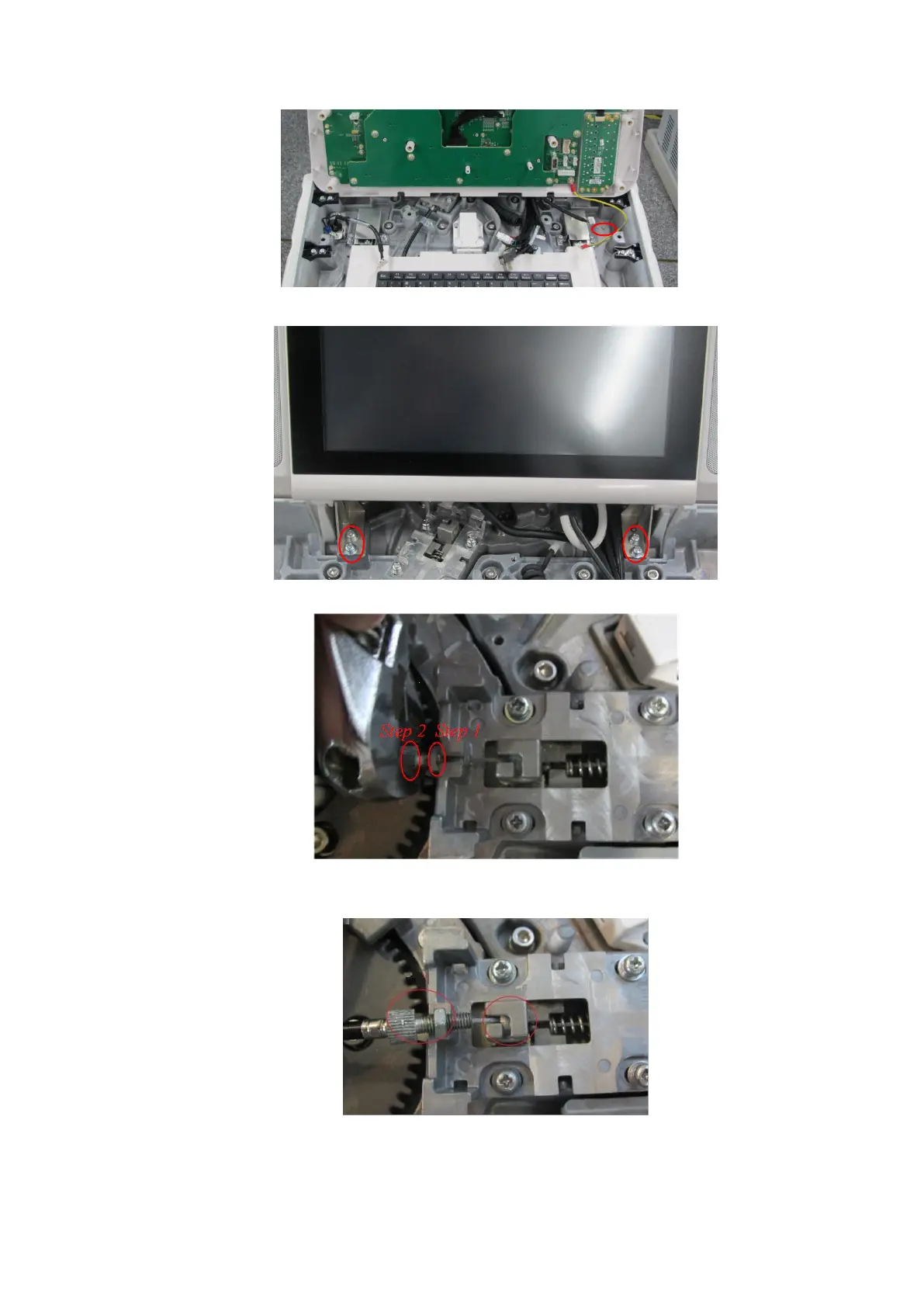

5. Unscrew four M4 X 12 combination screws from the touch screen assembly to remove it.
1. Unfasten the screw, and then remove the bolt. Take the guide cable out of the slot.
2. Disassemble the two parts as shown in the following figure. Take the cylinder-shaped part out of
the dragline. The dragline and the arm fall apart then.
3. Unscrew four M4 X 12 screws around the loudspeaker.
1. Separate the column
2. Take out the column

Mindray DC-70 Specifications

General

Power Supply	100-240V AC, 50/60Hz
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array, Volume
Connectivity	USB, Ethernet, VGA
Advanced Features	3D/4D Imaging
Applications	Abdominal, Obstetrics, Gynecology, Cardiac, Small Parts, Vascular, Musculoskeletal, Urology
Weight	Approx. 85 kg
Operating System	Windows-based
