Mindray DC-70 Service Manual

9-46 Structure and Assembly/Disassembly
9.3.28.3 Bottom Cover

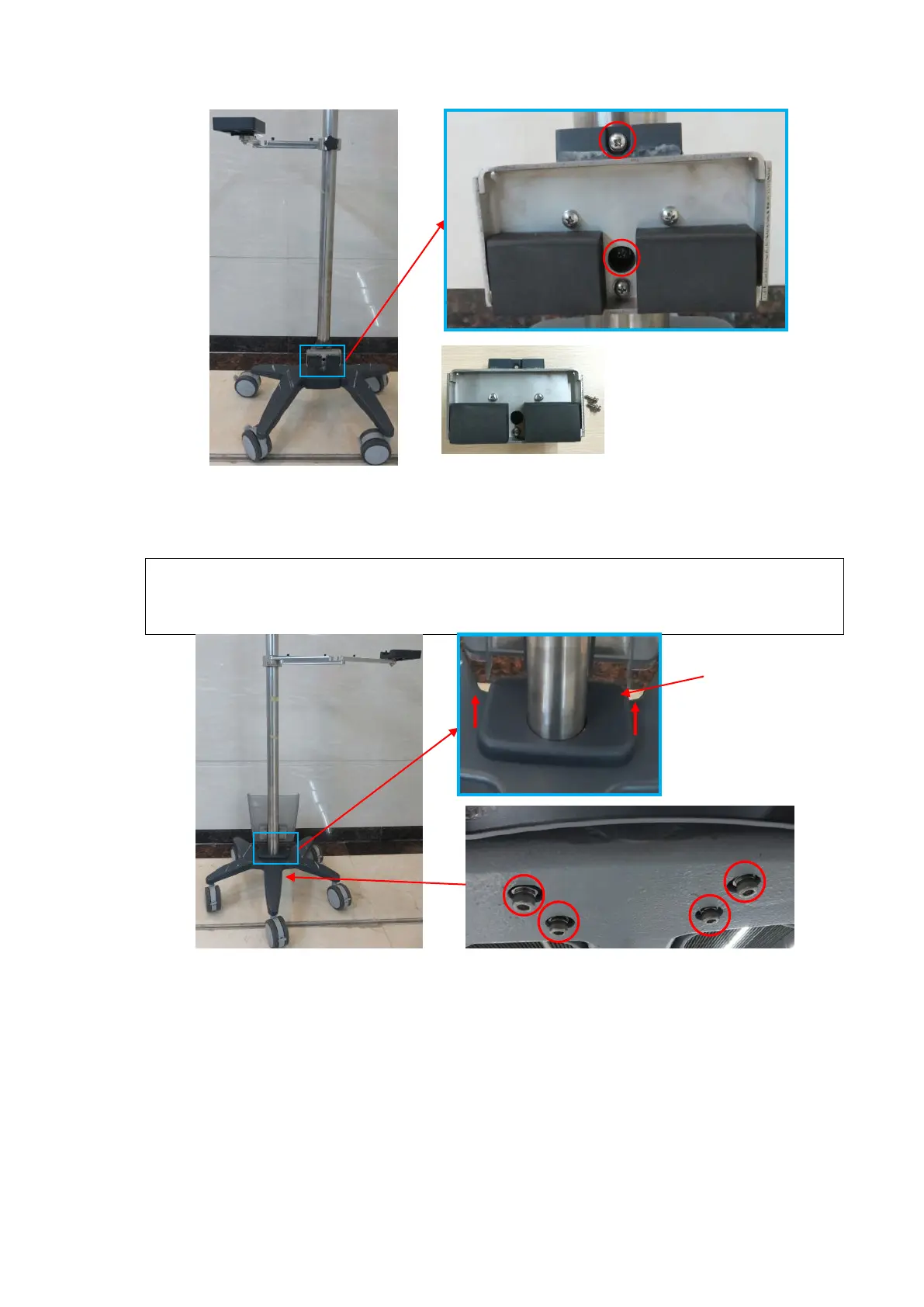

1. Remove the shield cover from the fixture. Unscrew the M6 X 30 (*4) round inner head screws
(with the pad) with M6 spanner to lift the upper part of the standing pole.
Note:
In case of the scratch to the base assembly when removing the standing pole,
check whether the shield cover is lifted completely.
In case of injury to the personnel, hold the standing pole when untightening the
inner screws.
2. Unscrew M6 X 20 (*5) round inner head screws (with pads) with the M6 screwdriver to remove
the bottom cover.
Shield cover
Trolley bottom view
C
onnecting base assembly
(FRU)
