Mindray DC-70 Service Manual

Specifications 2-3

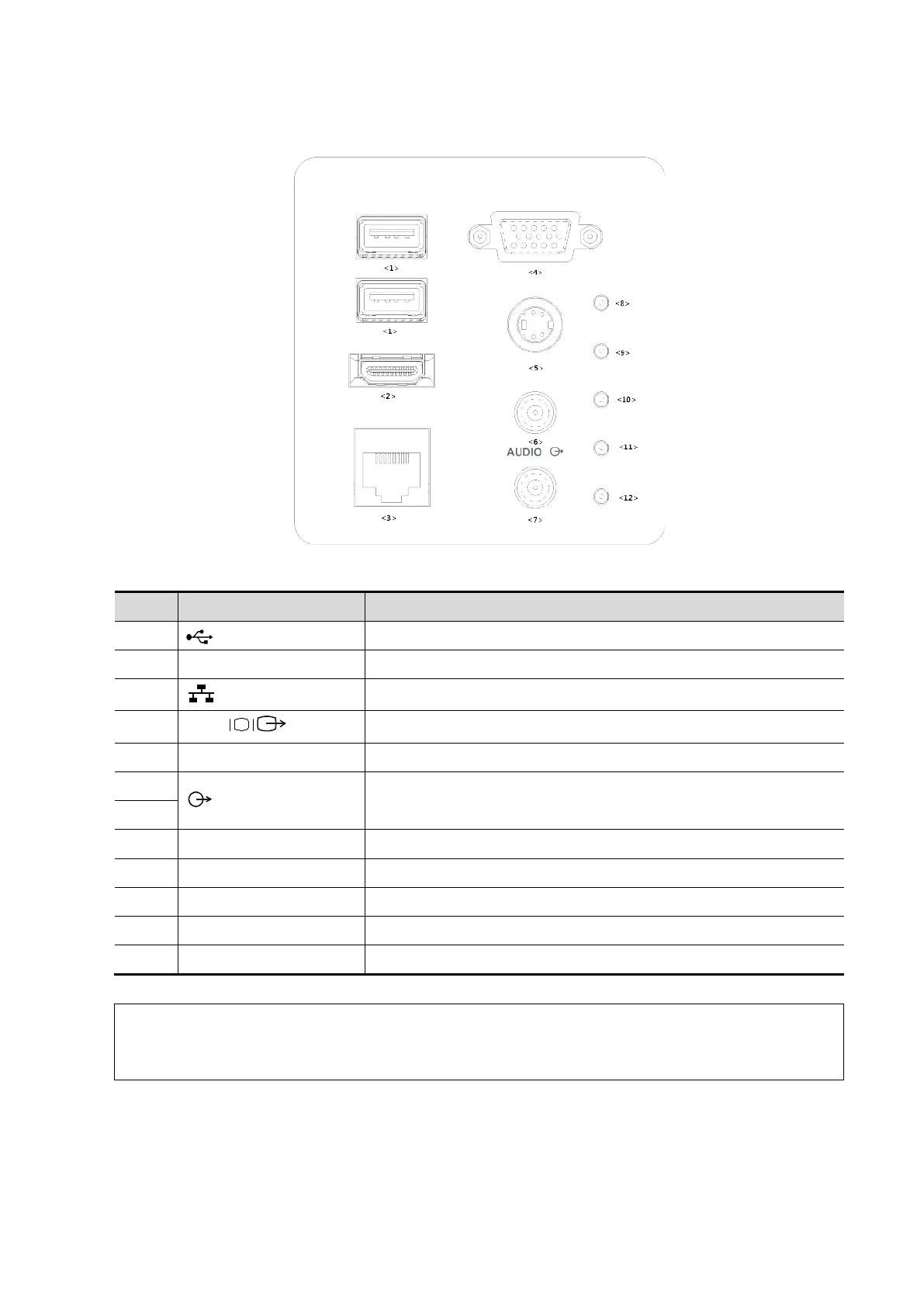

2.1.2.1 I/O panel
No.
Symbol
Function
<1> USB ports.
<2> HDMI High definition multimedia interface.
<3> Network port.
<4>
VGA
VGA signal output.
<5>
S-Video
Used for separate video output.
<6>
Audio signal output port, left channel.
Audio signal output port, right channel.
<7>
<8> / 12V power indicator
<9> / 5V power indicator
<10> / 3.3V power indicator
<11> / LVDS_OK indicator
<12>
/
PHV protection indicator (reserved)
NOTE:
1. The S-VIDEO port performs better with analog video printing.
2. When connecting an external video device (HDMI/VGA), make sure the display
resolution setting is 1280x1024, otherwise the image quality may be degraded.

Mindray DC-70 Specifications

General

Power Supply	100-240V AC, 50/60Hz
Imaging Modes	B-mode, M-mode, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler
Probes	Convex, Linear, Phased Array, Volume
Connectivity	USB, Ethernet, VGA
Advanced Features	3D/4D Imaging
Applications	Abdominal, Obstetrics, Gynecology, Cardiac, Small Parts, Vascular, Musculoskeletal, Urology
Weight	Approx. 85 kg
Operating System	Windows-based
