Mindray DC-80 User Manual

5-42 Image Optimization
5.10.3 Static 3D
Static 3D provides single frame image acquisition of 3D images. During the scanning, the probe
performs the scanning automatically.
Only probe D7-2E, D8-2E, D6-2NE, DE10-3E and DE11-3E support Static 3D imaging.
5.10.3.1 Basic Procedures for Static 3D Imaging
To perform Static 3D imaging:
1. Select the appropriate probe and exam mode. Make sure there is sufficient gel on the probe
for scanning.
2. Obtain a 2D image.
Make sure:
 High contrast between the desired region and the AF (amniotic fluid) surrounded.
 Clear boundary of the desired region.
 Low noise of the AF area.
3. Press to enter Static 3D mode, and define the ROI as well as curved VOI.
Methods to adjust the ROI:
 Under acquisition preparation status: Roll the trackball to change the ROI size, position
and curved VOI, press the right <Set> key to toggle among setting the ROI size, position
or curved VOI. Press the left <set> key to adjust VOI angle.
 Enter touch screen mapping mode. See Chapter 3.7.4 Touch Screen Display and
Operation for details.

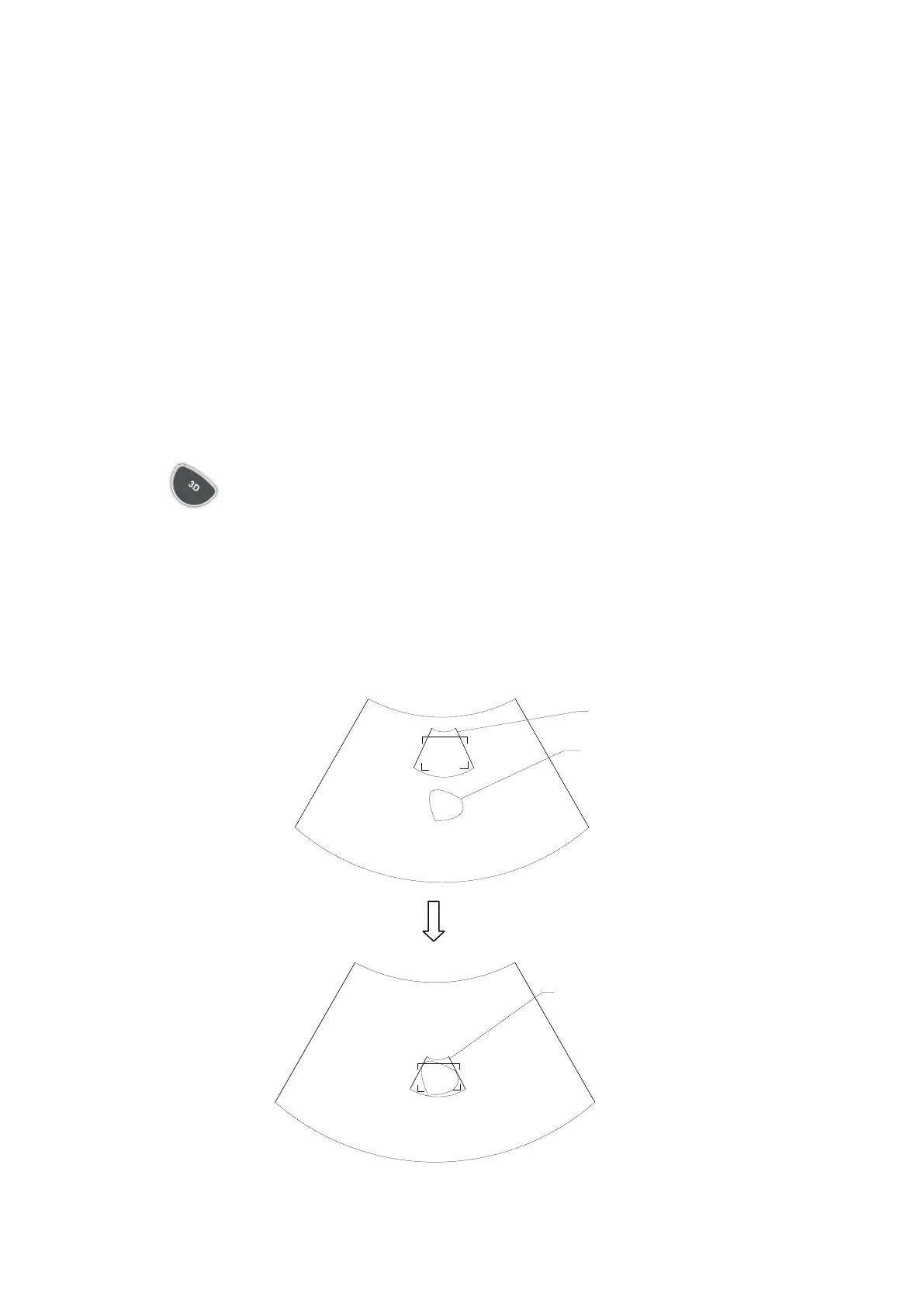

Draw a circle on the desired area. Move ROI over the circle to adjust the size and
position of ROI. Roll the trackball or press <Set> to adjust ROI.
ROI
Draw a
circle here
ROI cover
this area
