Mindray DC-80 User Manual

5-50 Image Optimization
 Function:
Adjust the zoom factor of 3D image, the section images will be zoomed in/out accordingly.
 Operation:
Switch the current window to 3D window. Rotate <Zoom> to change the magnification factor.
 Range:
0.2 – 4 times.
Sync
This function is to switch the view direction which is perpendicular to the current active plane, so
as to get a better observation of VR.

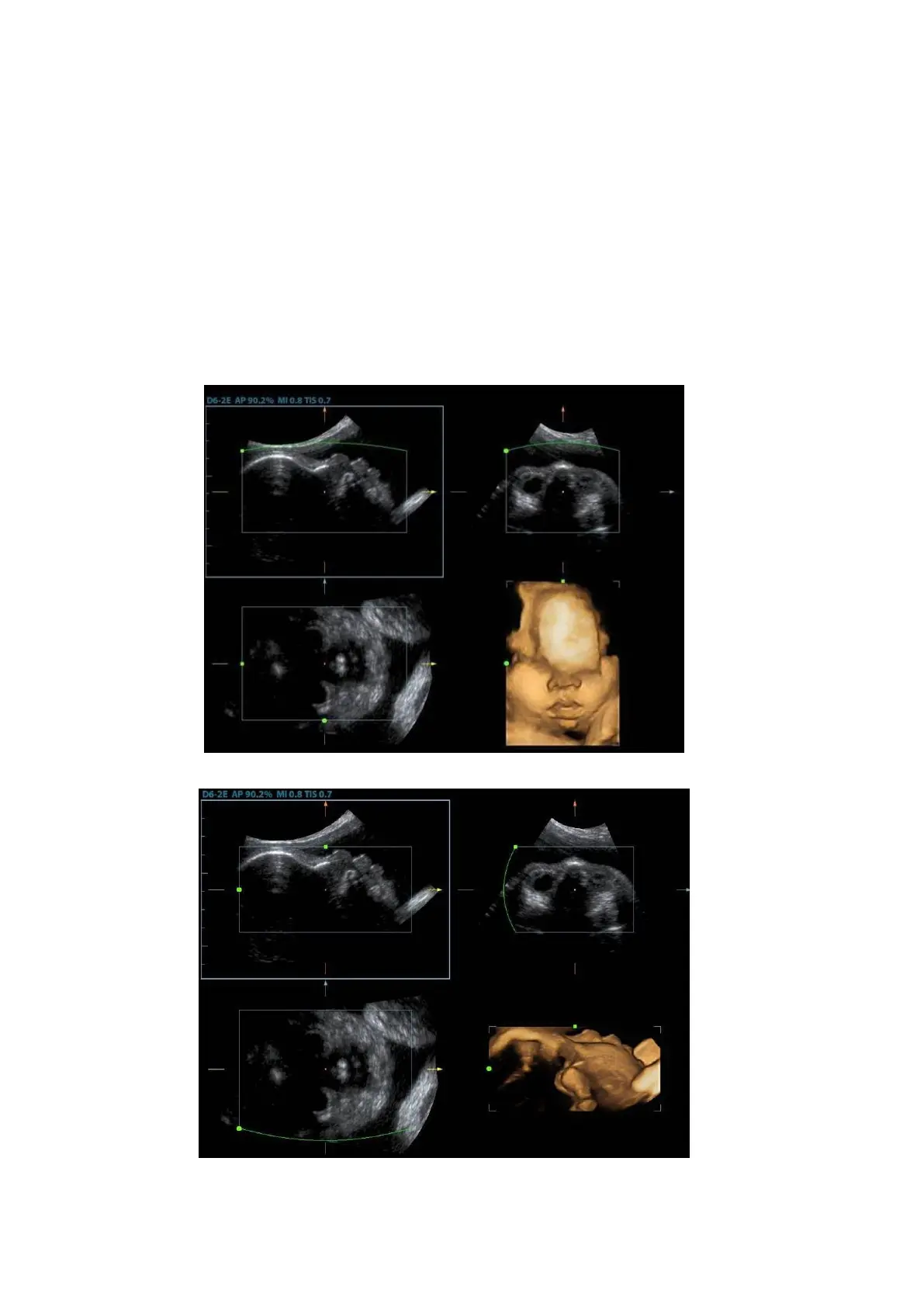

In the following graph, the current active plane is MPR A and after performing Sync on Figure A,
you can see a same fetal face profile in VR.
Figure A
Figure B

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
