Mindray DC-80 User Manual

Image Optimization 5-71
5.10.12.1 Operation Controls

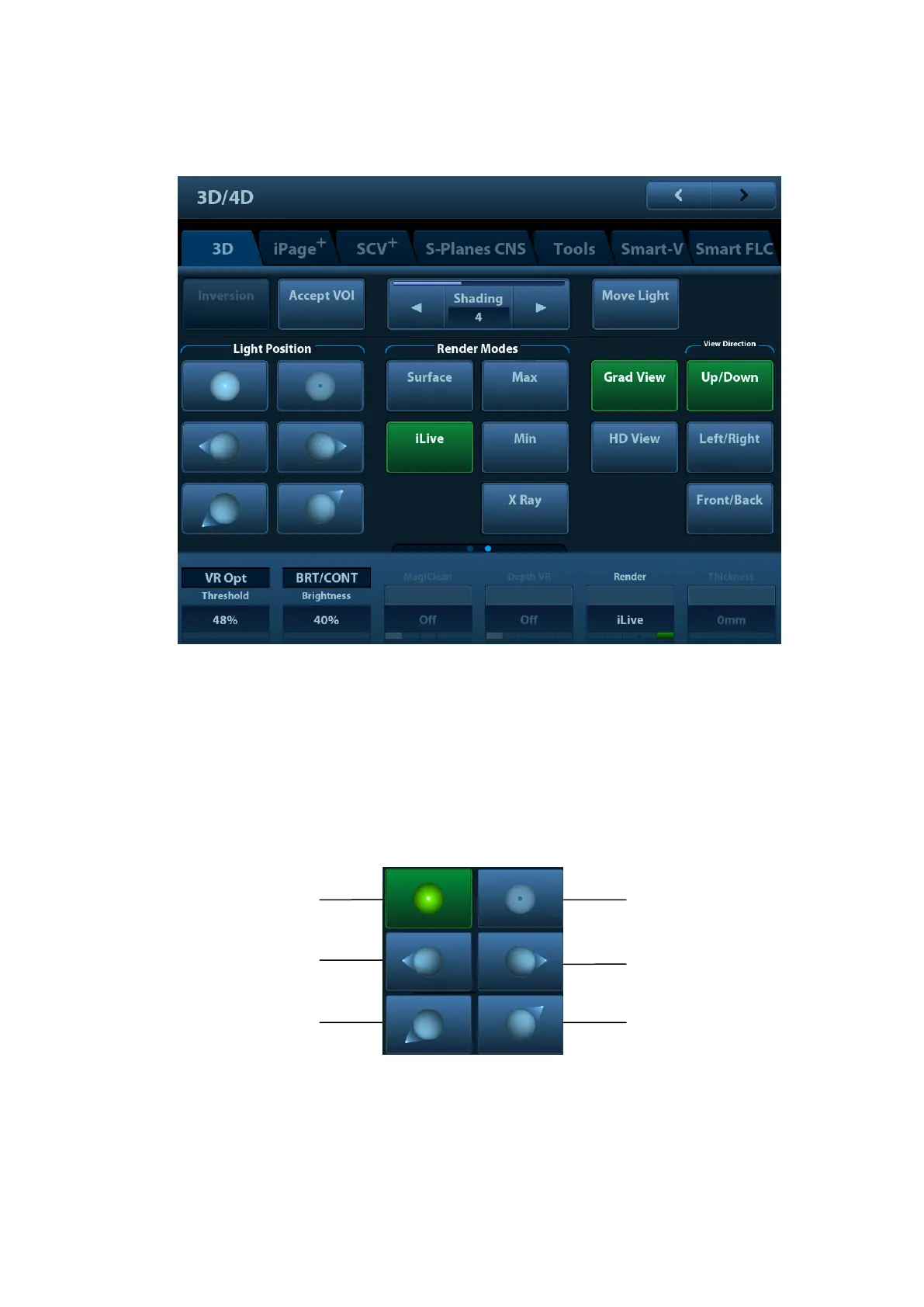

Adjustable parameters for iLive are placed on the second page of the touch screen.
 Shading
Adjusts the effect of shadowing and scattering. When the level is selected as 0, the rendered
image will be bright and sharp, and the border of shadow will be clear while the extent of shadow
will be relatively small. As the level increases, the rendered image will become warmer but the
details remain the same. Also, the border of shadow will be smoother while the extent of shadow
will be large
 Light source adjustment
This function is to adjust the position of the light source as VR is considered.
 Select the direction by touching the buttons under ―Light Position‖ box.
 You can also make fine adjustments after touching [Move Light] and roll the trackball to
adjust.
 Grad View
After this function is activated, VR details will be revealed and enhanced.
Other operation controls and adjusting methods are similar to those under 3D/4D mode.
At the front
On the left
On the upper
right
On the right
In the back
On the lower
left

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
