5-130 Image Optimization

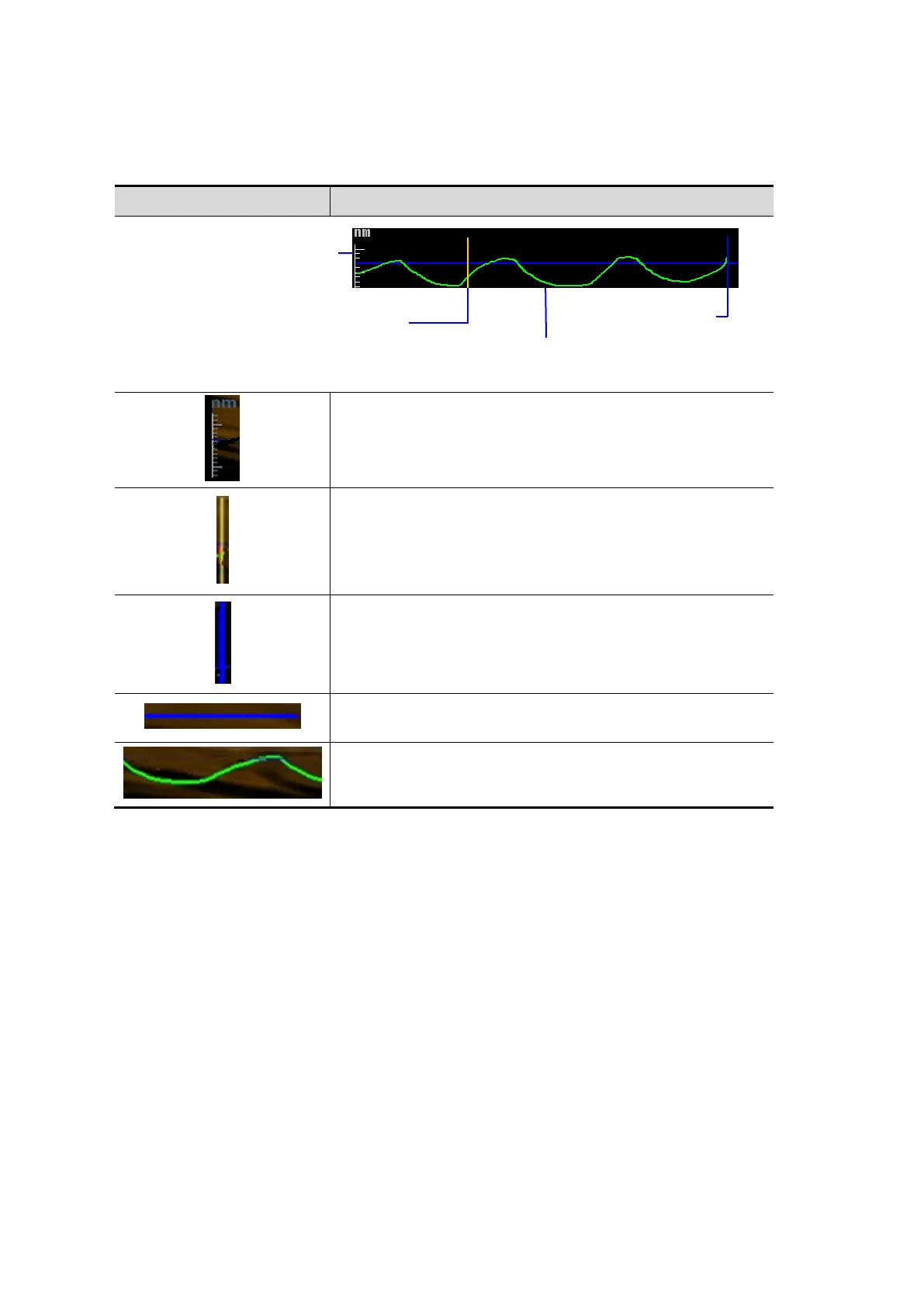

Respiration Curve Description:
Curve
Description
Respiration Curve Scale (respiration depth).
Set Modeling start (start point of motion modeling of the
respiration curve).
Set Modeling End (end point of motion modeling of the
respiration curve).
The blue curve is the respiration depth at last registration.
The green curve is the respiration depth in real-time
respiration.
3. Tap [Set Modeling ROI] to highlight it (it is activated by default). Move the trackball to set ROI
position and size.
Set ROI position and size. Envelope the liver with the ROI.
Press <Set> again to adjust ROI position and size, and to set the start frame and end frame of
the motion modeling.
Set Modeling start
The respiration depth in
real-time respiration
Respiration Curve Scale
Set Modeling End

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
