Mindray DC-80 User Manual

5-132 Image Optimization
Operation
Rotate the knob beneath [Resp Range].
Respiration curve scale and the unit appear on the right-axis.
5.16.8 Contrast Fusion Imaging
Contrast Fusion Imaging increases the possibility of diagnosing the difficult lesions in the pre-
operation; improves the accuracy to ablating the lesion in the intra-operation; estimates the
therapeutic effect of the target in the post-operation.

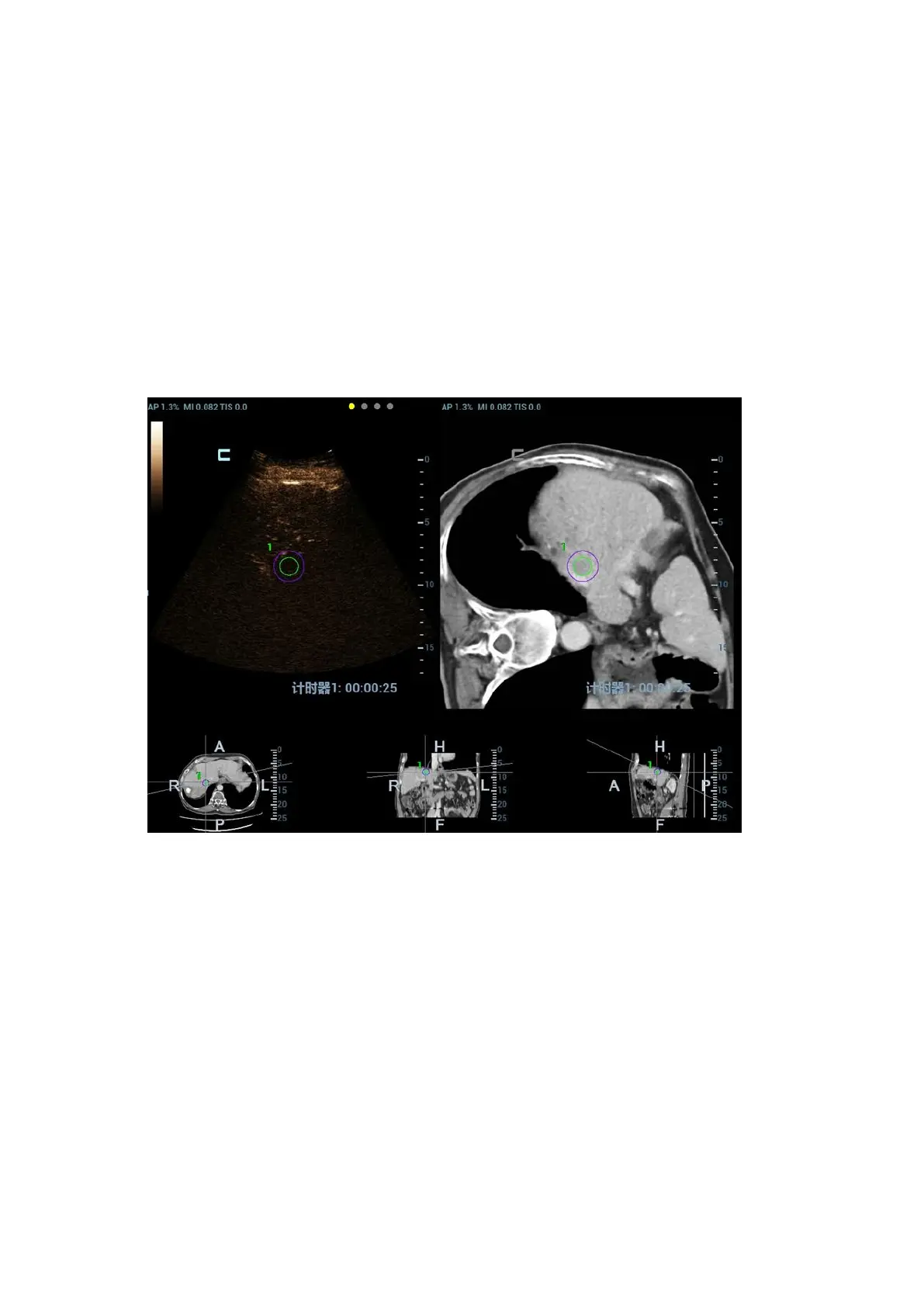

1. Tap [Contrast] to enter Contrast Fusion Imaging after the Fusion Imaging is registered.
Set fusion ratio. Adjust the display ratio of two split windows that the contrast image registers
with CT/MR image.(See also Chapter 5.16.9 Parameter Setting).
2. Contrast Fusion Dual Live:
Select [Contrast][Dual Live] to adjust the fusion ratio. Adjust the display ratio that tissue
image registers with CT/MR image (see Window 1 and window 2). Adjust the display ratio that
contrast image registers with CT/MR image (see window 3 and window 4).

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
