Mindray DC-80 User Manual

D-4 iWorks (Auto Workflow Protocol)
2. Select the necessary protocol and the system adds the protocol events to the current protocol.
3. Perform measurements or add comments/body marks to the image if necessary.
D.8 iWorks Setting
Enter the iWorks preset screen through the path: ―[Setup]→[iWorks]‖. Here you can customize the
protocols and views:

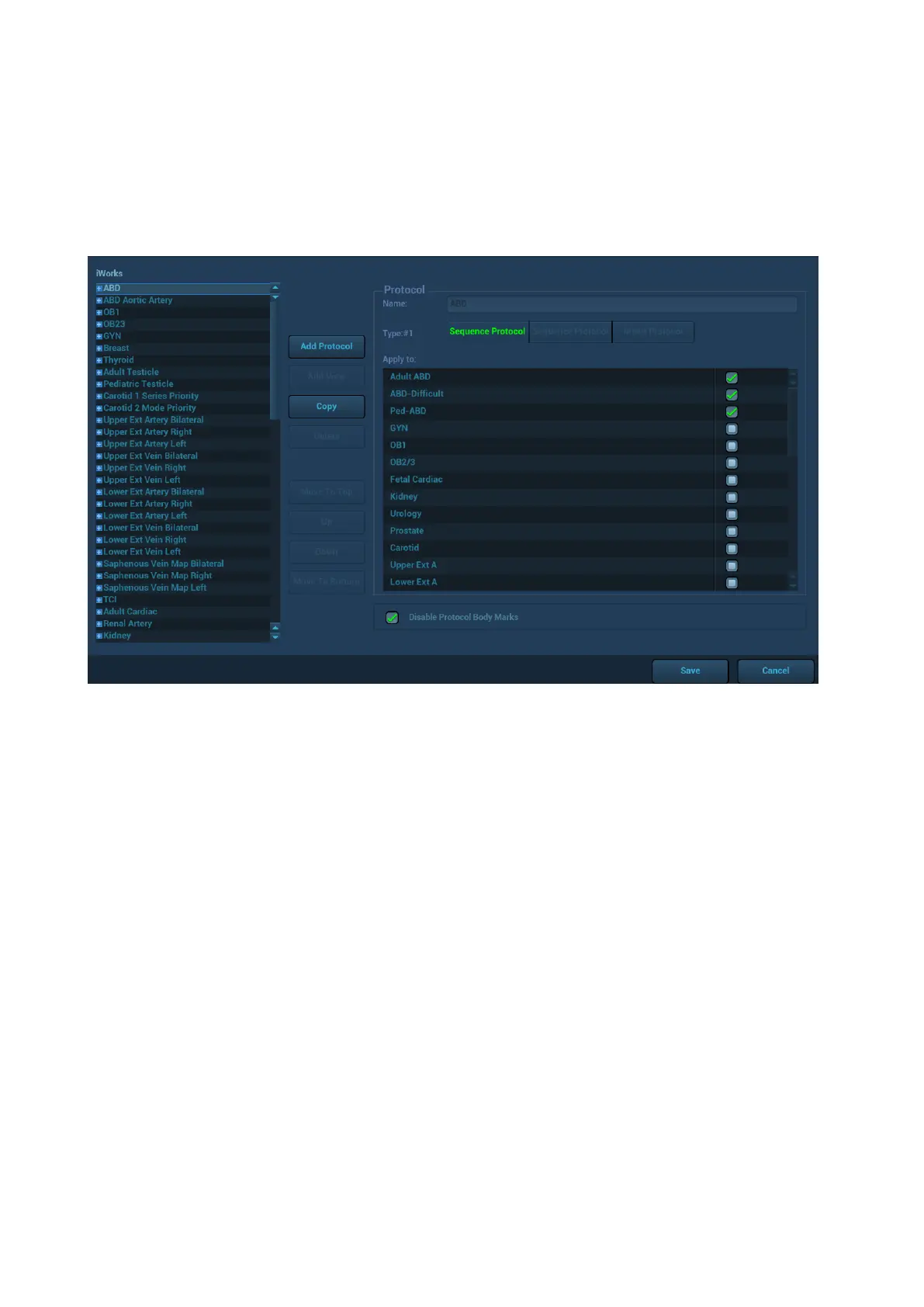

D.8.1 Protocol Management
 Click to select the protocol in the list. The protocol type can be checked on the right. Check to select
applied exam modes in the ―Apply to‖ column.
 Click [Add Protocol] to create a new protocol. It can be customized.
 Click to select a protocol in the list on the left and click [Copy]. A protocol named ―copy of XXX‖ is
created with the copied views, which can be customized.
 Click [Delete] to delete a user-defined protocol.
 Click [Up] or [Down] to move the selected protocol.
 Click [Move to Top]/[Move to Bottom] to move the selected protocol to the top or bottom of the list.
D.8.2 View Management
 Click to select the views in the list. The image, annotation, body mark and measurement settings
can be checked on the right.
 Click to select a user-defined protocol in the list. Click [Add View] to add a view template to the
protocol.

Mindray DC-80 Specifications

General

Imaging Modes	B, M, Color Doppler, Power Doppler, Pulsed Wave Doppler, Continuous Wave Doppler, Tissue Doppler, 3D/4D Imaging
Probes	Convex, Linear, Phased Array, Volume
Advanced Features	Auto Optimization, Auto EF
Connectivity	DICOM 3.0, USB, HDMI, VGA, Ethernet
Transducer Ports	4
Applications	Abdominal, Cardiac, Obstetrics/Gynecology, Vascular, Small Parts, Musculoskeletal, Urology, Pediatrics, Neonatal
Transducer Types	Convex, Linear, Phased Array, Volume
Power Supply	100-240V AC, 50/60Hz
Operating Temperature	10°C to 40°C
Storage Temperature	-20°C to 60°C
Humidity	30% to 80%
